Atomos Ninja V NA-NinjaV Nauticam

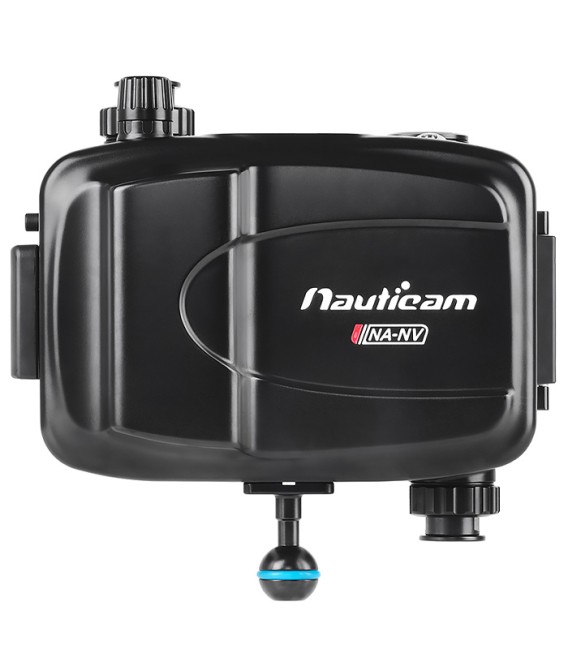

The Nauticam NA-Ninja V builds on the strong foundation Nauticam has built with previous Atomos monitor/recorder housings but is built around the new M28 large-bore bulkhead that supports HDMI 2.0.

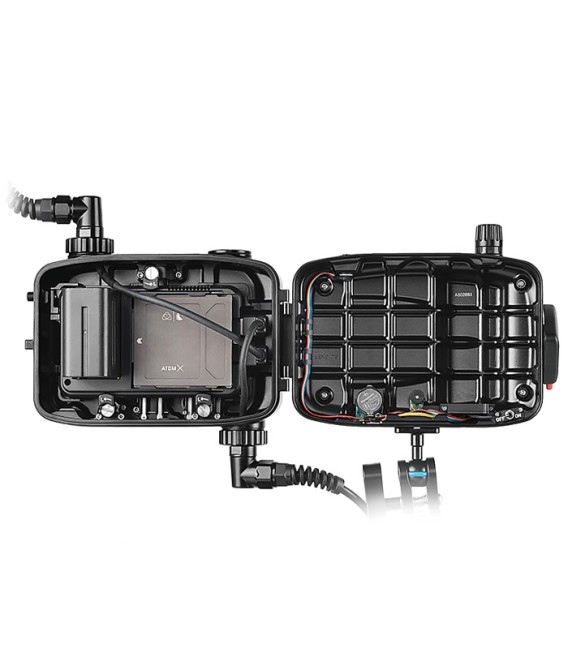

The Ninja V is easily mounted in the housing, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers.  The Ninja V features both an HDMI 2.0 input as well as an output and the NA-Ninja V supports both as well.  With dual M28 bulkheads, a second HDMI cable can be run to another monitor.  The Ninja V allows for the application of. cube format 3D LUTs to this output signal.

The NA-Ninja V supports up to the NP-F970 size battery which provides up to two hours of run time.  A CR-2032 battery powers the vacuum check and leak detection system.  When used with the included Vacuum Valve, the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing.

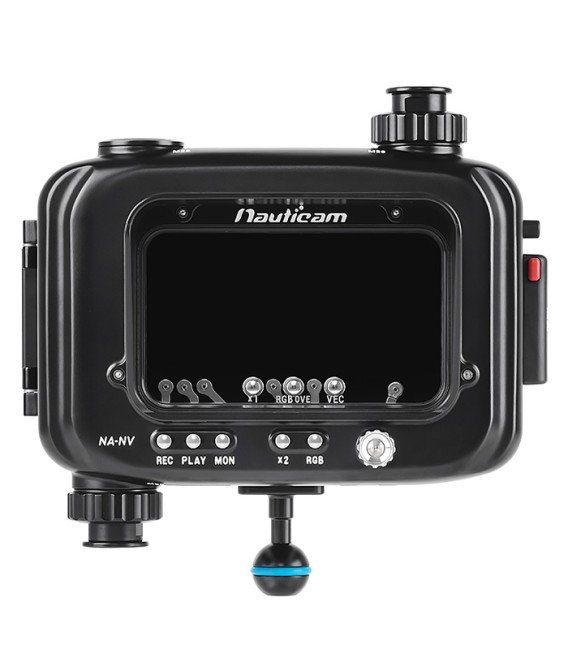

 Access to the touchscreen controls of the Ninja V are handled via a series of buttons and a selector knob beneath the screen of the housing including PLAY, REC, MON, RGB, PEAK and the Muti-Selector Lever.

VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system, and vacuum valve, is included in the Shogun Housing as standard equipment.  This monitoring system provides constant updates on the water tight and safe-to-dive status of the housing.

HDMI 2.0 BULKHEAD

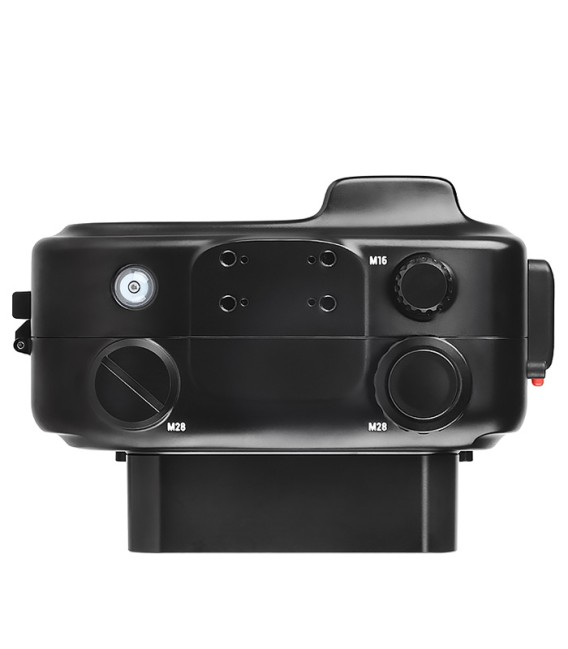

The dual M28 bulkheads of the NA-Ninja V allows high-quality input and output over HMDI 2.0 with supported housings.  An HDMI 1.4 option is also available.

NOTE: HDMI cables for this housing are SOLD SEPARATELY, you can find the appropriate one in the Recommended Accessories section below.

Recommended Accessories:

• 25077 HDMI 2.0 Cable for NA-XT3 Housing
• 25078 HDMI 2.0 Cable for NA-BMPCCII/S1R Housing
• 25079 HDMI 2.0 Cable for NA-GH5V Housing
• 25082 HDMI 1.4 Cable for HDMI Bulklhead

TECHNICAL SPECIFICATIONS
