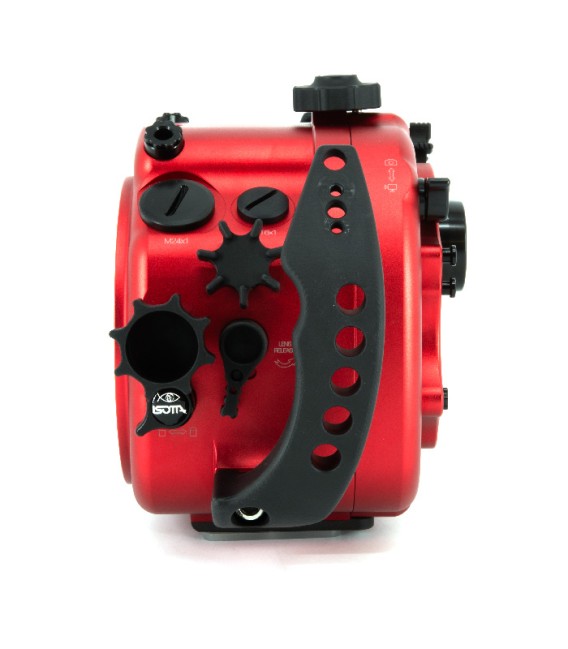

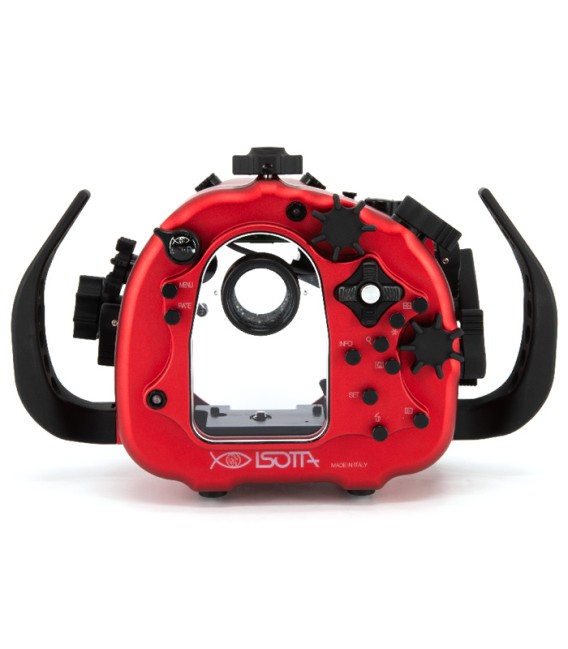

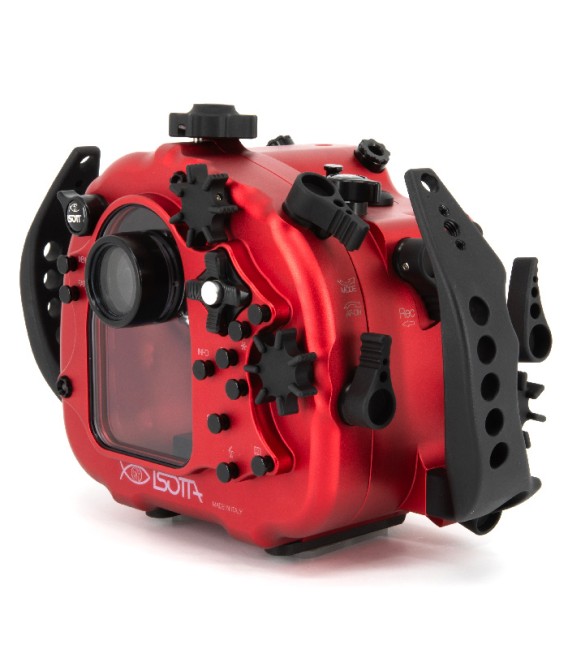

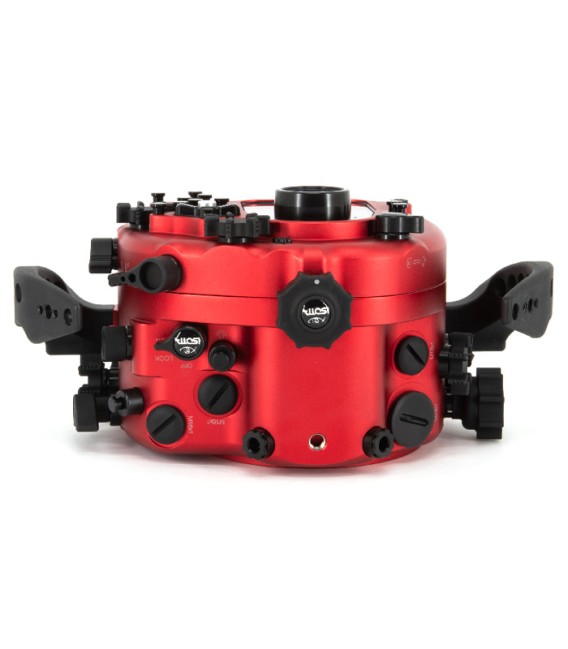

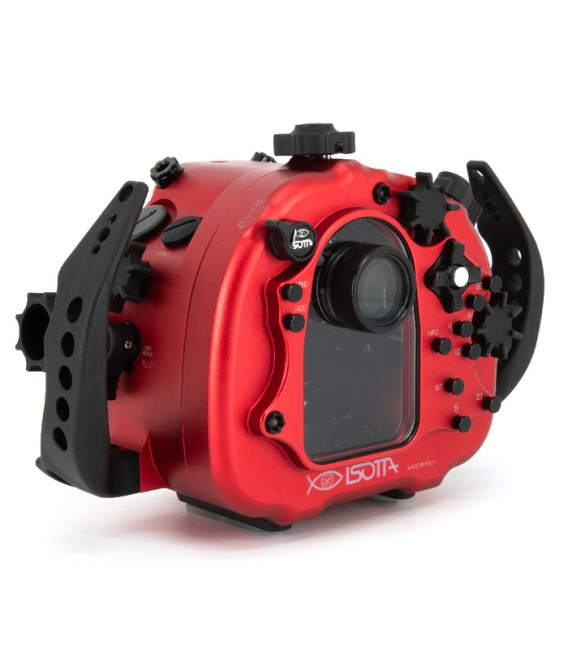

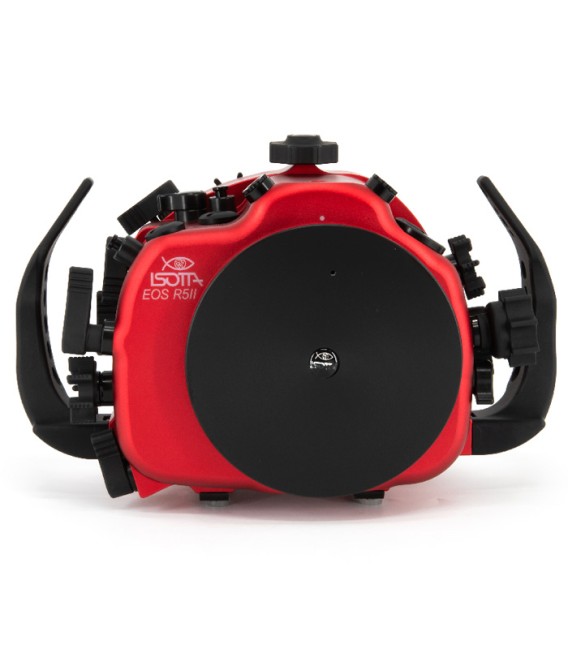

Canon EOS R5 MarkII Isotta

The housing respects all the key points of Isotta's line of housings: one-handed opening, double O-ring seals for greater safety, the use of high quality materials and the made in Italy craftsmanship. The housing was created to follow the lines of the camera, resulting small and manageable, while ensuring complete control of camera functions and absolute freedom in the use of accessories.

MORE AND MORE CUSTOMIZABLE!

Supplied with only the connections for the optical fiber, the housing has been designed with three M16x1 connections and one M24x1 connection, for total freedom in the choice of the conformation of the equipment. When ordering, you can select your preferred lighting control system choosing between Trigger, Sincro N5 or S6 and your right port system. Through the different combinations between ports and extension rings it is possible to use most of the lenses on the market.
Various accessories can be used by means of an M8 hole located at the top of the case and two M6 threaded holes located at the bottom. To make it even more unique, have your name or logo engraved.

SAFETY IS IMPORTANT!
The locking pins on the back are made of stainless steel and penetrate the shell for added strength and security. The housing is made of aluminum, resistant and anti-corrosion, anodized in the unmistakable red color. The classic double o-ring seal is on all moving and removable parts ensures an optimal watertight seal. The camera is held straight, centered and in place by a mounting plate with a safety catch, which slips nimbly into the housing. NNo risk of sudden infiltration. A red humidity alarm inside the case is powered by a user-replaceable battery and instantly signals an increase in humidity in a critical area. Watertightness is guaranteed up to a maximum depth of 100 meters.

Technical data:

• Red color anodized aluminum body;
• Ergonomic side handles, adjustable (via optional accessory);
• Two fiber optic connections standard (to use the flash needs an optional trigger);
• Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead;
• Back housing completely detachable from the front housing;
• Tray with lock for the easy insertion of the camera;
• Single-hand closing knob for the back of the housing;
• Aluminum buttons and dials with engraved symbols identical to camera controls;
• Wide back display viewfinder glass;
• Standard ISOTTA viewfinder;
• Double O-Ring seals on all buttons and removable parts;
• Moisture sensor with LED indicator (replaceable battery);
• Removable port B120 bayonet;
• Safety lock on the porthole to prevent accidental opening;
• Wide, rubber covered feet for solid footing on boat floors or sea floor;
• M8 hole located on upper side of the housing for various accessories such as focus lights;
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
• Prepared for ISOTTA vacuum system (not included);
• External viewfinders can be mounted, INON X-2 compatible;
• Working depth: 100 meters;
• Sizes (LxHxP): 292mm x 186mm x 138mm;

Ports and ball adapters for handles not included.
The bayonet of the Isotta housings are compatible with Sea&Sea ports without the need for adaptations.
If you have ports from other Isotta has adapter rings, ask us for compatibility.
