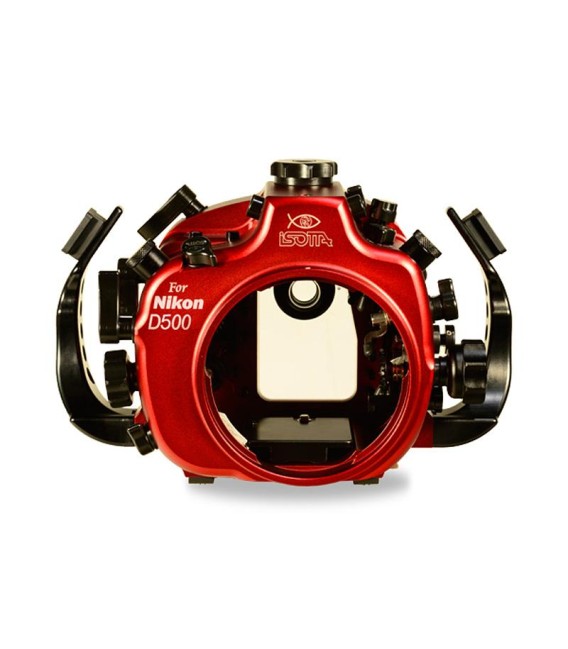

Nikon D500 Isotta

An easy to use, highly professional product has been created through techniques and innovations gained from years of experience. The perfect handling of the Nikon D500 housing is possible by means of adjustable handles crafted to match the human hand and make holding the camera very comfortable even throughout long dives. Easy access to all key/main camera controls by means of clearly labelled laser-engraved longlasting buttons, even with gloves and drysuit gloves. An easy and quick release camera mounting plate allows the camera positioning and a lever locks the tray inside the housing. The back door has a large window anti-scratch glass for a fine camera display and optical viewfinder view and it is entirely detached from the front body to make easier the camera fitting. External viewfinders can be mounted, INON X-2 compatible.

ONE HAND OPEN/CLOSE
The housing for Nikon D500 is closed with Isotta’s single handed one-turn knob. It’s the only single latch closing mechanism in the DSLR housing market. It’s fast, simple and secure thanks to its double steel pins at the bottom of the housing.

PORTS AND EXTENSION RING
A series of ports and extension rings are available in dedicated section. The removable port is fitted thanks to markers and a bayonet 120 mm connection to the Nikon D500. The interchangeable port bodies and extensions rings combine to allow the use of most of lenses on the market for maximum versatility and performance.

TTL CONVERTER FLASH (optional)
The housing for Nikon D500 features TTL Converter Electronics for Automatic flash control. It also offers the possibility to use external strobes via two standard optical light ports (trigger not included) as well as two optional Nikonos N5 or S6 sync cord bulkheads. This allows for easy mounting of any strobe and lighting set up.

CONSTRUCTION AND SAFETY
Only the best materials are used to manufacture our housings such anodized aluminum which is anticorodal and thermo-coated and stainless steel. A longlasting product that requires easy and simple maintenance by the user. So small and so rich in technology! Dual high-quality O-Ring seals protect and ensure a perfect and secure watertight for all movable and / or removable parts; a red alarm for humidity/water inside the housing is powered by a battery replaceable by the user. Working depth is 100 metres. Different accessories can be fitted by means of an M8 hole positioned on the upper side of the housing and double threaded M6 holes located on housing bottom side.

TECHNICAL DATA:

► Aluminium body, anodized, anti-corodal, red thermo-color;
► Ergonomic side handles, adjustable (via optional accessory);
► Two electrical bulkheads and two optical fiber bulkheads, located on top of housing;
► Choice between full manual strobe mode, or one strobe in TTL mode and one in manual mode;
► Back housing completely separable from the front housing for a greater comfort to inserting the camera;
► Double tight O-ring, placed in every mobile and removable part, ensure an excellent watertight seal;
► Inserting using a tray that is mounted on the bottom side of the camera, comfortably screw/unscrew with finger; the tray slides on two rails into the front housing;
► Lock on the tray for permanent positioning Moisture indicator with easily visible red LED signal light, battery easily replaceable by the user;
► All main controls allow full manual mode. Controls are easy to be used even with gloves, well spaced inbetween to avoid unwanted control;
► All controls are engraved with the function symbols;
► Wide back viewfinder glass for an excellent view of the display;
► Outside ocular set with the camera ocular;
► Build outside viewfinder allow;
► Two M6 holes located on housing bottom side for different accessories such as brackets for strobes and video lights;
► One M8 hole located on upper side of the housing for various accessories;
► Interchangeable porthole with the new innovative porthole release;
► Compatible with Isotta ports;
► Compatible with other brands of ports by means of optional adapter rings;
► Single hand turning lock connecting front and back housing;
► Deep rated: 100 m;

MEASURES WITH HANDLES

Dimension: 235 x 205 x 145 mm. (w x h x d);
Air weight: 2,740 Kg.;

Ports and ball adapters for handles not included.
The bayonet of the Isotta housings are compatible with Sea&Sea ports without the need for adaptations.
If you have ports from other Isotta has adapter rings, ask us for compatibility.
