Panasonic Lumix GX7 NA-GX7 Nauticam

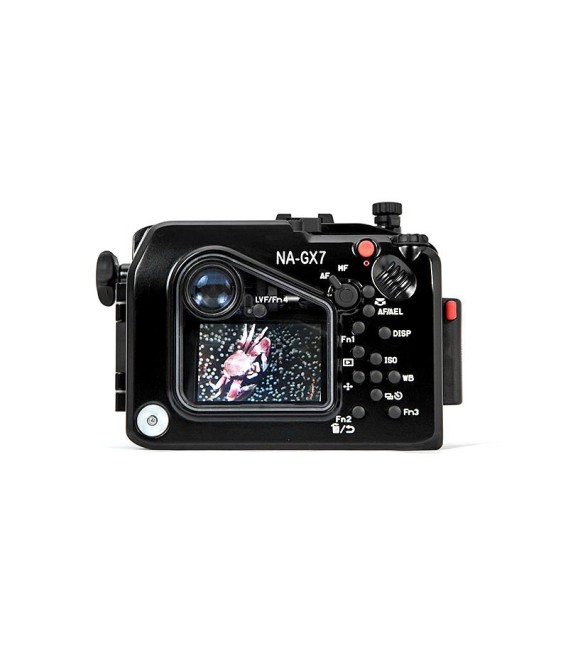

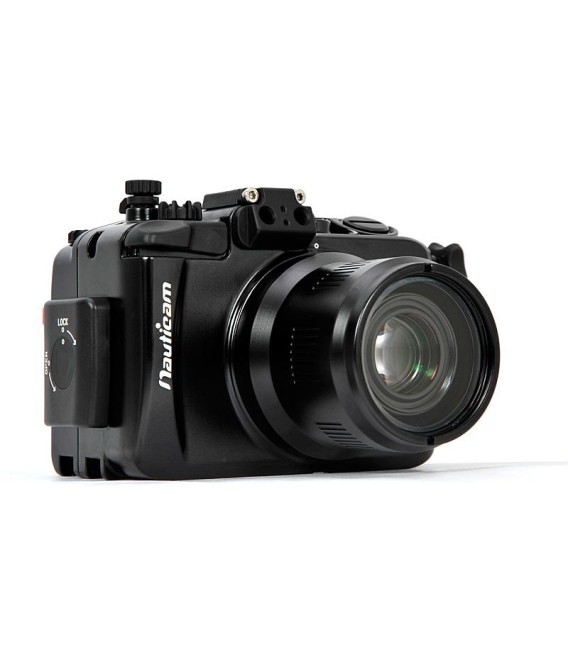

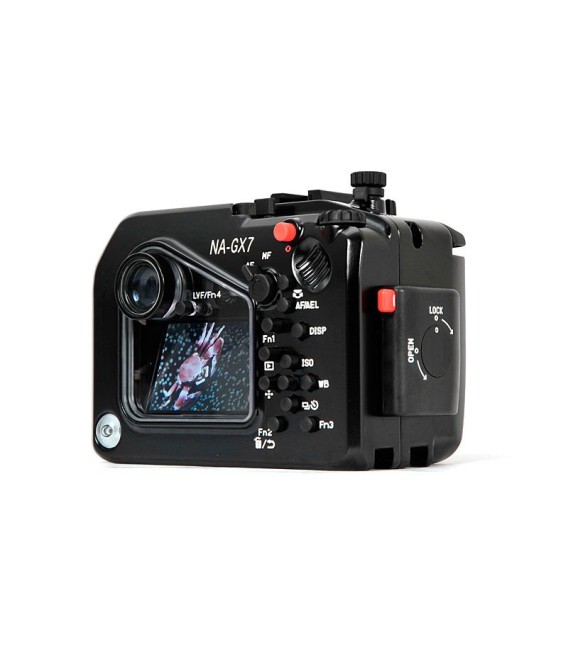

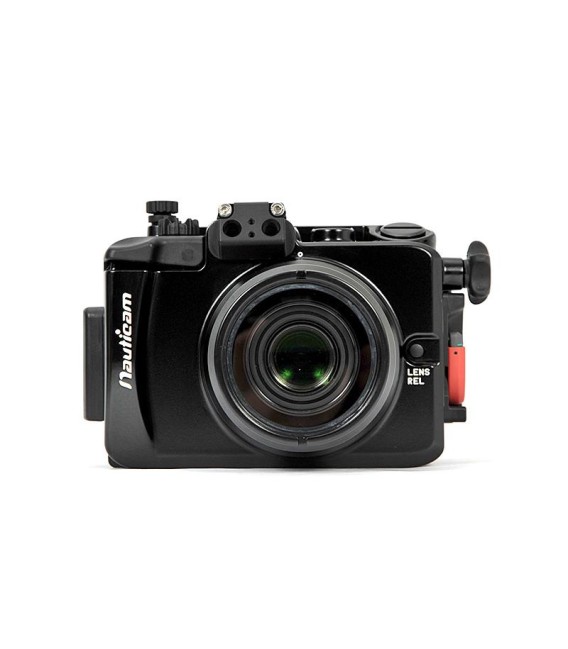

This philosophy is in full evidence on the compact, but impressive new NA-GX7. The pioneering features of the earlier Nauticam housings are apparent with the simple but secure rotating housing latch and superb progressive shutter release providing optimal “feel”. The NA-GX7 also sports some of Nauticam’s latest technology with the re-designed port locking latch that replicates the famous Nauticam DSLR port latch – making housing port changes easier than ever. Nauticam’s ground breaking integrated vacuum check and leak detector circuitry now comes standard. The new housing takes full advantage of the Panasonic’s many features and allows easy one handed operation of both command dials, video recording and EV control. The ability to activate or lower the GX7’s built in flash is immediately accessed by the left thumb to rapidly switch from optically triggered strobes to ambient light photography. The tilting LCD display is canted in housing for ideal in-water observation.

The extreme programmability of the GX7 is embraced with Fn1-4 all available in the housing. The superior video function that Panasonic is famous for is instantly accessible on the NA-GX7. Camera and housing provide an ergonomic powerhouse that will please the most critical Micro 4/3 shooter.

With the GX-7, Panasonic has introduced a camera that will challenge the best the mirrorless camera market has to offer. Nauticam has created the only underwater housing that is equal to that challenge.

LENS SUPPORT

Nauticam believes that every lens that makes sense to be used underwater should be supported, and the existing lineup of ports for m4/3 lenses is extensive. Nauticam carefully evaluates new lenses, and is often first to market with support when a new lens is offered. One of the advantages of the m4/3 system is that lenses from both Olympus and Panasonic can be used, and between the two, an excellent selection of lenses for underwater use is available, from the Panasonic 8mm fisheye to the Olympus 60mm macro.

Examples of supported lenses for GX7

Panasonic Lumix G Fisheye 8mm F3.5
Panasonic Lumix G Vario 14-42mm F3.5-5.6 ASPH Mega OIS
Panasonic Lumix G X Vario PZ 14-42mm f/3.5-5.6 Power OIS
Panasonic Lumix G Vario 7-14mm F4 ASPH
Panasonic Lumix G X Vario 12-35mm F2.8 ASPH Power OIS
Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH. MEGA O.I.S.
Panasonic Leica Summilux DG 25mm F1.4
Olympus M.Zuiko Digital 14-42mm 1:3.5-5.6 II
Olympus M.Zuiko Digital 14-42mm 1:3.5-5.6 II R
Olympus M.Zuiko Digital ED 12-40mm 1:2.8 PRO
Olympus M.Zuiko Digital ED 12-50mm 1:3.5-6.3 EZ
Olympus M.Zuiko Digital ED 12mm 1:2
Olympus M.Zuiko Digital ED 9-18mm 1:4.0-5.6

ACCESSORIES

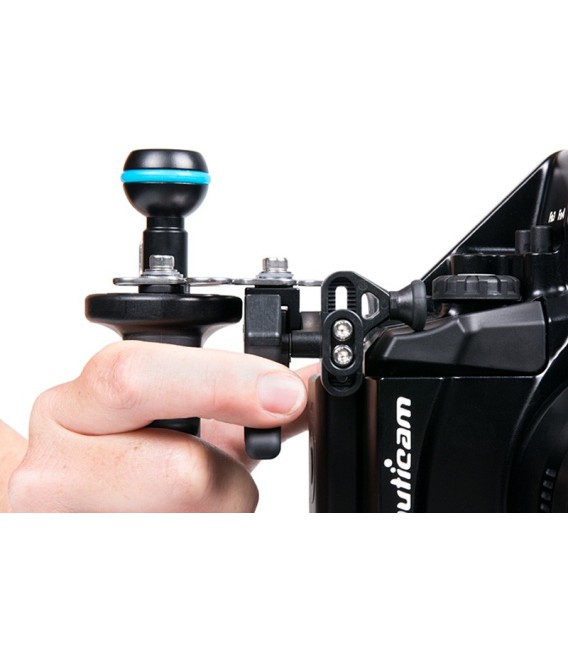

Nauticam supplies a wide range of optional accessories that make the rig very customizable. For example, Nauticam’s NA-DP4 housing for the Small HD DP4 Monitor can take video performance to another level by rendering the video image in a position more amenable to the shooter. The monitor housing easily mounts to the top of the NA-GX7 and utilizes the optional HDMI Bulkhead for true HDMI connectivity. Utilizing DP4 features like Focus Peaking, Focus Assist, False Color, 1:1 Mapping and more, this larger monitor vastly improves composition, focus capability and exposure. Nauticam produces a “straight” 180º enlarging viewfinder and a 45º angled enlarging viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high quality optics that allow viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in less than 30 seconds without using tools. Exceptional composition and focus accuracy have never been more accessible.

TECHNICAL SPECIFICATIONS

Depth Rating: 100m

Weight: 1.08kg

Dimensions: 193mm (W) × 128mm (H) × 99mm (D)
