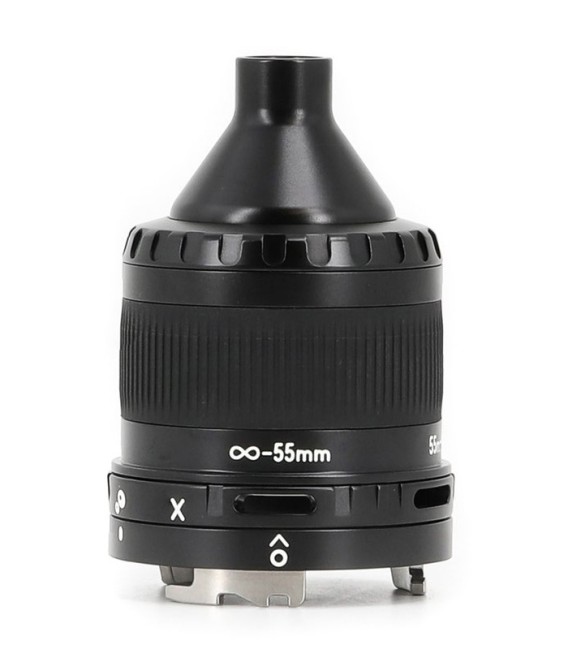

Nauticam 60º EMWL Lens

Nauticam EMWL Objective lens with 60º coverage.

The EMWL has been designed to work with various macro lenses and is optimized for photography and video. This lens allows you to shoot macro, wide angle and combine the styles to take macro-angle shots.

It is a wet mount design, so the lens can be attached and removed underwater. This increases the versatility of the entire system. It is a modular design with three individual parts that make up the EMWL: the Focusing Unit, the Relay Module and the Objective Lens.

For a narrower angle-of-view or if you would like the background elements to look more compressed, than the 60° objective lens is the perfect choice. It is designed with 9 elements in 6 groups. There are three focusing ranges that can be set on the lens, ∞-55mm, 55-25mm and 25-15mm. I would suggest setting it to the ∞-55mm setting and adjust to one of the closer settings when working extremely close to a subject. The closer setting work similar to an extension tube by moving the lens further away from the sensor.

Technical specifications:

- Diameter x length: 62.0 X 97.0mm
- Air / Water Weight: 378 / 260g

The focus unit is required to mount the EMWL 60º, available for Nikon, Micro 4/3, Canon, Sony and Fujifilm lenses.

Ref. 87201: Nikon and Micro 4/3 - Compatible with Nikon AF-S VR Micro Nikkor 105mm f / 2.8G IF-ED and Olympus M.Zuiko Digital ED 60mm f2.8 Macro.

Ref. 87202: Canon: compatible with Canon EF 100mm f / 2.8L Macro IS USM and Canon EF-S 60mm f2.8 Macro USM for APS-C

Ref. 87203: Sony - Compatible with Sony SEL90M28G FE 90 mm F2.8 Macro G OSS

Ref. 87205: Fujifilm - Compatible with Fujifilm GF 120mm f / 4 Macro R

Between the EMWL 60º lens and the focus unit, the inverter unit Ref. 87211 can be installed to obtain the right image. The EMWL can be used without the inverter unit but without this unit you will get an inverted image. The overall length of the EMWL will be approximately 6.5 inches (164.5 mm) shorter.
