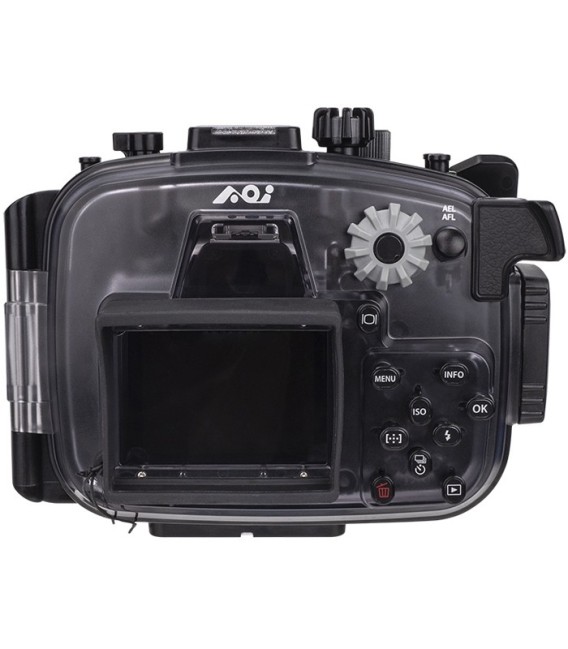

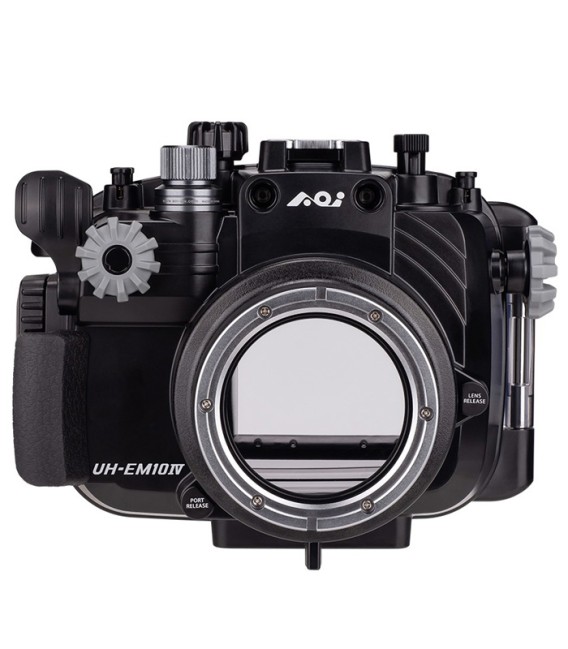

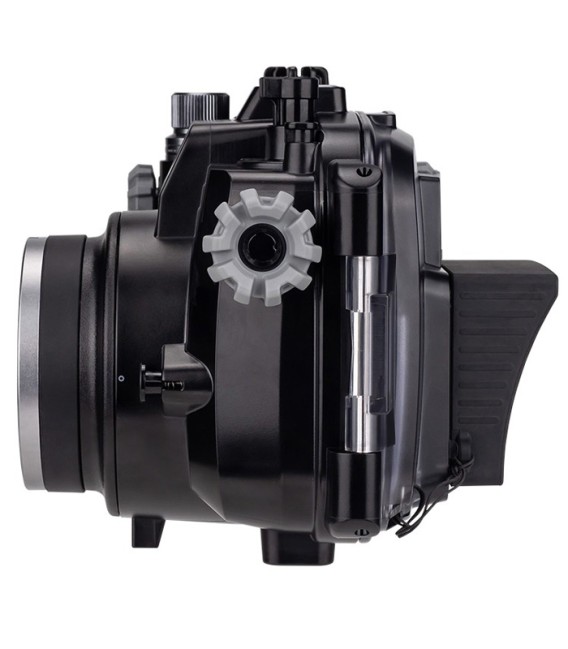

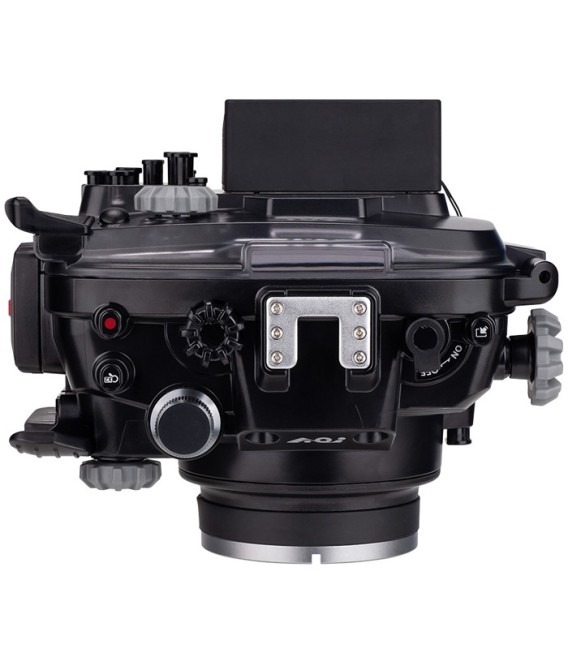

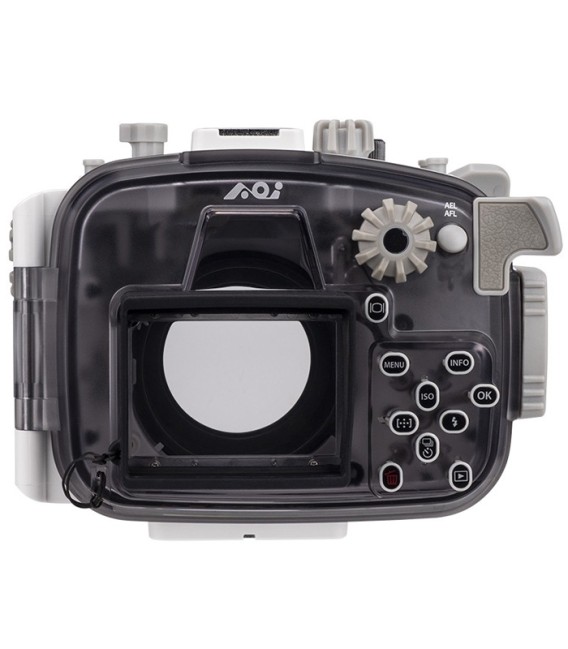

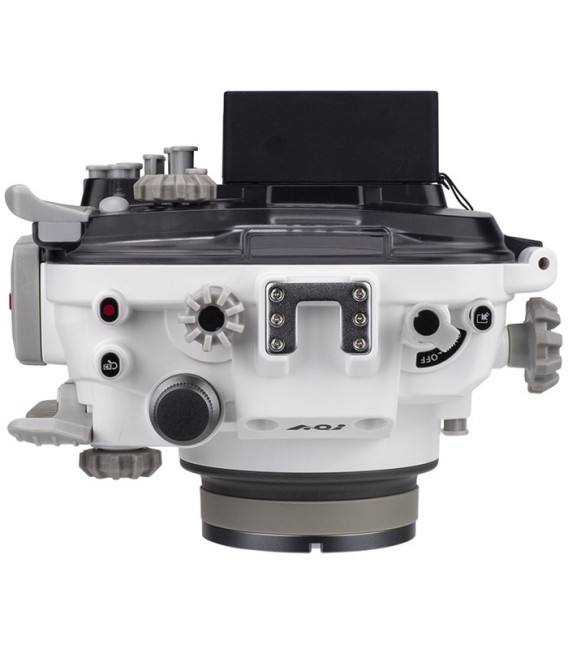

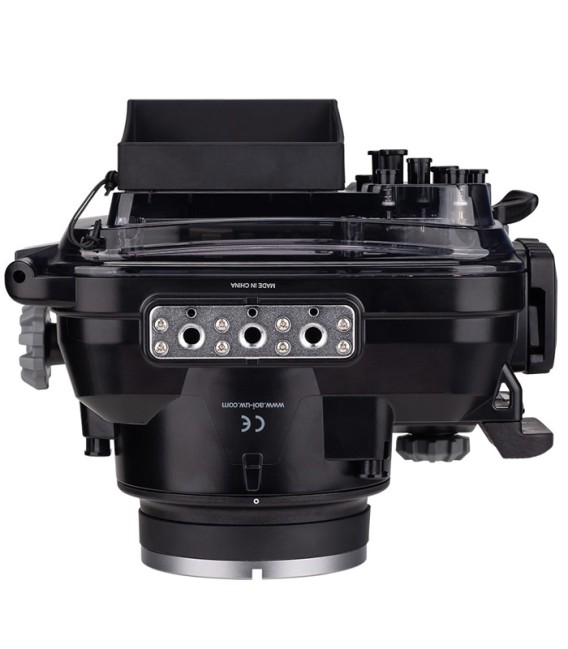

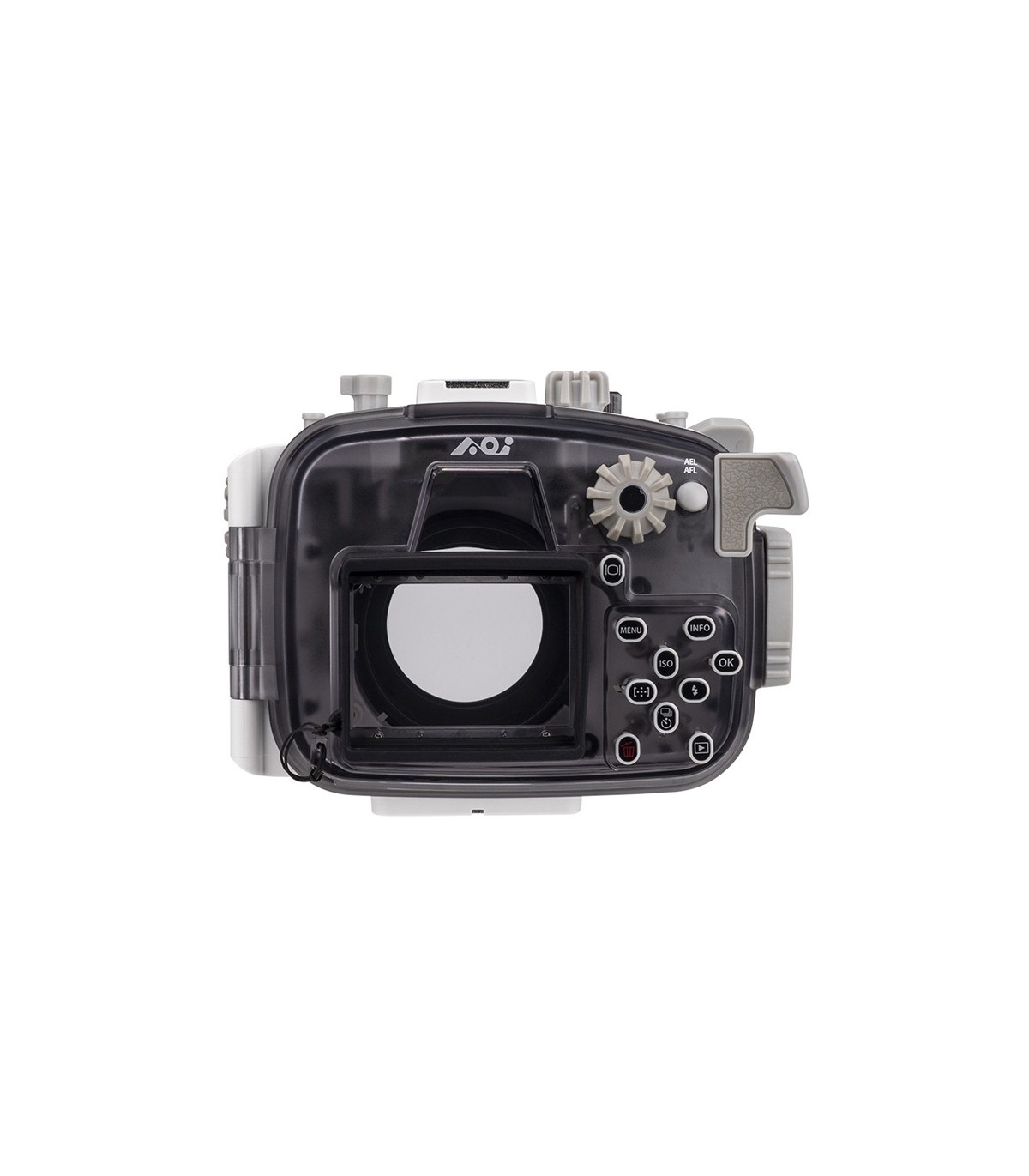

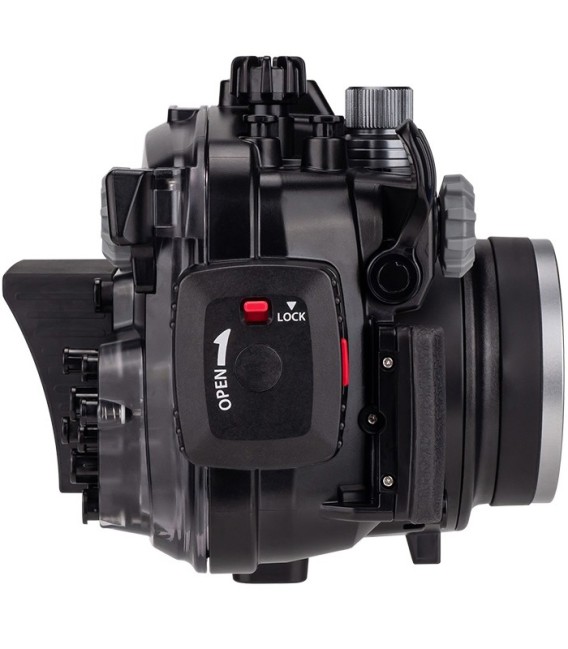

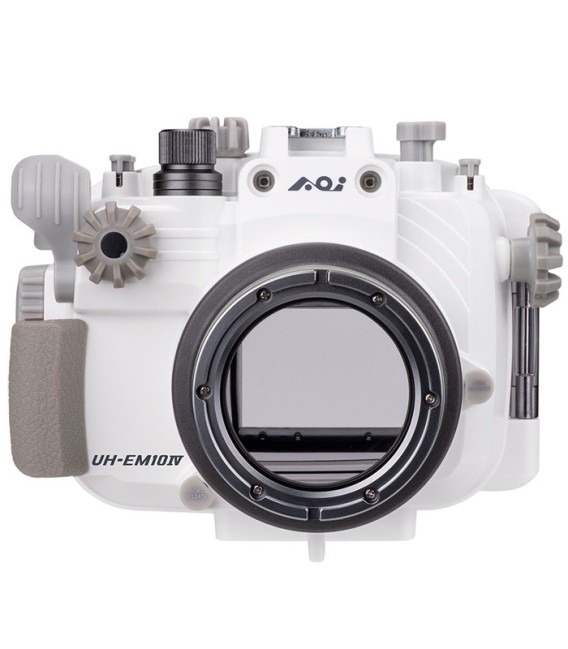

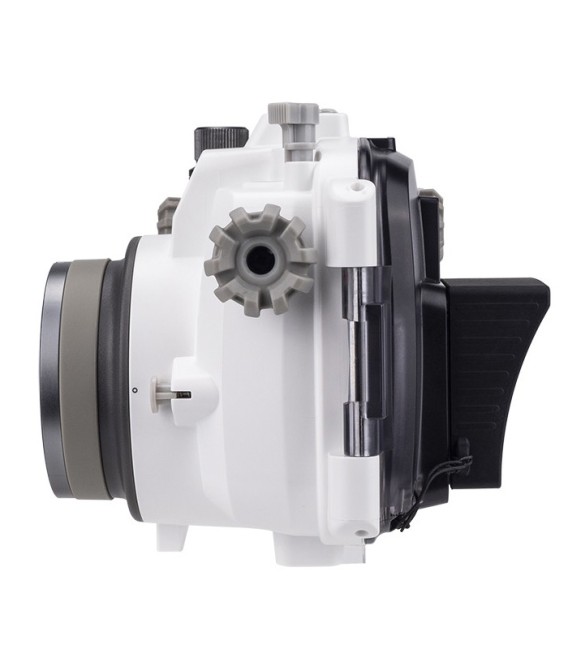

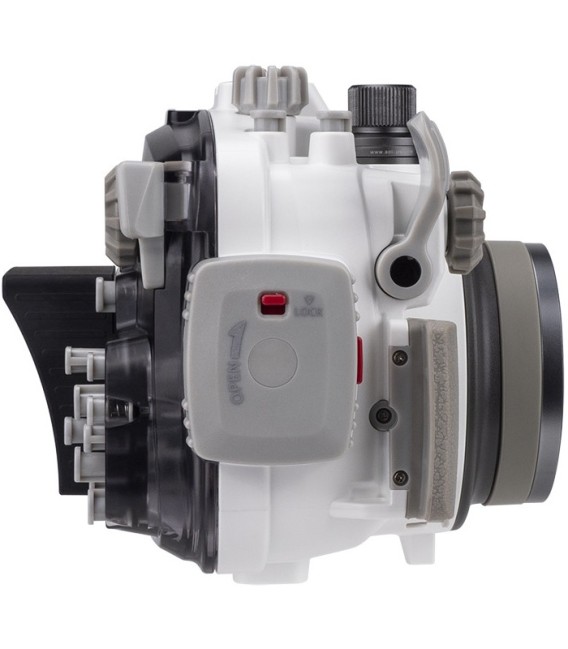

AOi housing Olympus E-M10 IV (AVAILABLE ONLY ON REQUEST)
The AOI UH-EM10 IV housing is specifically designed for the Olympus OM-D E-M10 Mark IV camera.
Made of highly resistant polycarbonate is submersible up to 45 meters deep.
The housing includes an internal LED trigger with connection to the camera's hot shoe to trigger external strobes with fiber optic cables, thus extending the working time of the camera and increasing the firing speed of our strobes. Compatible in Manual mode and Olympus RC mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL).
The housing includes a vacuum safety system which performs a pre-dive vacuum check. The system allows to confirm the hermetic seal of the case before the dive by means of the vacuum system and to control the seal of the case during the dive by means of the visual and acoustic humidity detector.
The case includes the AOi FLP-06 flat front and zoom ring for the ZUIKO DIGITAL ED 14-42mm F3.5-5.6 EZ lens. The front incorporates a 67mm thread on the front making it compatible with wet lenses.
Lens Port system: AOI / Olympus PEN Ports System
|
MODEL NUMBER |
AOI UH-EM10 IV | |
| DESCRIPTION | Underwater Housing for Olympus OM-D E-M10 Mark IV Camera | |
| HOUSING COLOUR | AOI UH-EM10 IV-WHT | AOI UH-EM10 IV-BLK |
| White | Black | |
| COMPATIBLE CAMERA MODELS | Olympus OM-D E-M10 Mark IV | |
|
MAIN MATERIAL |
Housing Body: Polycarbonate | |
| DEPTH RATING | 45 Meters | |
| LENS PORT SYSTEM | AOI / Olympus PEN Ports System | |
| BUILT-IN LED FLASH TRIGGER | Compatible with a) Manual Flash Trigger (with and without Pre-flashes Functions) b) Olympus RC Mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL) |
|
| WATER LEAKAGE PROTECTION | Built-in Vacuum Analyzation and Wet Detection System (VWS) | |
| BATTERY POWER | Built-in Rechargeable Lithium Polymer Battery (3.7V 110mAH) | |
| BATTERY CHARGING | By USB Charger DC5V, 0.5A (not included) Approx. 1.5 Hours for a full charge |
|
| BATTERY OPERATION TIME | Approx. 2 Days (Based on 3 Dives/Day and 1 Hour/Dive) | |
| DIMENSIONS | 177.9mm (W) x 139.8mm (H) x 151.2mm (D) | |
| WEIGHT | On Land : Approx.835 g (Only included the Housing Body and Flat Port) |
|
| STANDARD ACCESSORIES | Flat Port (AOI FLP-06); Lens Gear (AOI LG-OM-1442EZ) | |
| Hot Shoe Connector (AOI HSC-02); USB Type-C Charging Cable (AOI USBC-02) | ||
| Vacuum Pump (AOI VP-02); LCD Monitor Hood (LCDH-01) | ||
| Spare O-Ring for Vacuum Valve Protection Cap x 1pc. (AOI SRVV-01) | ||
| Spare Main Seal O-ring x 1pc. (AOI HOR-01) | ||
| Silica Gel (AOI SIGE-3) x 1pc.; Silicone Grease (AOI SIGR-5) | ||
| Lanyard (AOI LYD-01); Port Front Cap for M67 Thread (AOI LFC-01) | ||
| Port Rear Cap for PEN Mount (AOI PRC-02); O-ring Remover (AOI ORR-02) | ||
| Micro-Fiber Cleaning Cloth (AOI MC-01); AOI Logo Sticker | ||
