AOi Underwater Housing for OM System OM-1 Camera
AVAILABLE ON REQUEST

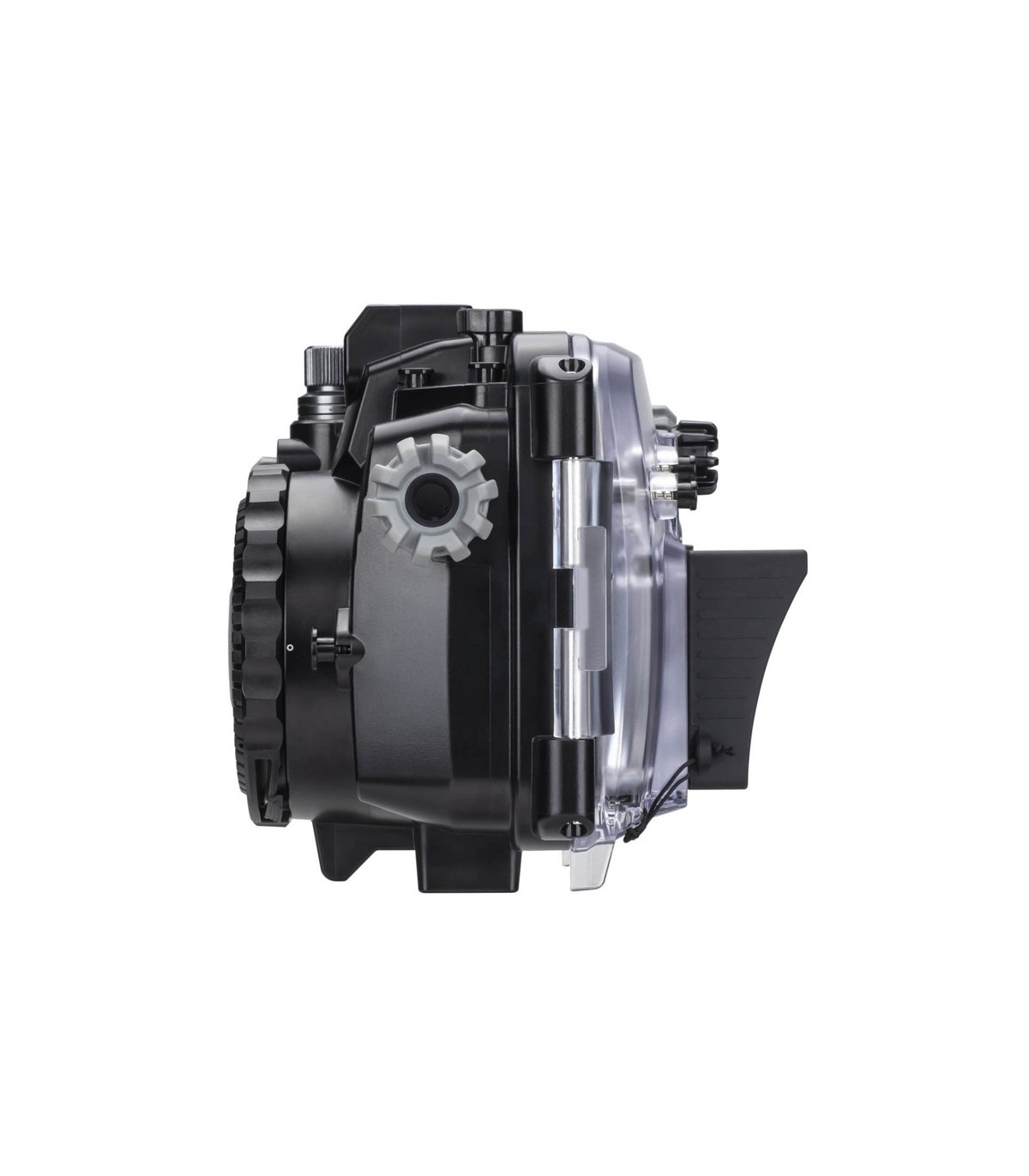

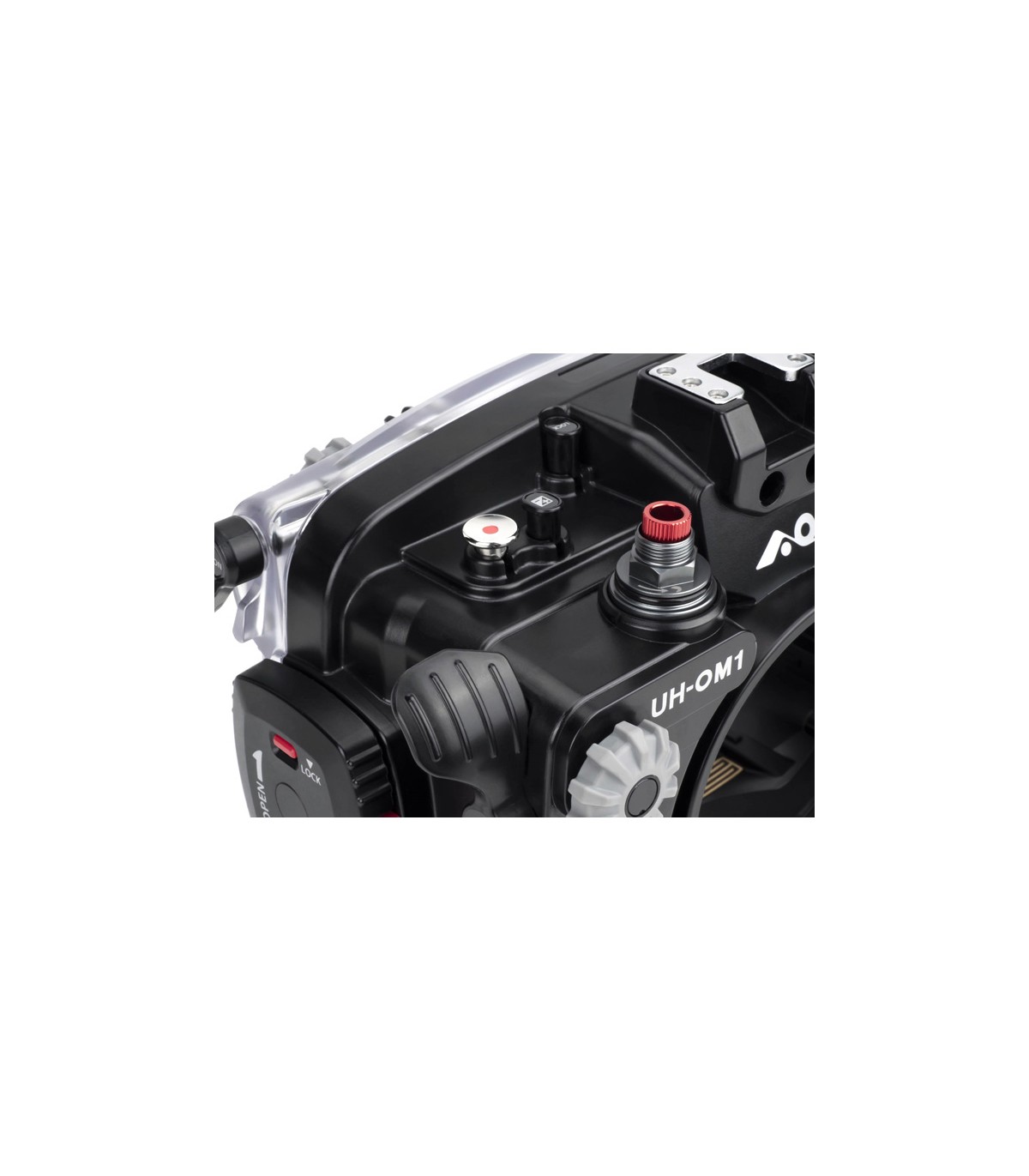

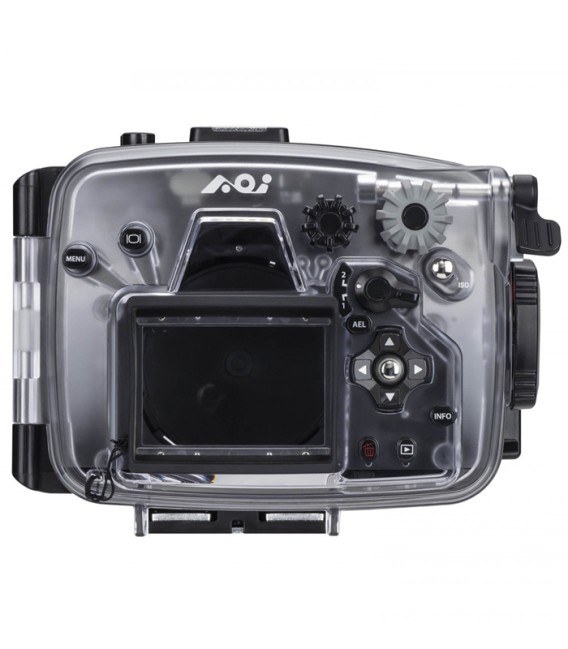

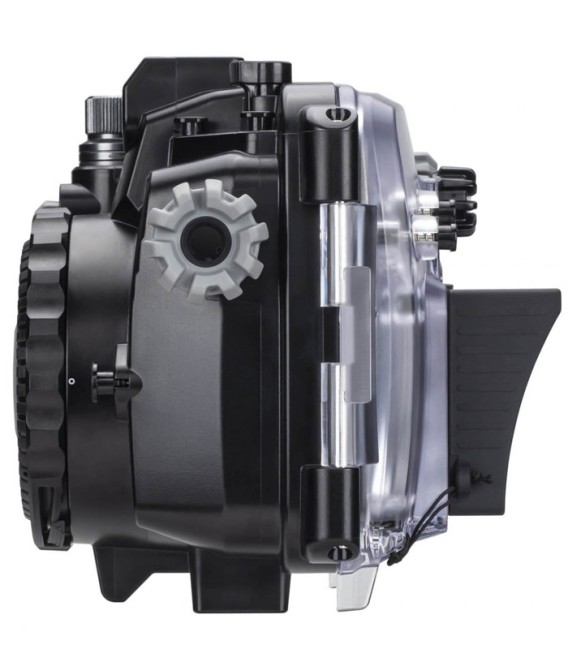

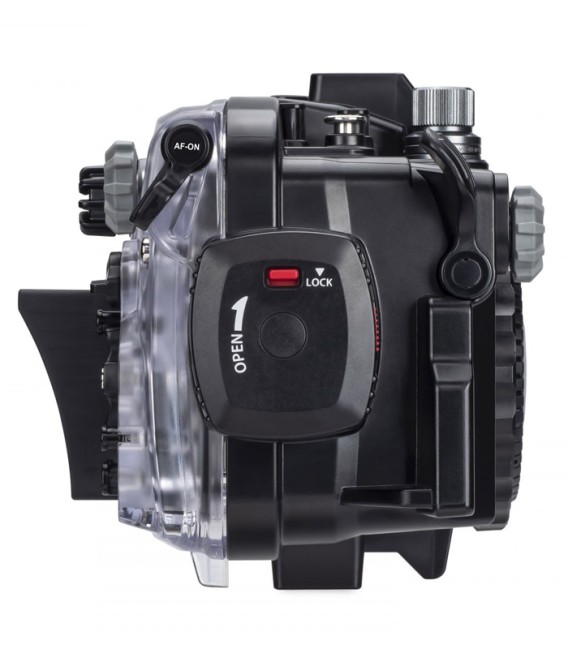

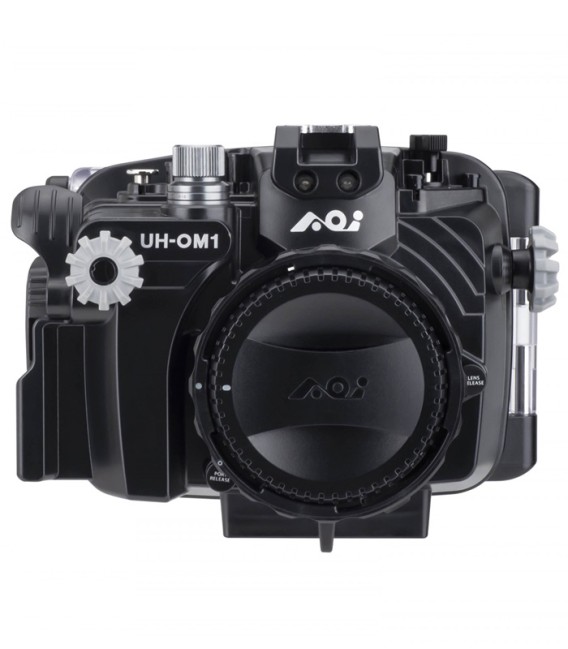

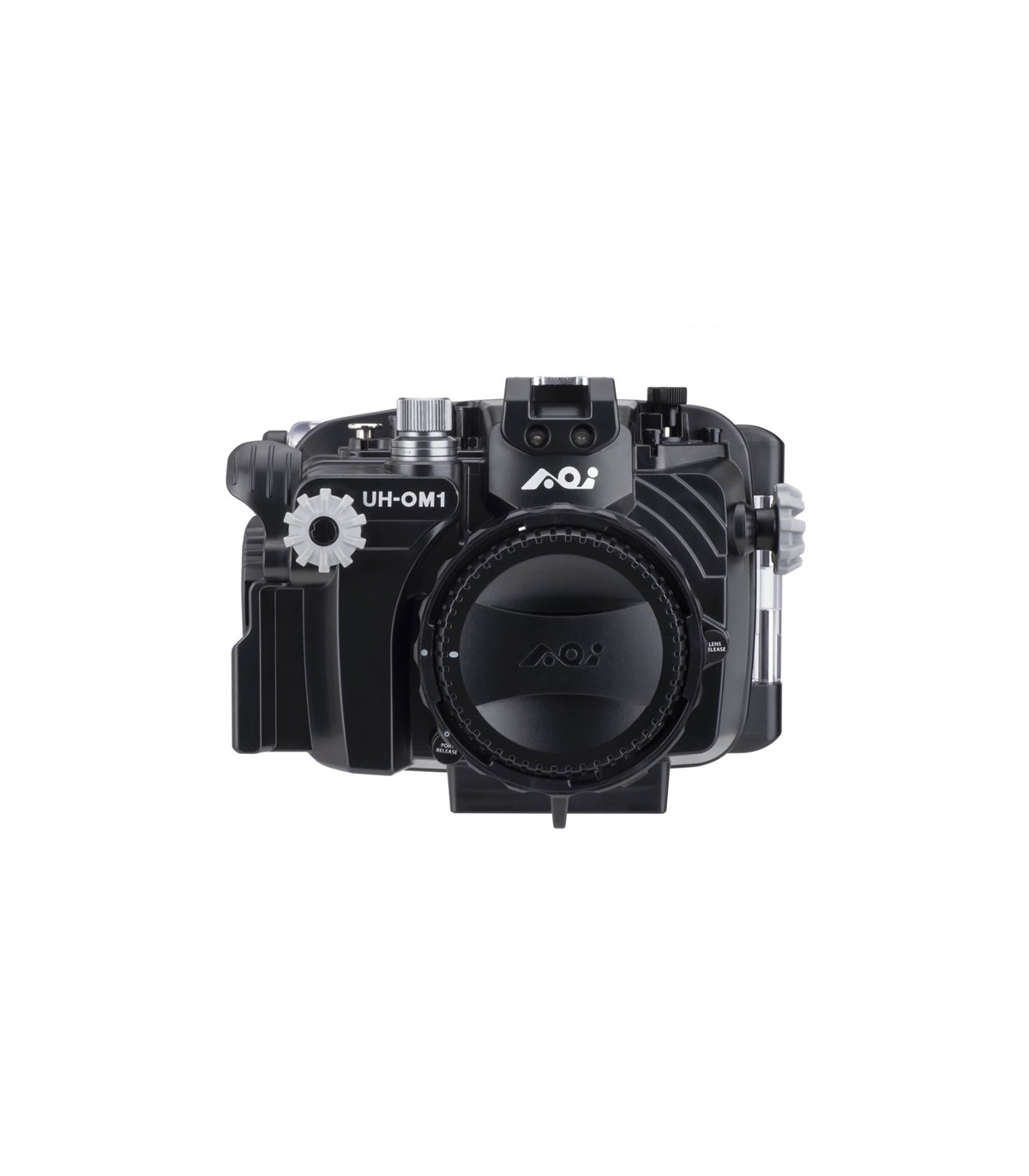

The AOI UH-OM1 housing is specifically designed for the Olympus OM System OM-1 Camera.
Made of highly resistant polycarbonate is submersible up to 45 meters deep.

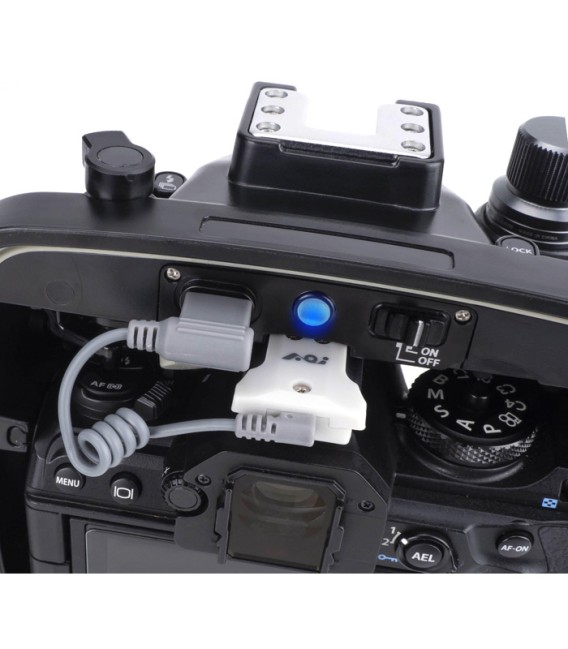

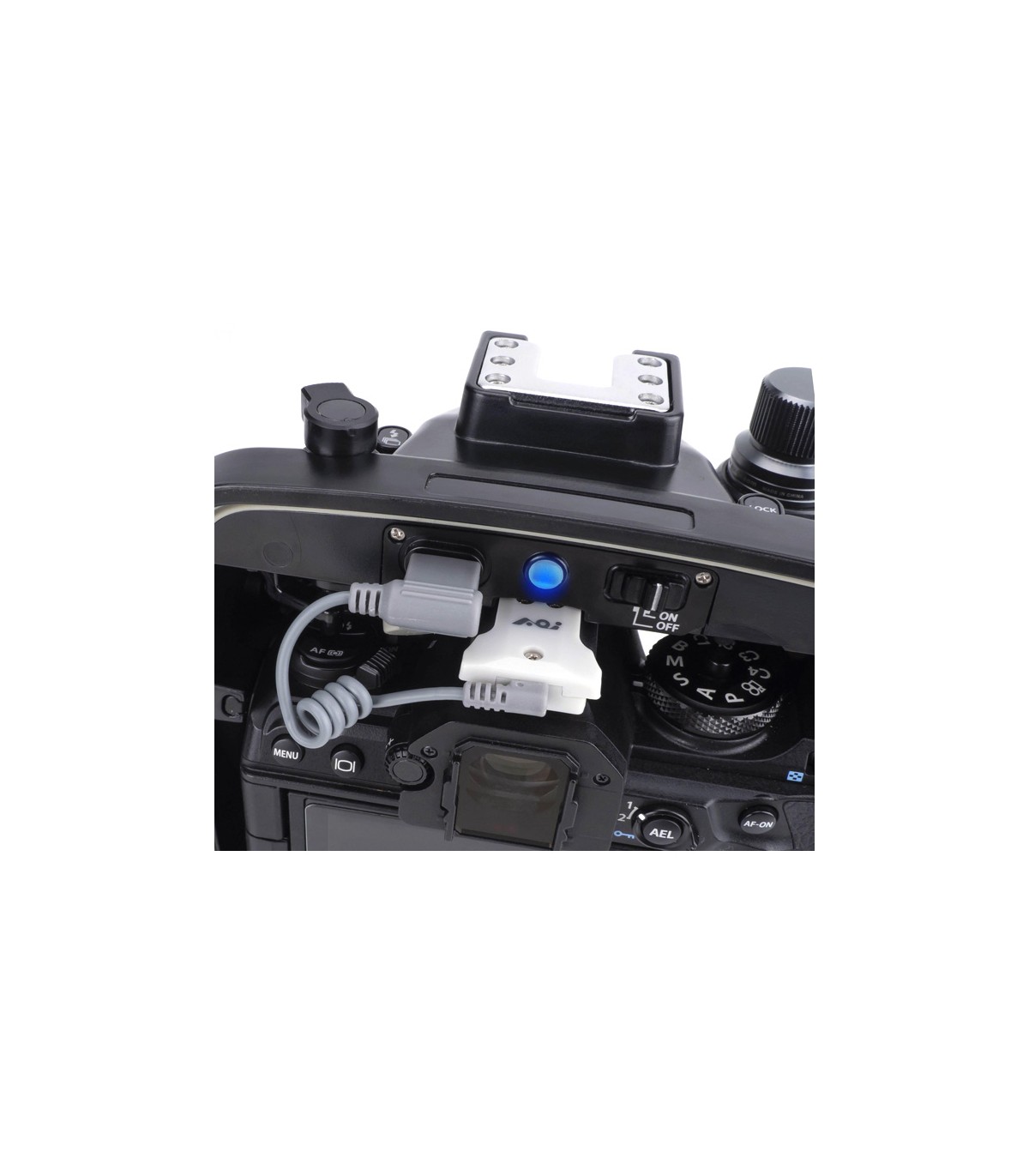

The housing includes an internal LED trigger with connection to the camera's hot shoe to trigger external strobes with fiber optic cables, thus extending the working time of the camera and increasing the firing speed of our strobes. Compatible in Manual mode and Olympus RC mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL).

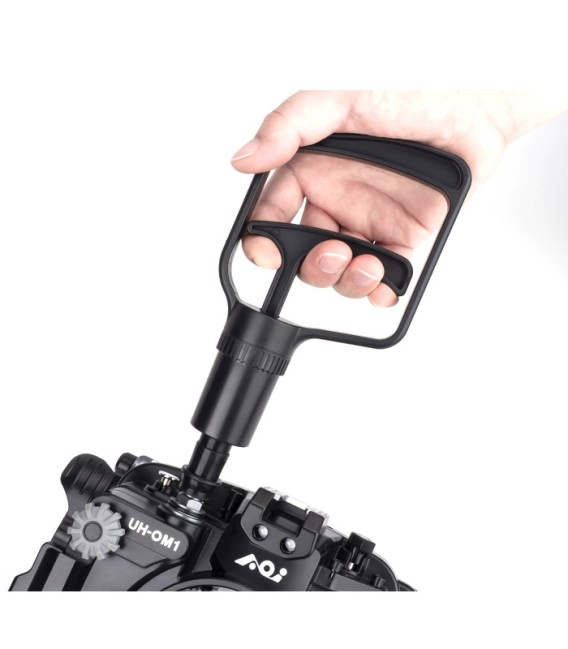

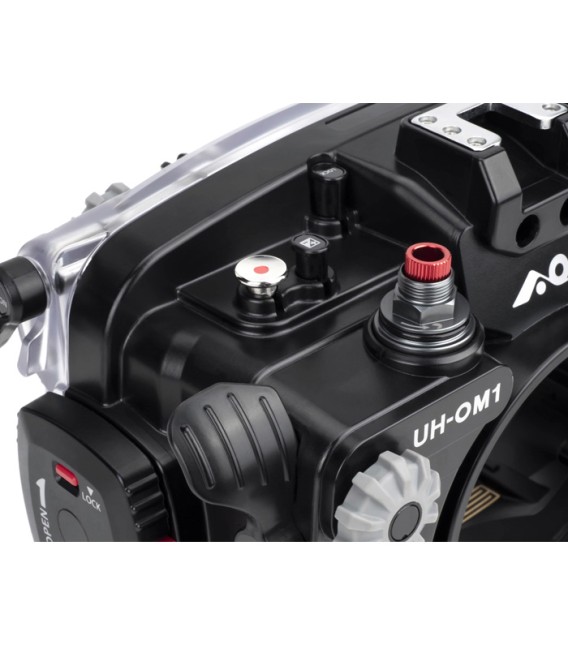

The housing includes a vacuum safety system which performs a pre-dive vacuum check. The system allows to confirm the hermetic seal of the case before the dive by means of the vacuum system and to control the seal of the case during the dive by means of the visual and acoustic humidity detector.
Lens Port system: AOI / Olympus PEN Ports System
| MODEL NUMBER |
AOI UH-OM1 |
| DESCRIPTION | Underwater Housing for Olympus OM System OM-1 Camera |
| HOUSING COLOR | Black |
| COMPATIBLE CAMERA MODELS | Olympus OM System OM-1 |
|
MAIN MATERIAL |
Housing Body: Polycarbonate |
| DEPTH RATING | 45 Meters |
| LENS PORT SYSTEM | AOI / Olympus PEN Ports System |
| BUILT-IN LED FLASH TRIGGER | Compatible with a) Manual Flash Trigger (with and without Pre-flashes Functions) b) Olympus RC Mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL) |
| WATER LEAKAGE PROTECTION | Built-in Vacuum Analyzation and Wet Detection System (VWS) |
|
BATTERY POWER |
Built-in Rechargeable Lithium Polymer Battery (3.7V 220mAH) |
| BATTERY CHARGING | By USB Charger DC5V, 0.5A (not included) Approx. 1.5 Hours for a full charge |
|
BATTERY OPERATION TIME |
Approx. 4 Days (Based on 3 Dives/Day and 1 Hour/Dive) |
| DIMENSIONS | 195.9mm (W) x 129.7mm (H) x 149.7mm (D) |
| WEIGHT | On Land : Approx.1079 grams (Only included the Housing Body and Body Cap) |
|
STANDARD ACCESSORIES
|
Body Cap / Storage Box for PEN Mount Housing （AOI BC-02） |
| USB Type-C Charging Cable; LCD Monitor Hood | |
| Spare O-Ring for Vacuum Valve Protection Cap x1pc. (AOI SRVV-01) | |
| Vacuum Pump (AOI VP-02); Spare Main Seal O-Ring x1pc. (AOI SOR-04) | |
| Spare Secondary Seal Ring x1pc. (AOI SSR-03); Silicone Grease (AOI SIGR-5) | |
| Silica Gel (AOI SIGE-3) x3pcs.; Lanyard (AOI LYD-01) | |
| O-ring Remover ( AOI ORR-02 ); Hot Shoe Connector (AOI HSC-02) |
