Olympus E-PL9/10 AOi
Brand:

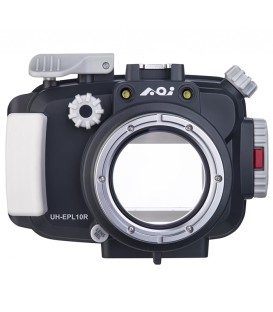

AOi housing for Olympus PEN E-PL9 or E-PL10 with kit lens M.ZUIKO DIGITAL ED 14-42mm F3.5-5.6 EZ (AVAILABLE ONLY ON REQUEST)
The AOI UH-EPL10R housing is specifically designed for the Olympus PEN E-PL9 or E-PL10 cameras.
Made of highly resistant polycarbonate is submersible up to 45 meters deep.

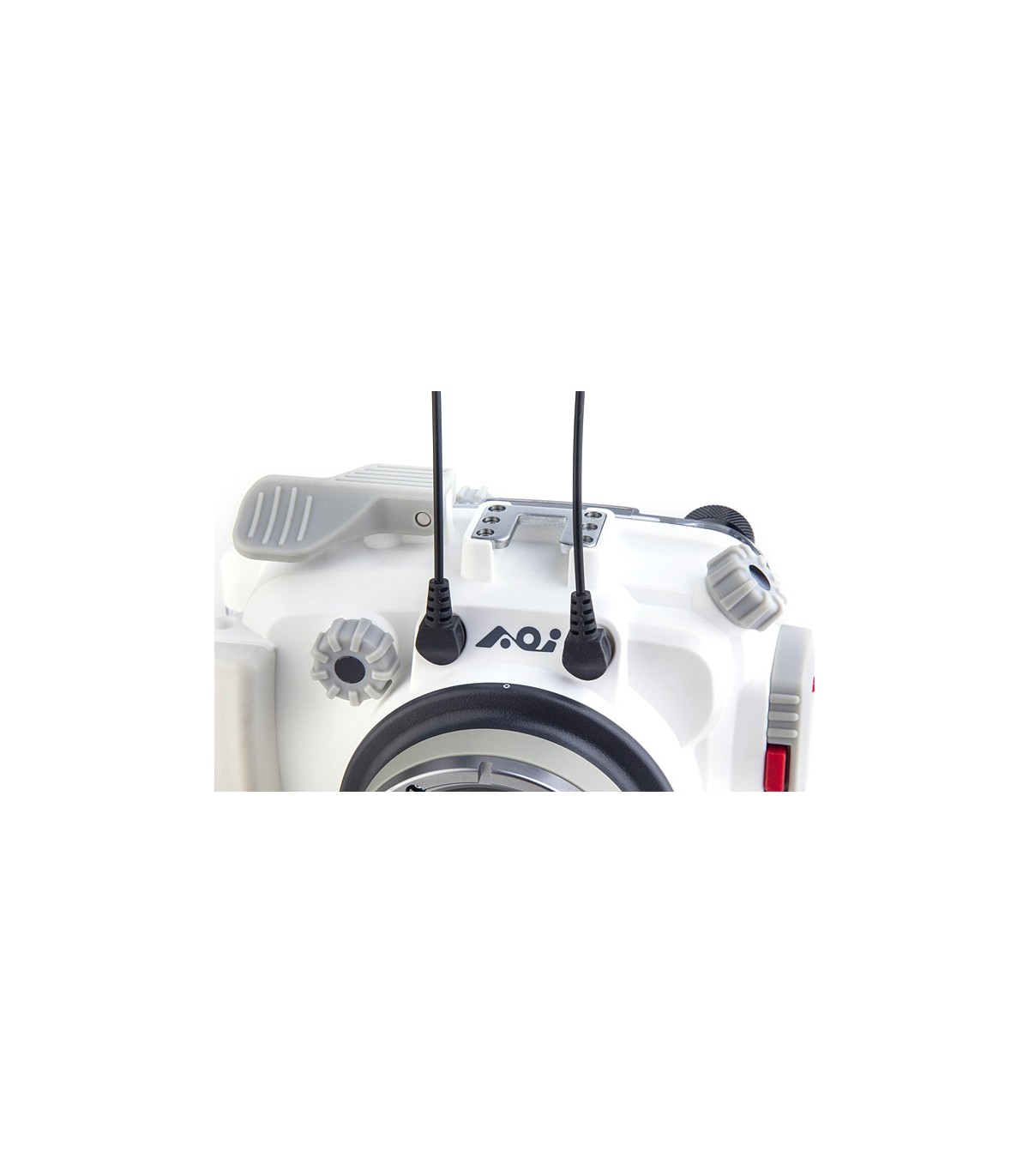

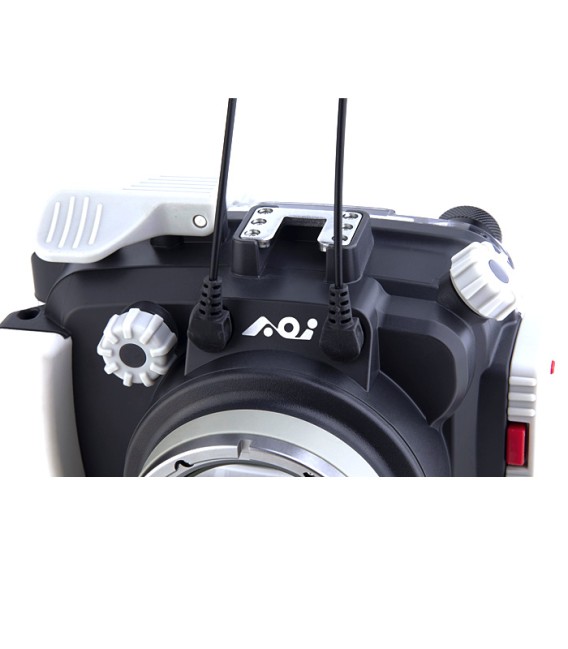

The housing includes an internal LED trigger with connection to the camera's hot shoe to trigger external strobes with fiber optic cables, thus extending the working time of the camera and increasing the firing speed of our strobes. Compatible in Manual mode and Olympus RC mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL).

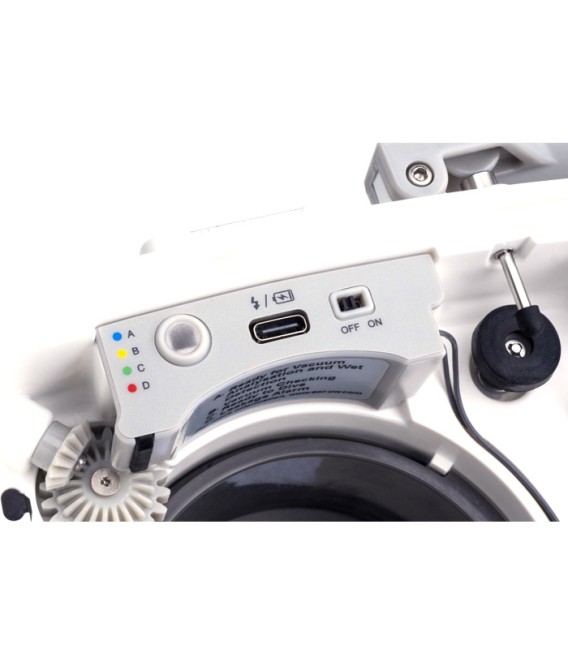

The housing includes a vacuum safety system which performs a pre-dive vacuum check. The system allows to confirm the hermetic seal of the case before the dive by means of the vacuum system and to control the seal of the case during the dive by means of the visual and acoustic humidity detector.
AOi FLP-06 flat front and zoom ring for the ZUIKO DIGITAL ED 14-42mm F3.5-5.6 EZ lens are included. The front incorporates a 67mm thread on the front making it compatible with wet lenses.
Lens Port system: AOI / Olympus PEN Ports System
|
MODEL NUMBER |
AOI UH-EPL10R-GRY |
|
DESCRIPTION |
Underwater Housing for Olympus E-PL9/10 with RC Mode - Gray Color |
| COMPATIBLE CAMERA M ODELS |
Olympus PEN E-PL9 or E-PL10 with kit lens M.ZUIKO DIGITAL ED 14-42mm F3.5-5.6 EZ |
| MAIN MATERIAL | Housing Body : Polycarbonate |
| Flat Port Glass : Optical Glass with double sided multi-layer AR coating |
|
|
DEPTH RATING |
45 Meters |
| BUILT-IN LED FLASH TRIGGER | Compatible with a) Manual Flash Trigger (with and without Pre-flashes Function) b) Olympus RC Mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL) |
|
WATER LEAKAGE PROTECTION |
Built-in Vacuum Analyzation and Wet Detection System (VWS) |
|
BATTERY POWER |
Built-in Rechargeable Lithium Polymer Battery (3.7V 110mAH) |
| BATTERY CHARGING | By USB Charger DC5V, 0.5A (not included) Approx. 1.5 Hours for a full charge |
|
BATTERY OPERATION TIME |
Approx. 2 days (Based on 3 Dives/Day and 1 Hour/Dive) |
|
DIMENSIONS |
Approx. 166mm (W) x 128mm (H) x 135.5mm (D) |
| WEIGHT | On Land : Approx. 734g (Only included the Housing Body and Kit Port) |
| Underwater : Approx. 26g (Only included the Housing Body and Kit Port) |
|
| STANDARD ACCESSORIES |
Flat Port (AOI FLP-06-GRY);USB Type-C Charging Cable Lens Gear (AOI LG-OM-1442EZ);Vacuum Pump ( AOI VP-02) Hot Shoe Connector (AOI HSC-02);Extended Shutter Release Lever Spare Main Seal-ring x 1pc. (AOI HOR-01);O-ring Remover (AOI ORR-02) Spare O-ring for Vacuum Valve Protection Cap x 1pc. (AOI SRVV-01) Silica Gel (AOI SIGE-3) X 3pcs.;Silicone Grease (AOI SIGR-5) Port Front Cap for M67 Thread (AOI LFC-01);Port Rear Cap for PEN Mount (AOI PRC-02) Lanyard (AOI LYD-01);LCD Monitor Hood |
