DJI OSMO Action 5/4 AOi Bayonet
Brand:

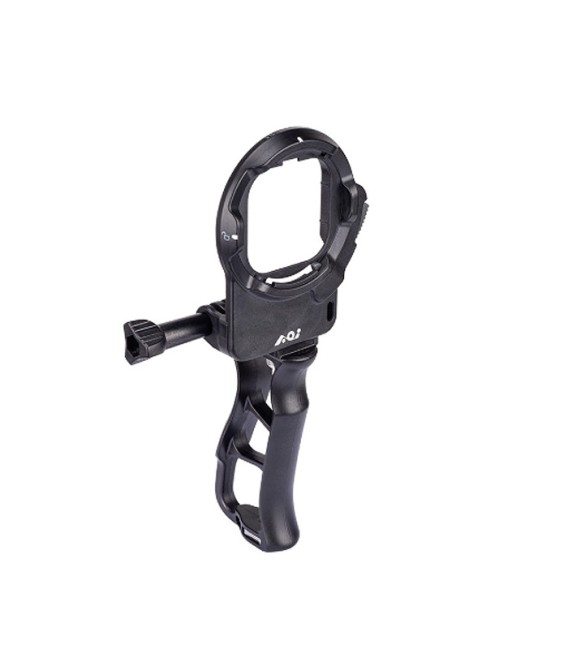

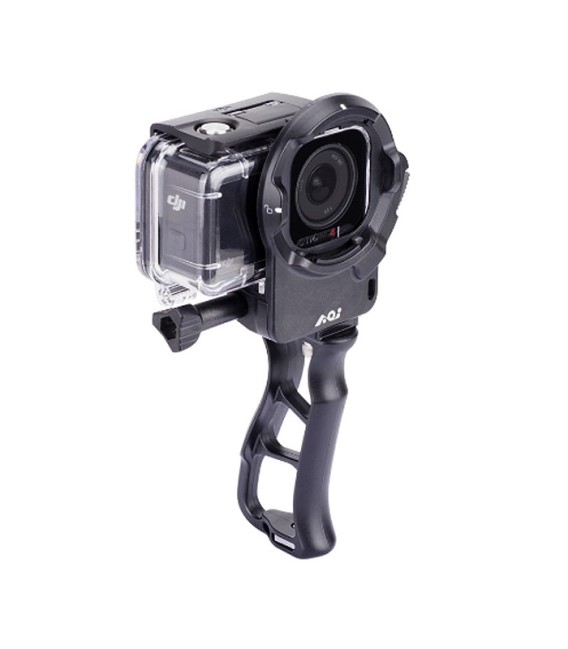

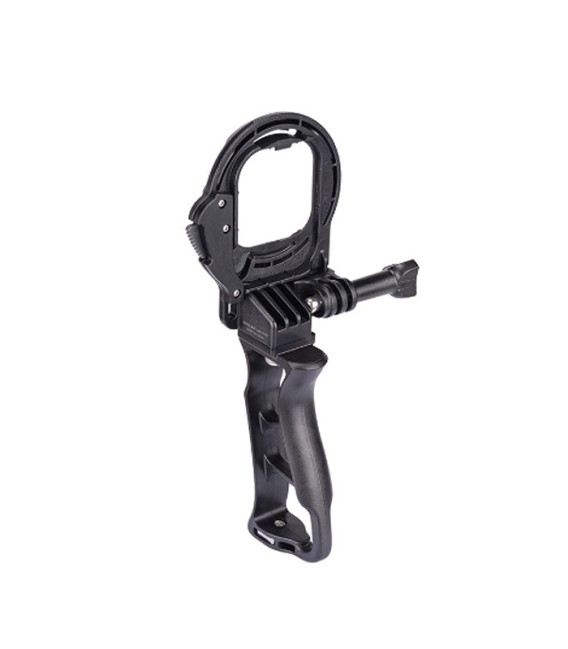

Quick Release System 02 Mount Base for DJI OSMO Action 5/4
This mount adapter is neccesary to mount AOi lenses for DJI OSMO Action 5/4 like UWL-03 or UCL-03.
Compatible also with INON lenses for GoPro with SD bayonet.
The front includes a detachable handle. The base incorporates a female tripod thread compatible with most trays with handles on the market.
It also includes an adapter that replaces the handle, leaving the lower GoPro-type anchor the same as the original of the housing, compatible with any accessory for GoPro anchoring.
| MODEL | AOI QRS-02-MB3-BLK | AOI QRS-02-MB3-WHT |
| DESCRIPTION | Quick Release System 02 Mount Base for DJI OSMO Action 5/ 4 Waterproof Cases | |
| COLOURS | Black | White |
| MATERIAL | PC+GF | |
| COMPATIBILITY |
Lenses - UCL-03 / UWL-03 / UWL-03PRO |
|
|
Housings - DJI Osmo Action 5 Pro/ 4/ 3 Dive Housings |
||
| DIMENSIONS |
Mount Base |
79mm (L) X 32.5mm (W) X 91mm (H) |
|
Mount Base with Pistol Grip |
79mm (L) X 58.5mm (W) X 193mm (H) | |
| WEIGHT | 107 g (Included Pistol Grip) | |
| ACCESSORIES | Pistol Grip x 1pc, Allen Key x 1pc | |
