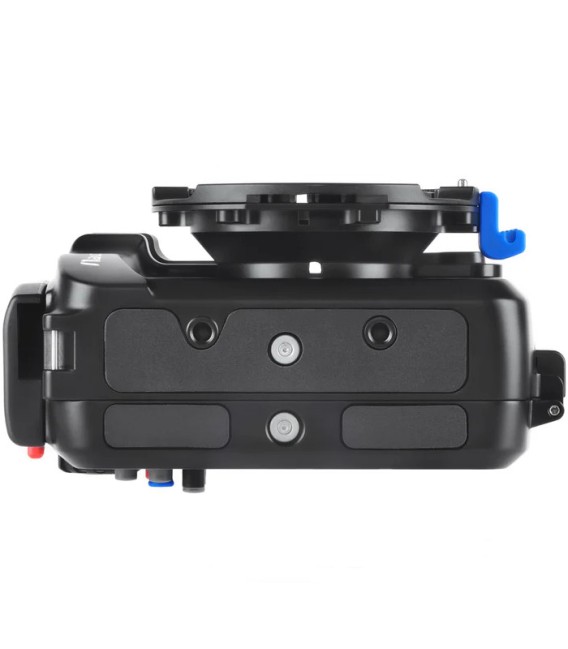

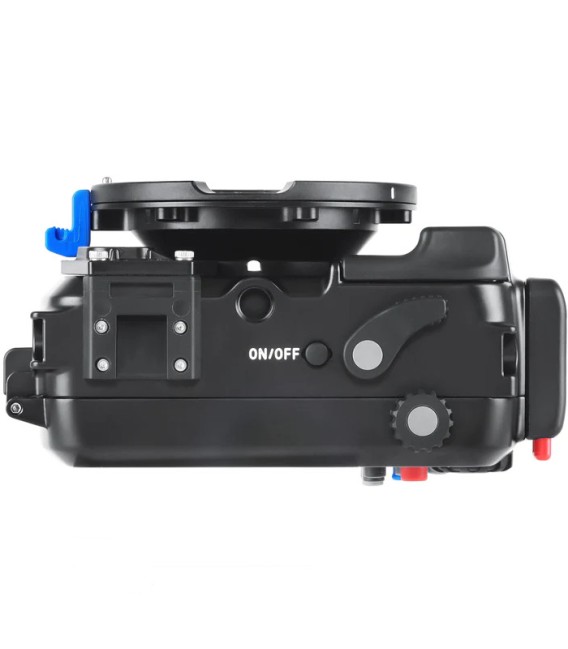

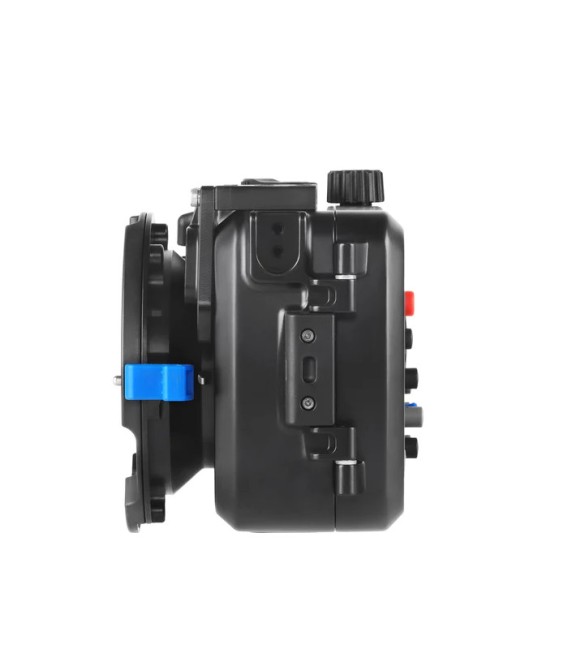

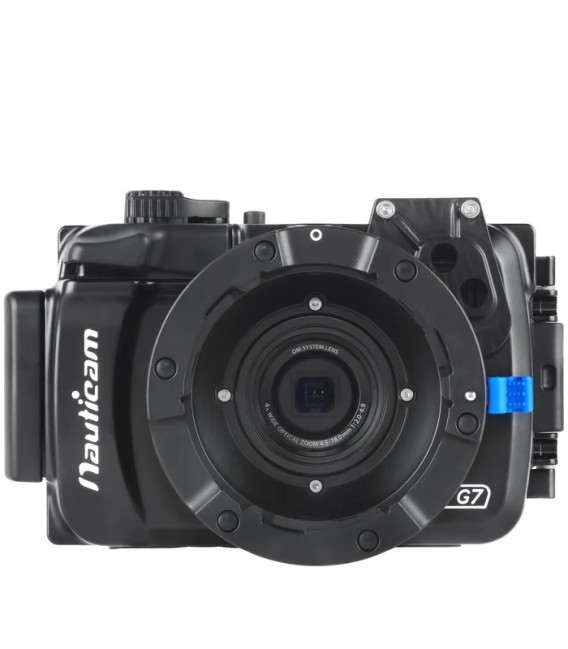

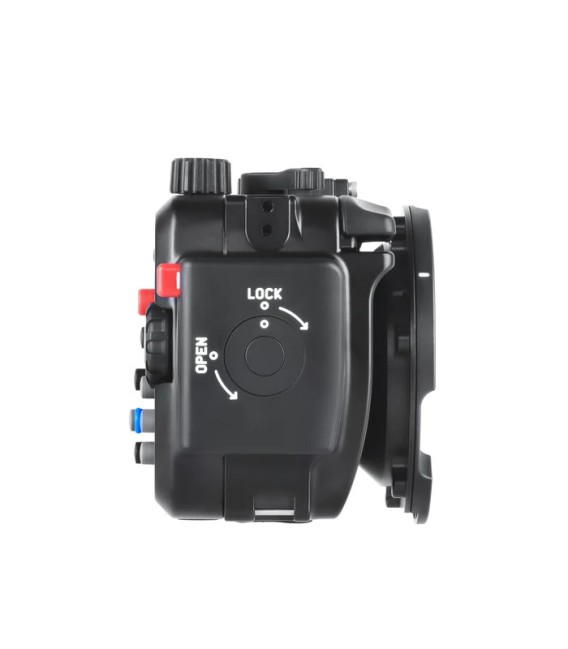

Olympus TG-6/7 Nauticam NA-TG7 BM

Despite the camera being waterproof on its own, the addition of a machined aluminum Nauticam housing transitions the TG-7 into a true underwater image-making platform.  Access to essential controls is not only translated into the housing but improved with large well-placed and clearly labeled buttons and dials.  The NA-TG7 is compatible with both the TG-5/6/7 camera models.

INTEGRATED BAYONET MOUNT

The NA-TG7 comes with an integrated Bayonet Mount which will work with all previous Bayonet Mount accessories as well as the new WWL-C Wet Wide Lens for compact camera systems.  The WWL-C is designed to bring true underwater-specific ultra-wide angle performance to 24mm equivalent lenses such as that found on the TG-5/6/7 cameras.  The WWL-C in a low-profile wet-mate corrective optic that delivers 130º field-of-view with full zoom-through capability.  The lens can easily be removed underwater when macro situations arise and securely stored with one of the Nauticam Bayonet Mount storage solutions.

ACCESSORY MOUNTING OPTIONS

With the Nauticam NA-TG7 there are both a cold-shoe and M10 threaded mounting point on the housing.  These can be outfitted to support a variety of lighting accessories.  If even more flexibility is needed, the housing ships with a set of stainless steel stiffening brackets and a shutter release extension for use with the Nauticam Flexitray II system.  The addition of the tray, an Adjustable Right Handle and optional Strobe Mounting Balls (71311) creates an even more stable shooting platform with up to four accessory mounting locations.

NOTE: When using with 71207 Flexitray II, the baseplate must be rotated 180º and the handles adjusted accordingly.

FLASH TRIGGERING

The NA-TG7 is able to transmit the camera's internal flash to supported external strobes via Nauticam Universal Fiber Optic Cables which plug directly into the Sea&Sea style bulkheads on the front of the housing.  The included diffuser can also be attached to use the internal flash as the primary light source

LCD MAGNIFIER

The NA-TG7 can be outfitted with Rails (25123) above and below the rear LCD display window that can accommodate the LCD Magnifier with Dioptric Adjustment (25106).  The magnifier not only functions as a shade to assist in bright shooting conditions it can magnify the screen to help judge critical focus.  The magnifier features a dioptric adjustment to set the focus for your vision, even when using a prescription mask.

TECHNICAL SPECIFICATIONS
