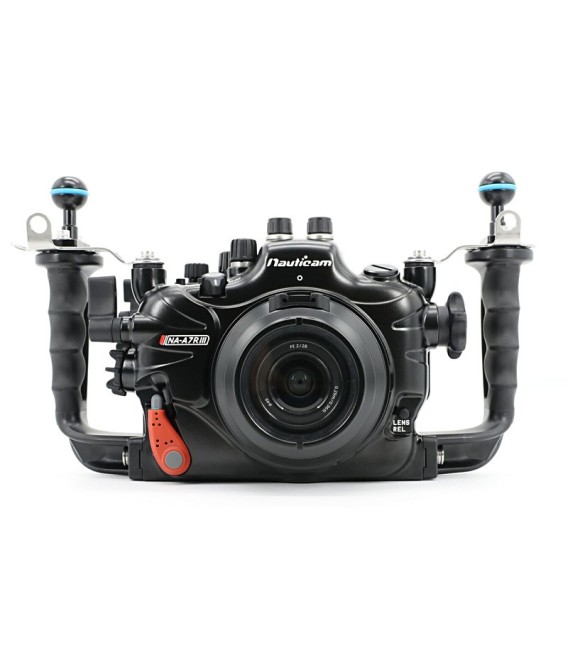

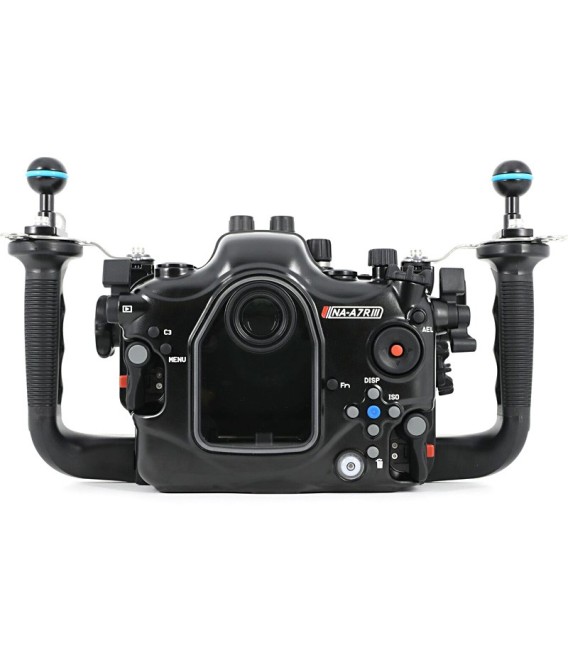

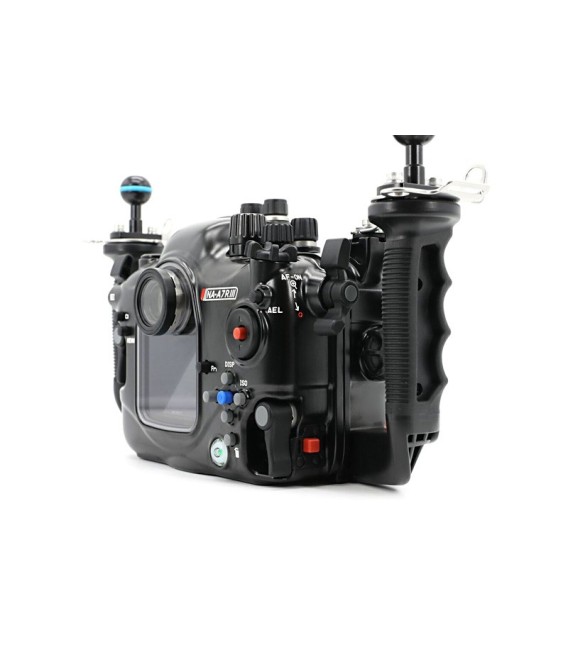

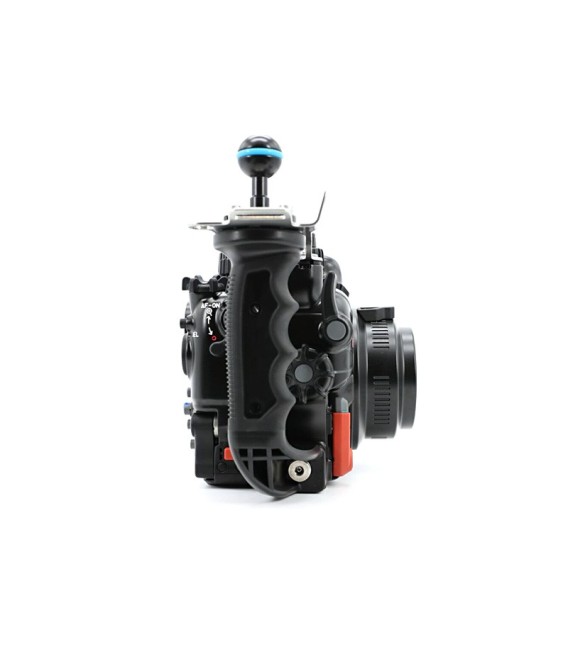

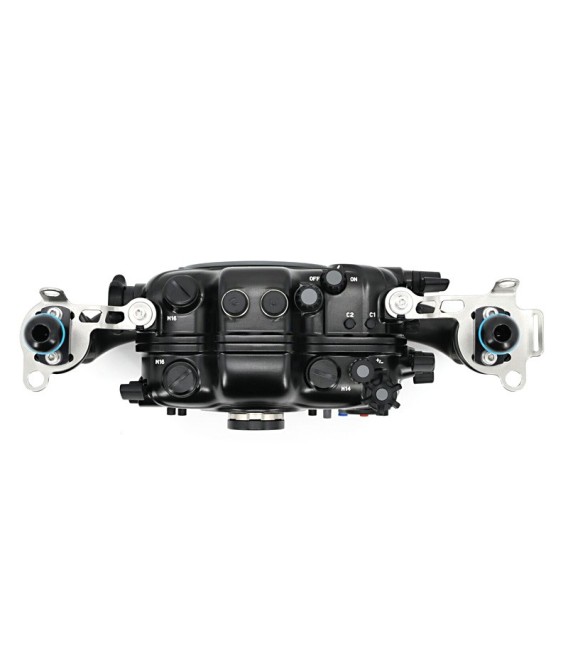

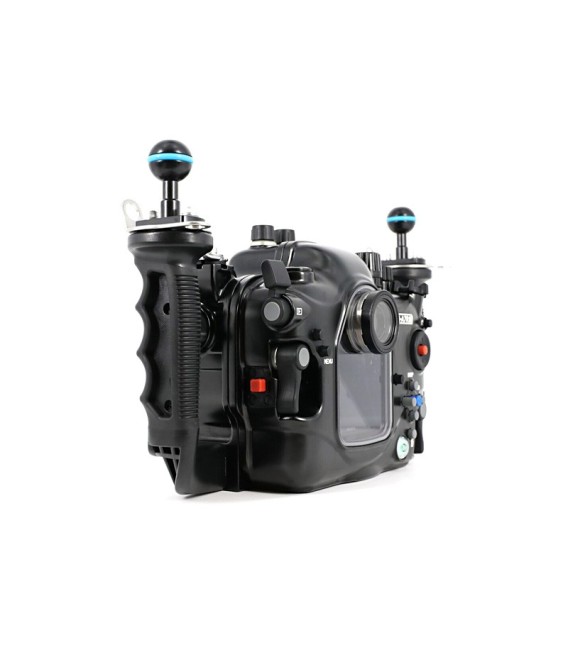

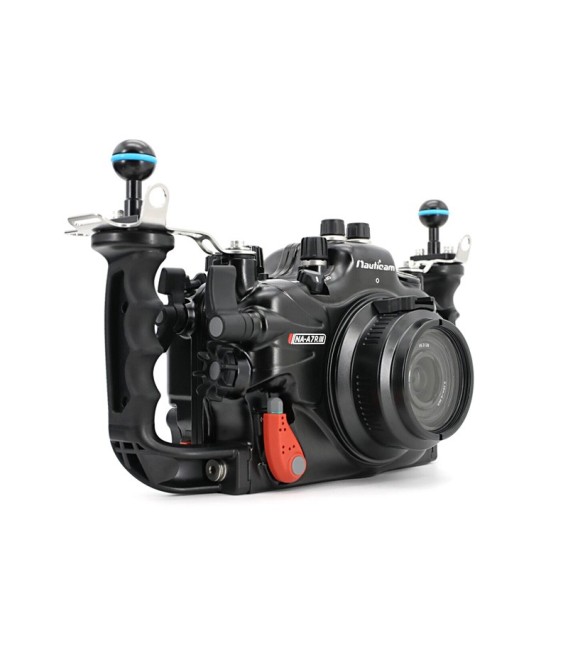

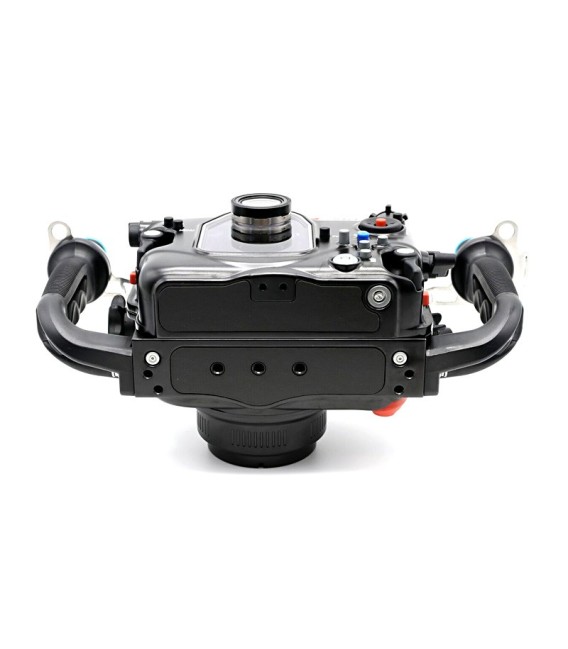

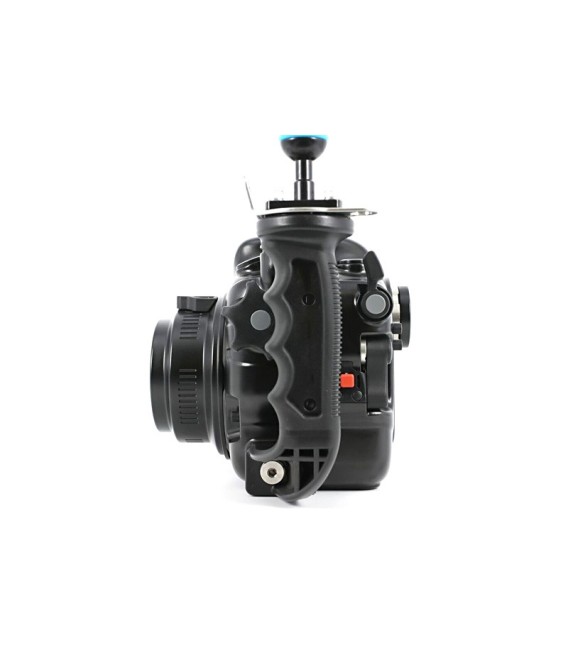

Nauticam NA-A7RIII Housing 17420

A professional housing befitting of a top-of-the-line camera, the NA-A7RIII underwater housing provides fingertip access to all key camera controls in a rugged and reliable aluminum underwater housing.  Ergonomic camera control access is one of the defining strengths of a Nauticam housing, and the NA-A7RIII continues this tradition. Essential camera parameter changes are made from the handles, without awkward reaches.

The NA-A7RIII housing inherits the core design elements from the Nauticam pro DSLR range, and bundles them in a more compact package.  A patented port locking lever allows lens changes to be made in seconds. Opening the housing for quick battery and media changes is fast and easy with the locking housing latches. All aspects of the system are a seamless extension of the camera.

Flash Triggering

An optional LED flash trigger (26302) provides rapid fire strobe triggering with optical slave strobes over fiber optic cables. A new universal fiber optic cable set (26216) provides reliable triggering with all popular optical slave strobes!

Flash systems that use electrical sync cables can be connected to a Nikonos Bulkhead and Hotshoe (25056).

VIEWFINDER OPTIONS

The NA-A7RIII standard optical glass viewfinder is very good and travel friendly, but many photographers prefer the ease of a magnified viewfinder with dioptric adjustment. An accessory enlarging viewfinder allows the large 3.69M dot (1280 x 960 pixel) OLED viewfinder to be seen in its full glory!

Nauticam produces a “straight” 180º enhanced viewfinder and a 45º angled enhanced viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high quality optics, and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in just a few seconds without using tools. As an added bonus, the viewfinders have extra clearance that provides more room for regulator second stages.

INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is shipped with NA-A7RIII as standard equipment. Combined with an accessory vacuum valve (PN 25624), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

TECHNICAL SPECIFICATIONS

Depth Rating: 100m

Weight: 2.43kg

Dimensions: 348mm (W) × 200mm (H) × 118mm (D)

Port Opening: N100
