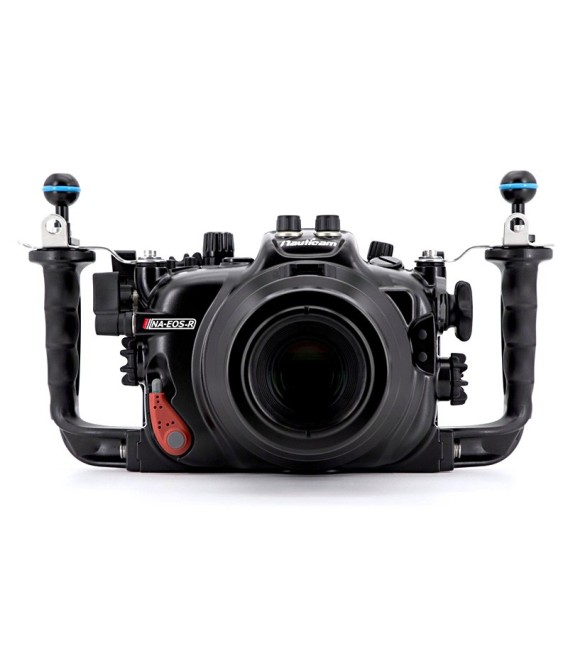

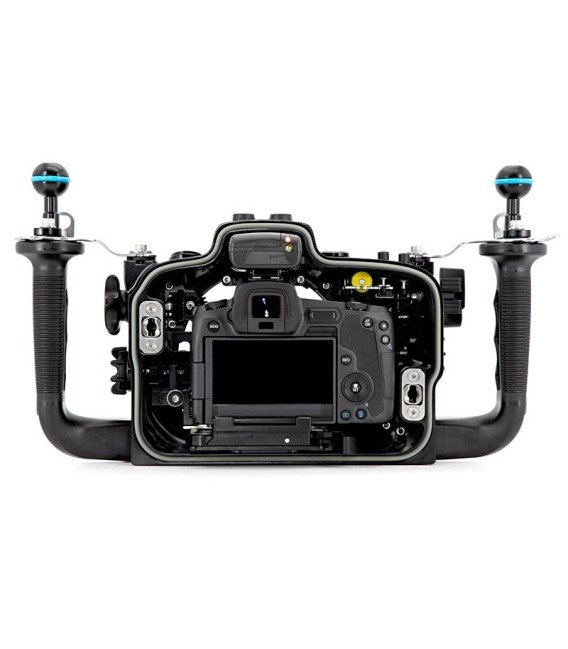

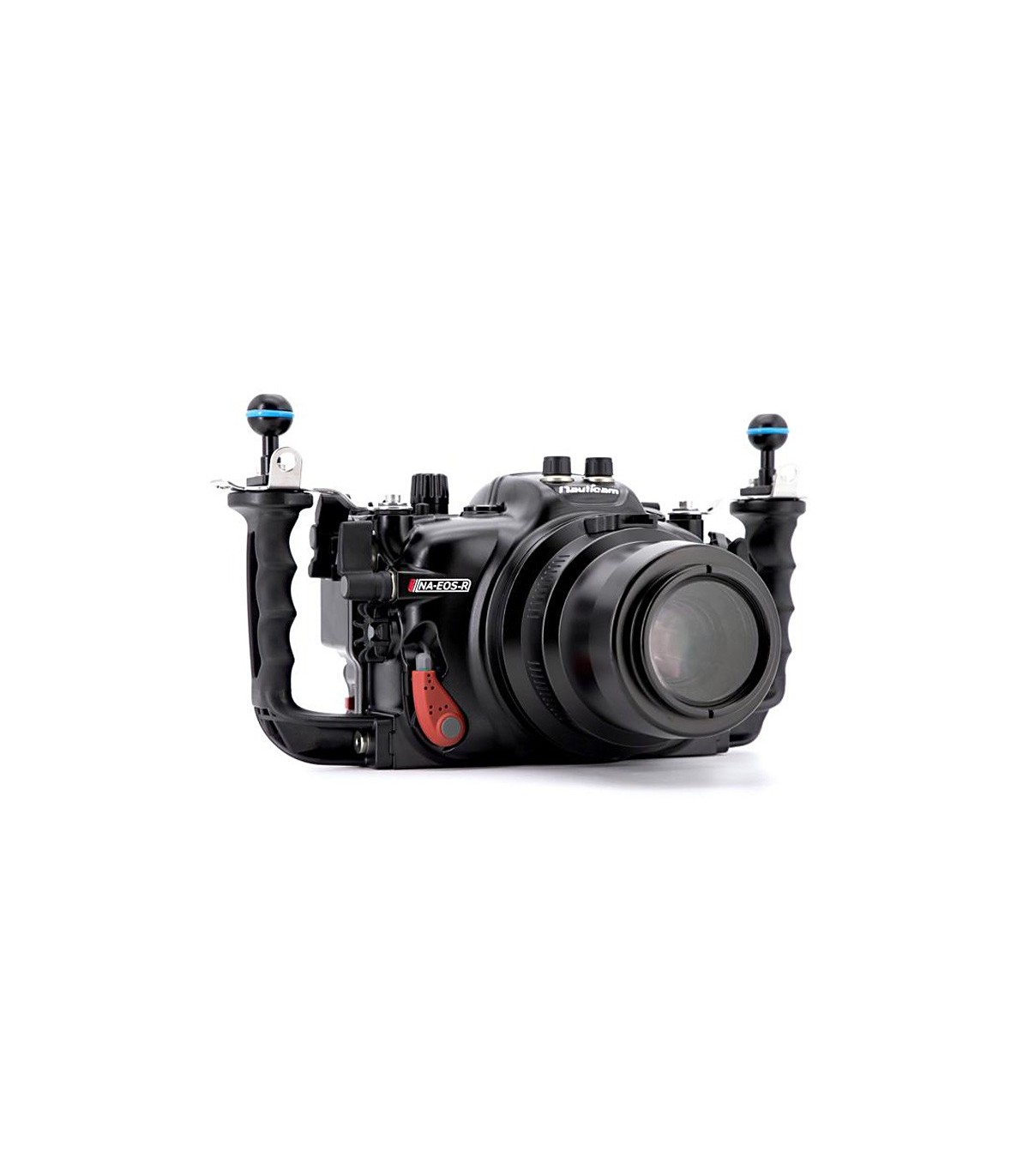

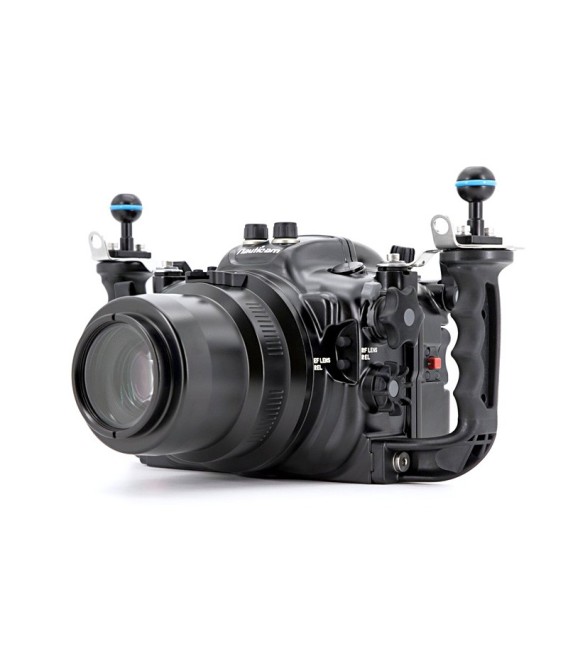

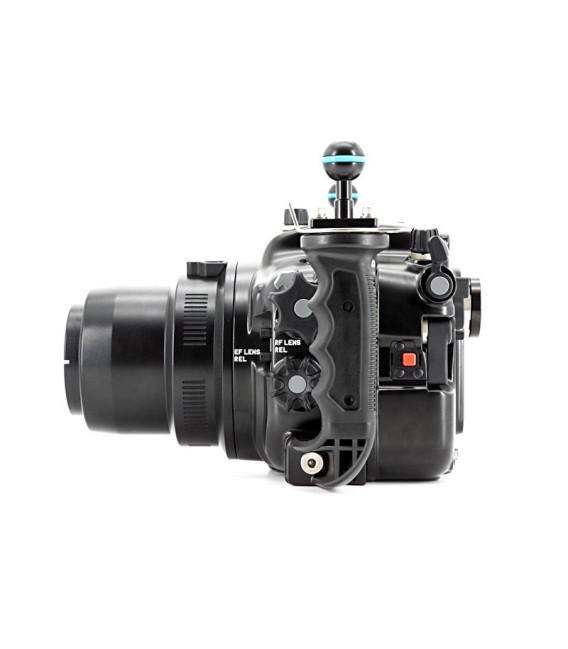

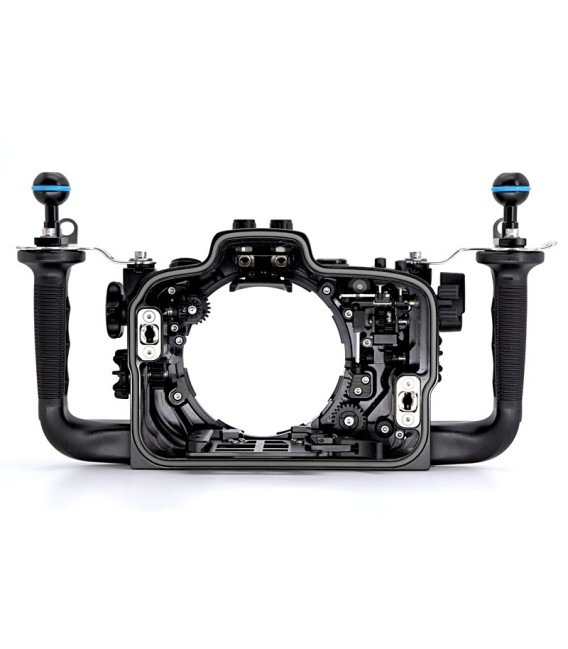

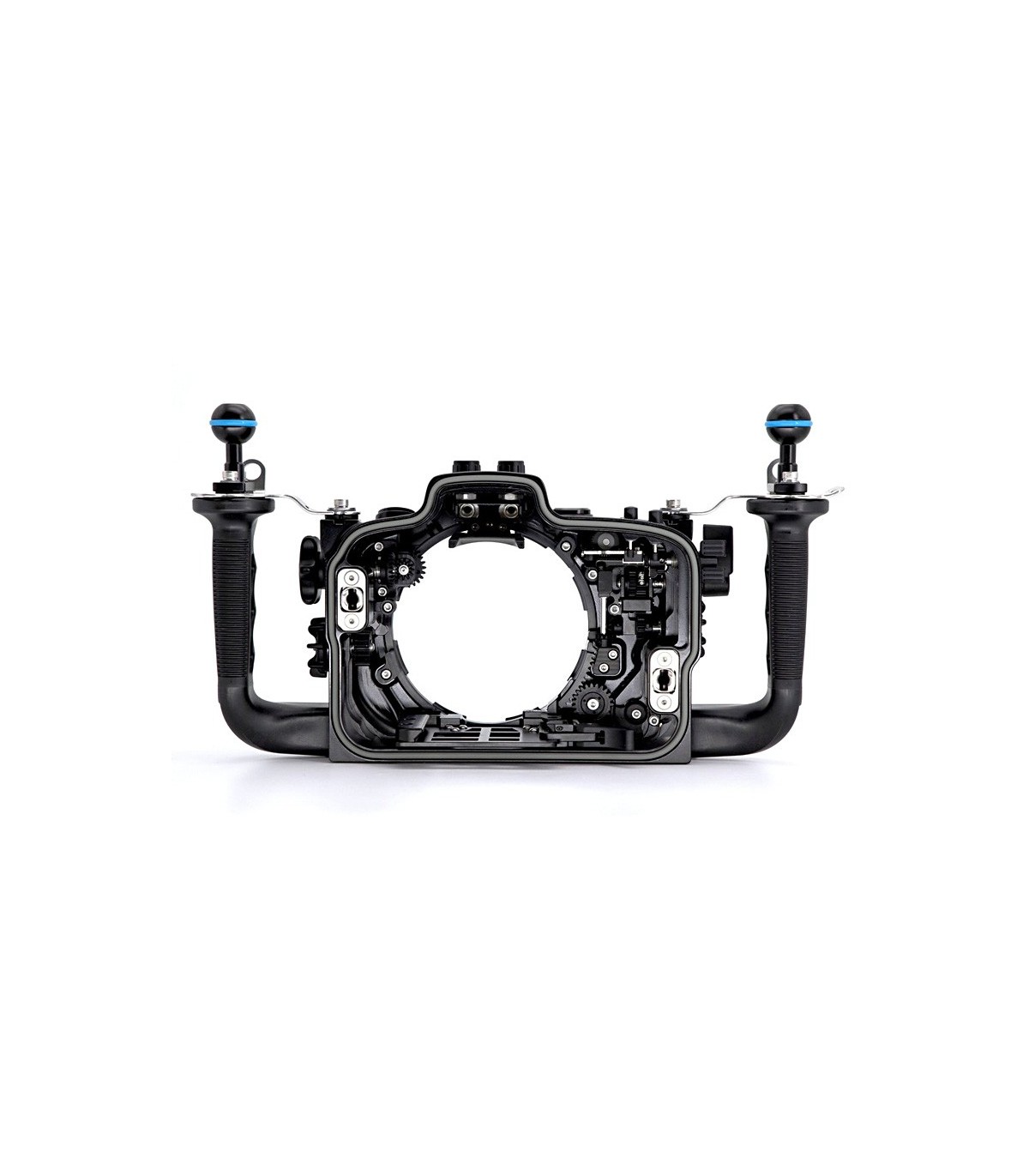

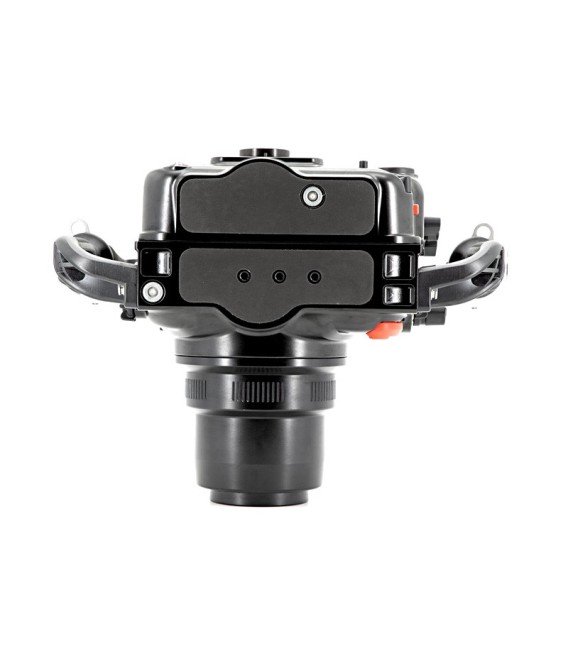

The NA-R underwater housing embodies Nauticam's drive for innovation. Both the Canon EOS R and the Nikon Z-7/6 cameras present shooters with the ability to use both the available legacy lenses via an adapter in addition to their native optics. For many, the EOS R is a move from a full-frame Canon DSLR. To support both the legacy and native lenses, Nauticam has integrated the NA-R into the N120 port system. Canon's EF to RF mount adapters can be affixed to the camera before insertion into the housing. When using the EOS R inside the housing with the adapter and a supported EF lens, the port and extension ring arrangement will be identical to the same setup on a Nauticam Canon N120 DSLR. As the RF lens lineup emerges, dedicated port and extension ring combinations will be listed on the Port Chart. Two lens release buttons, one for RF and one for EF lenses used with the optional Canon adapter, are located on the front of the housing to make lens removal through the port opening simple.

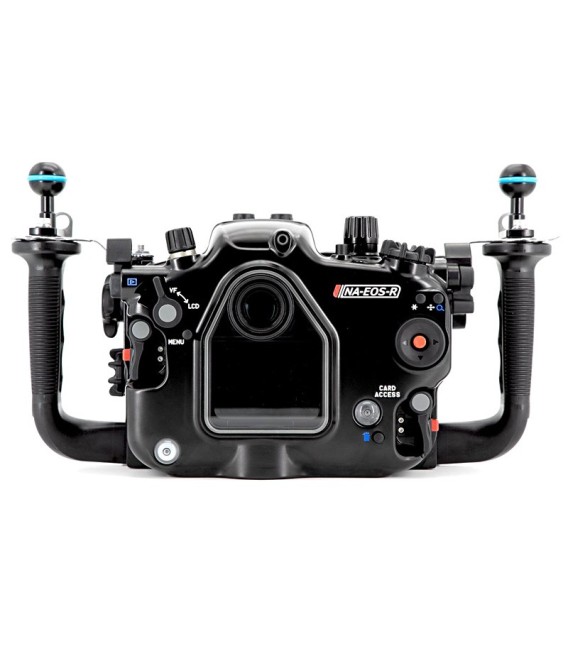

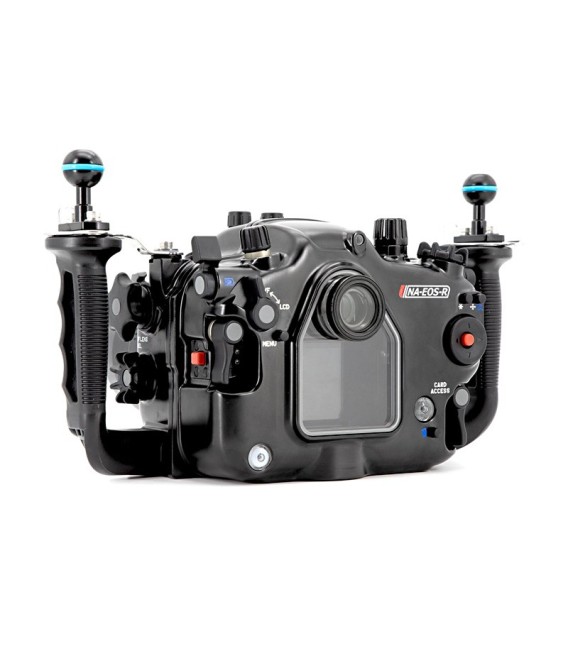

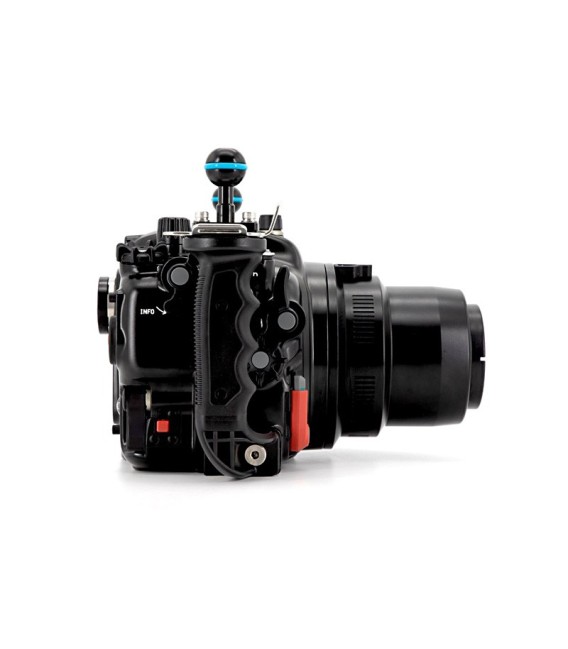

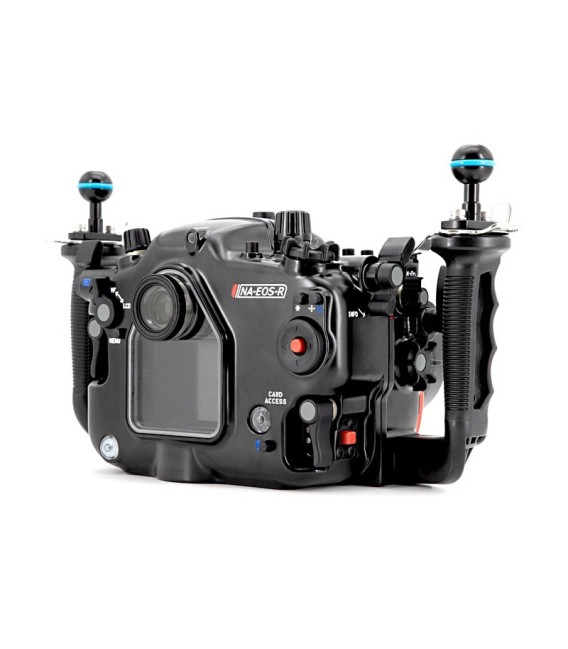

Nauticam engineers are obsessed with getting the underwater image maker unfettered access to all the necessary controls, with as many within easy reach of the ergonomic rubberized handles. This Mission Control philosophy extends to the NA-R where a dual thumb lever and dual sub-lever are placed by the right handle. The upper thumb lever activates the "AF-On" and the lower the "Info" buttons while the sub-lever corresponds to the "M-Fn" and "Record" buttons. Near the left handle is a thumb lever for "Playback" as well as a dedicated switch to change from using LCD to the EVF.
Large knurled and rubberized control dials access the camera's "main" and "sub" command dials. The two-stage trigger allows for smooth focus and firing activation. Additional buttons for "Menu", "Focus Point Selection" and others are also easily reached from the handles.
An additional control wheel is located on the left side of the housing and will interface with the control ring on the supported EF to EOS R Mount Adapter with Control Ring using the optional gear (PN 19561).
Flash triggering is achieved via one of two optional Flash Triggers, a manual LED trigger (PN 26301) or a TTL Flash Trigger (PN 26321) that use the built-in fiber optic bulkheads with optional fiber-optic cables to trigger supported strobes. For controlling strobes that do not support fiber optic flash triggering, a variety of legacy hot-shoe flash control bulkheads are available.
Video over HDMI
The EOS R is capable of outputting a 10 bit 4K UHD (3840 x 2160) 30p video signal over HDMI. When combined with the optional Standard M16 HDMI Bulkhead (PN 25033) and HDMI (D-C) 190mm cable (PN 25036) the NA-R can be used in conjunction with an external monitor or recorder such as the SmallHD 502B or Ninja Inferno in their respective Nauticam Housings.
Vacuum Check and Leak Detection System
The NA-R comes with the electronics as well as the M16 Vacuum Valve II for the vacuum check and leak detection system pre-installed. This simple system allows for checking the watertight integrity of the housing before the dive as well as monitoring continuously throughout the dive.
Dimensions: 360mm x 200mm x 160mm
Depth rating: 100m
Port Opening: N120
What's in the Box?
- 17329 Nauticam NA-R Housing
- 25625 M16 Vacuum Valve II (pre-installed)
- 90122 Spare housing o-ring with lubricant and removal tool
- CR2032 Battery (for Vacuum System)
- Padded Travel Case
- Allen wrench set
