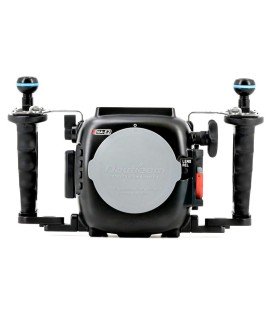

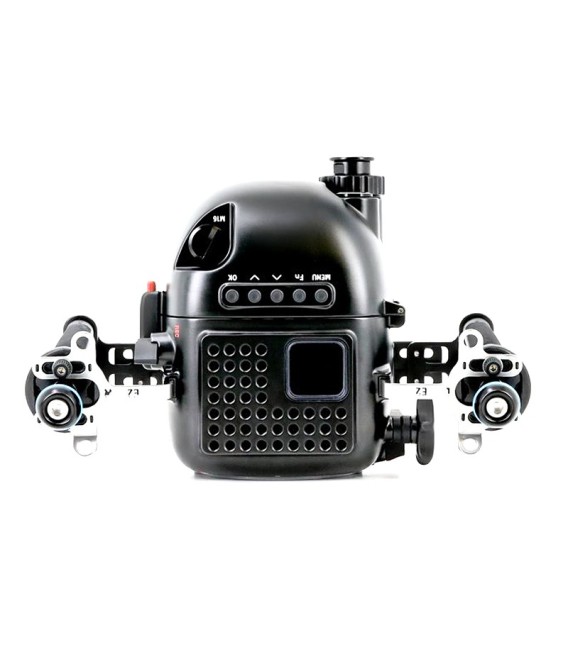

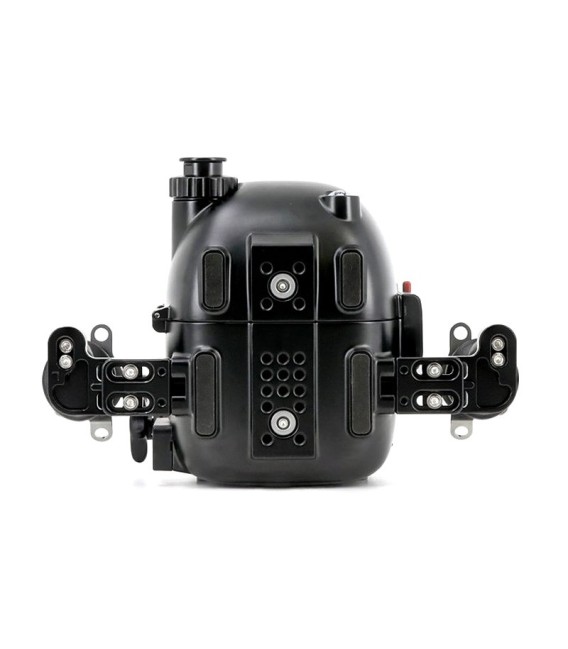

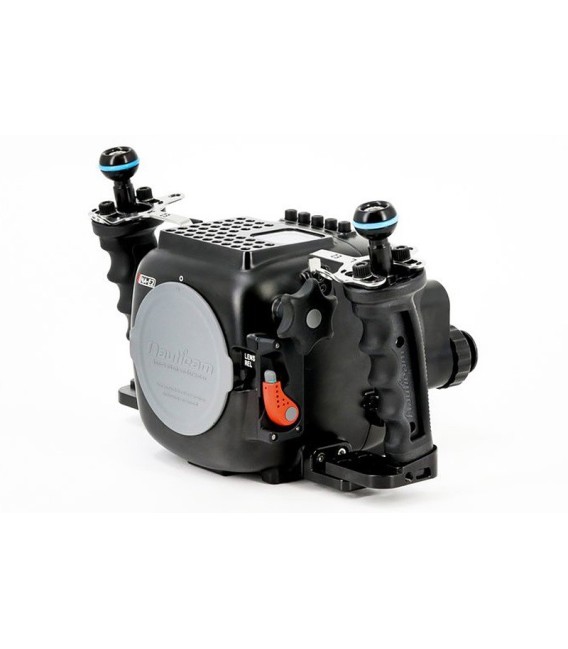

Nauticam NA-E2 16503

The NA-E2 sets the standard as the lightest and smallest raw-capable cinema housing ever produced.  Nauticam has been a leader in cinema housings with offerings for RED, ARRI, Canon, PhantomFlex, Sony and now Z Cam.

The NA-E2 uses the N85 port system, shared with Nauticam's other MFT platform cameras which allows for easy transition to the NA-E2 from other MFT Nauticam systems.  The N85 system also provides access to Nauticam's line of professional premium optics such as the WWL-1 and CMC-1/2.

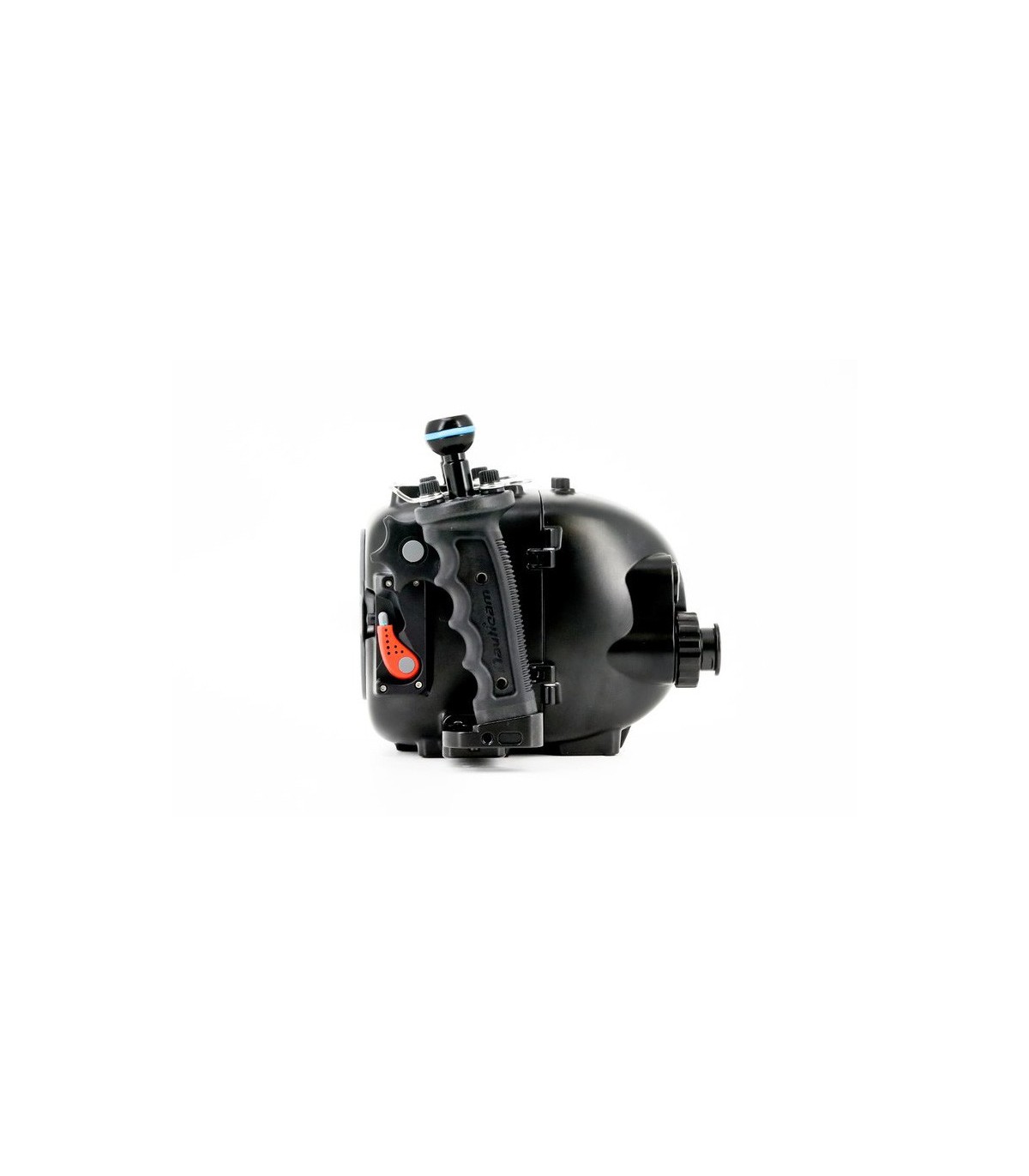

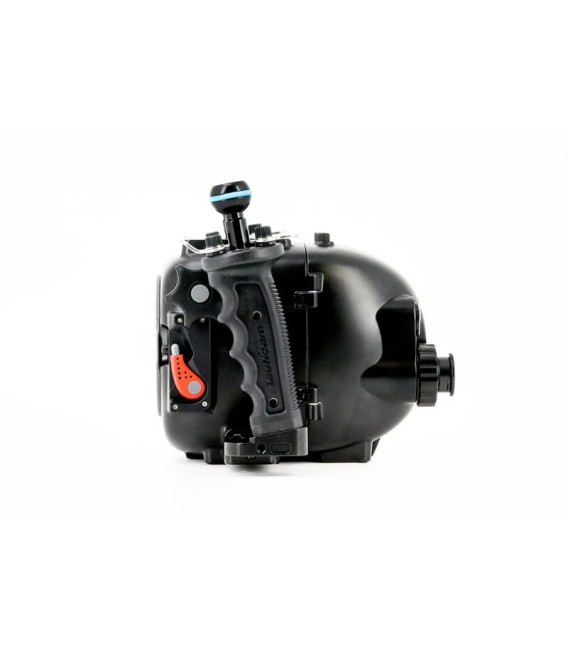

A dedicated record lever is located on the right side of the housing within easy reach of the adjustable ergonomic handles.  1/4"-20 size mounting threads are located on the top and bottom of the housing for easy mounting of cinema accessories.

The E2 supports Sony NP-F series batteries and the NA-E2 matches this compatibility up to and including the FP-970.

As with the NA-BMPCC2, the NA-E2 allows for the internal mounting of a Samsung T-5 SSD drive as recording media making the transition from capture to edit seamless.

The Z Cam E2 requires an external monitor and Nauticam produces several options for both SmallHD and Atomos monitors.  The NA-E2 features both an M28 and two M-16 bulkheads supporting both HDMI 2.0 (M28) and HDMI 1.4 (M16) connections.

HDMI OUTPUT

Required accessories for HDMI 2.0 Cable System

• 25079 M28A2R210-M28A1R170 HDMI 2.0 Cable (for NA-GH5V/E2 to use with Ninja V housing)

*a dedicated positioning cable clamp for 25079 is required

Required accessories for HDMI 1.4 Cable System

• 16243 HDMI A-D Cable in 0.5m Length for RED DSMC2/C200/EVA1/E2 (for internal connection)
• 25033 standard HDMI bulkhead with M16 thread
• (25033 is included in NA-058/502H/FHD5/502B-H monitor housing).

Recommended monitor housing

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor (with HDMI 1.4 input support)
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)

*With camera firmware 0.87, the maximum recording format for Ninja V with 25079 HDMI 2.0 cable is 4K30P.
