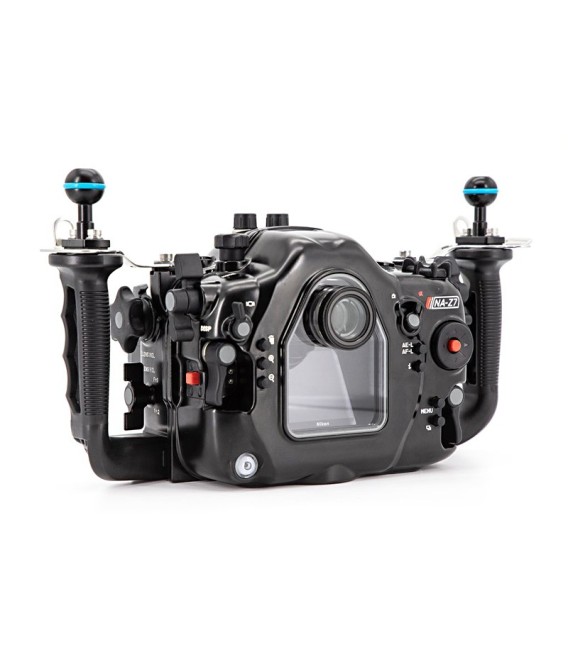

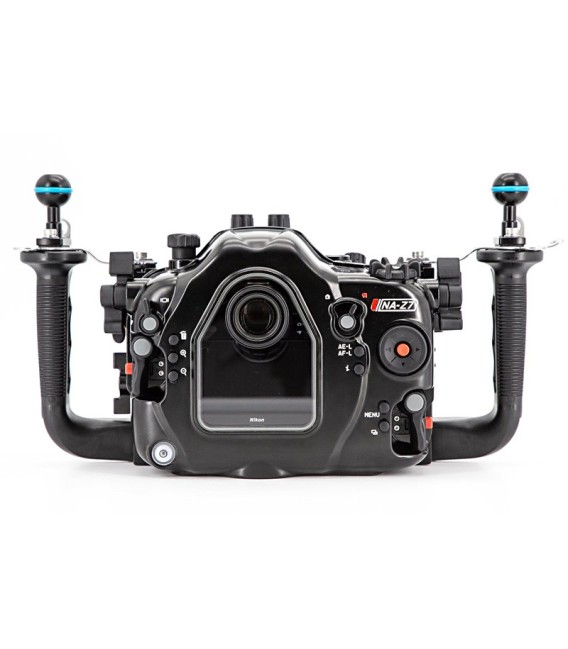

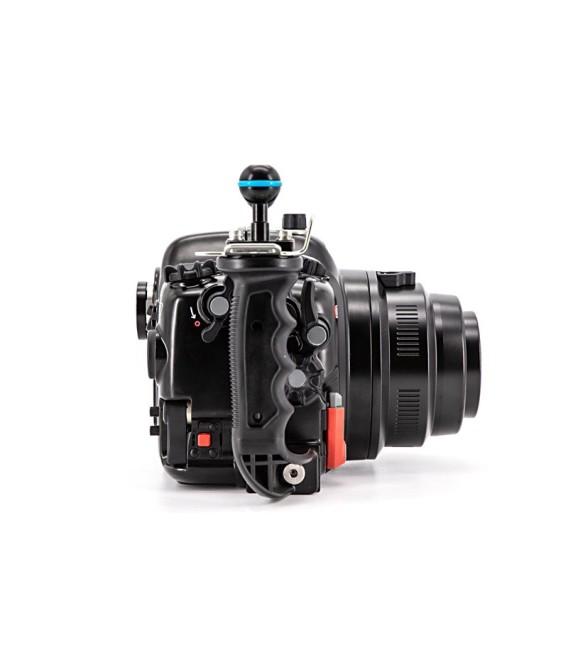

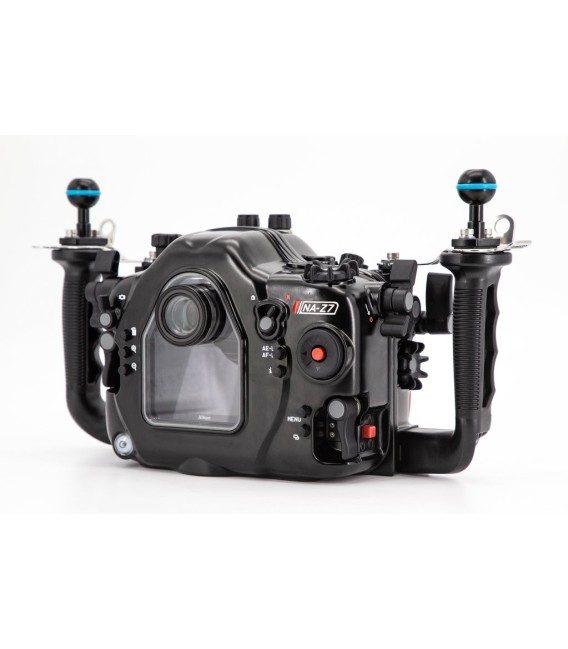

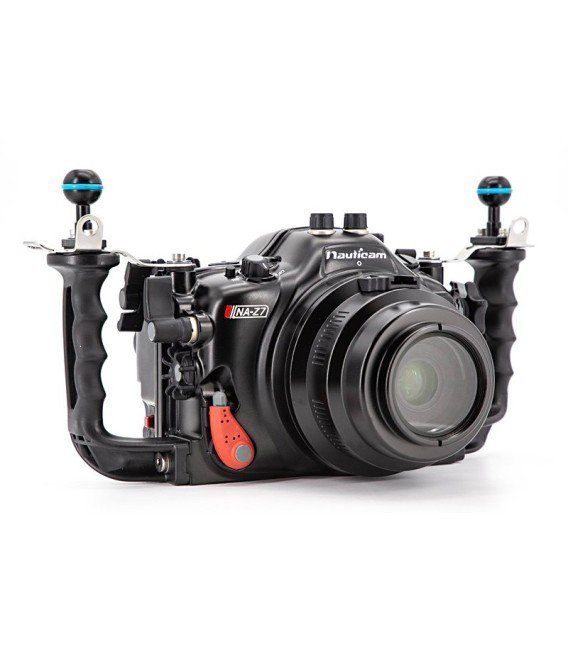

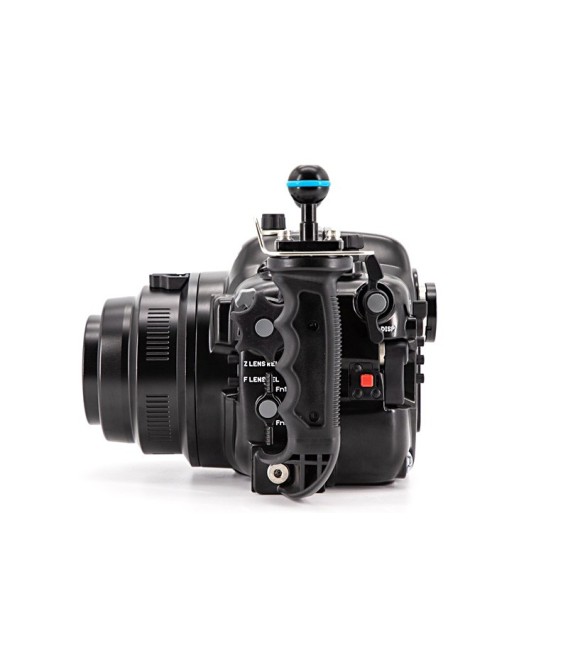

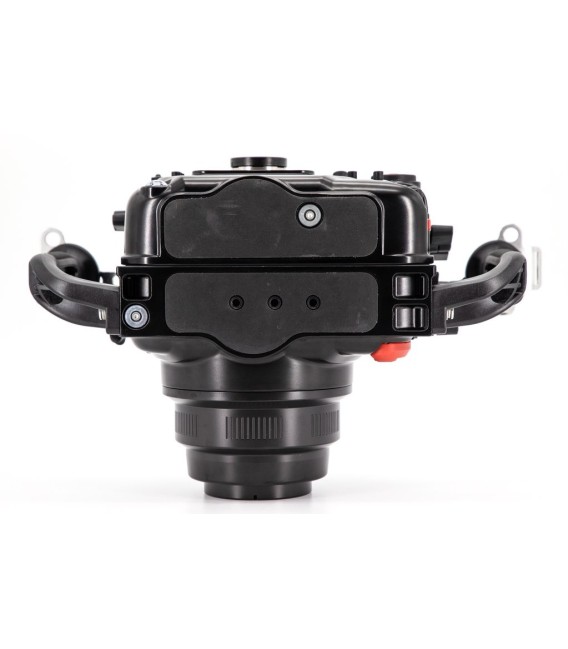

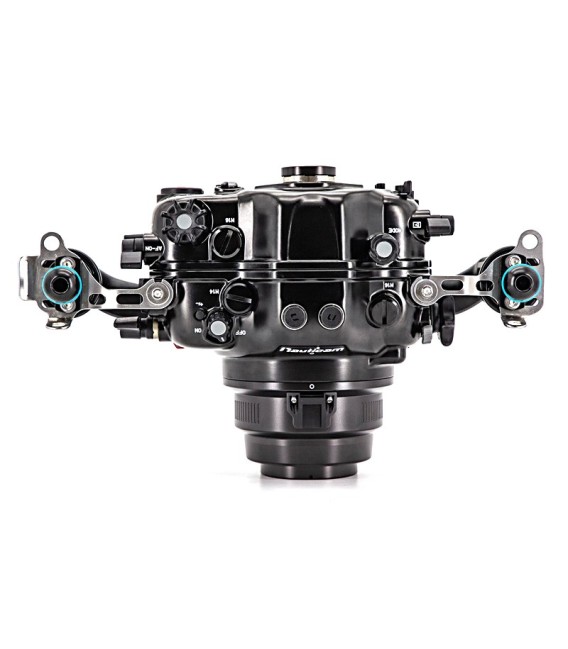

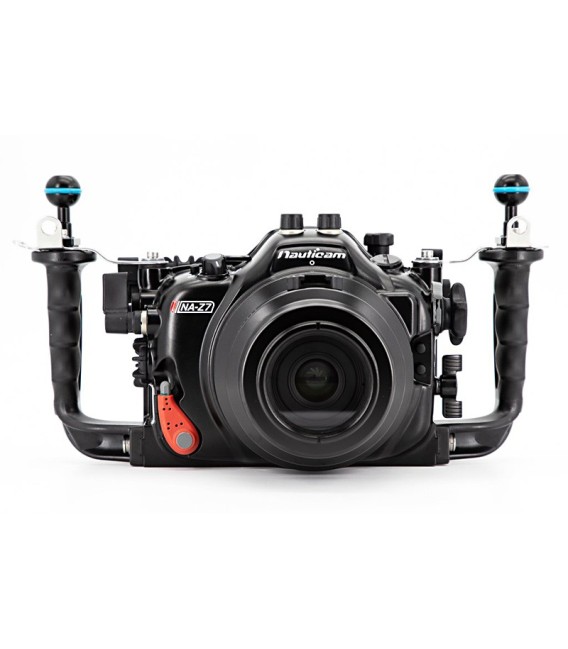

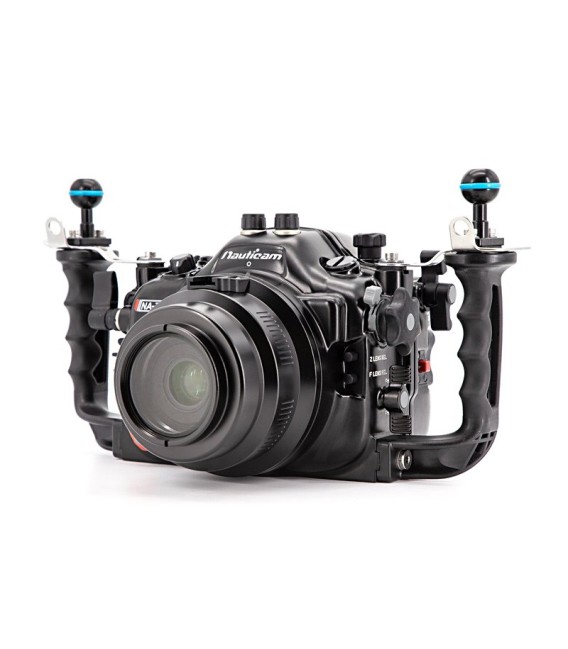

Nauticam NA-Z7V Housing 17223V

Nauticam has created housings for mirrorless full frame, APS-C and MFT format mirrorless cameras from a variety of camera manufacturers.   The NA-Z7V, just as Nikon's Z6/7 cameras is an evolutionary step in underwater housings blending the Nikon F mount and new Z mount seamlessly in one housing.

F AND Z MOUNT SUPPORT

The Nauticam NA-Z7V housing allows not only the use of the new Z mount Nikon glass but also the F mount lenses with the Nikon FTZ Adapter.  This is critical as the new Z mount lenses are being phased in over the next few years.  The Nauticam NA-Z7V housing features two lens release buttons that correspond to either F or Z mount lenses.  When switching between F and Z mount lenses, the camera must be removed from the housing to remove the adapter.  When working within either the F or Z mount system use the appropriate lens release button to switch lenses without having to remove the camera from the housing.  A vacuum system reset switch is located below the tray as well so there is no need to open the rear of the housing during lens or port changes.

The NA-Z7V is part of the N120 port system which allows for full support of Nikon F mount lenses with the same ports needed for their application on Nikon SLR housings.  As Z mount lenses become available Nauticam will add supported configurations.

FLASH TRIGGERING

The NA-Z7V comes with Nauticam's self powered manual flash trigger preinstalled.  The flash trigger plugs into the hot-shoe of the camera and uses LED lights recessed into each of the two optical bulkheads to trigger supported underwater flashes when used with the correct fiber optic connection.  The flash trigger is powered by coin cell batteries that provide thousands of flashes  per battery.  The flash trigger can be upgraded to support TTL triggering (PN 26308 TTL Converter for Nikon).

HDMI VIDEO OUTPUT

The Z7 camera supports 10 bit HDMI video output at UHD resolution (3840 x 2160) at up to 30p.  An external monitor or recorder can be used with the optional standard M16 HDMI bulkhead (PN 25033), HDMI (D-C) cable in 190mm length (PN 25036) which come standard in any Nauticam monitor housing package.  The NA-Z7V also features an M28 bulkhead which supports HDMI 2.0 output.  Atomos and Nikon have announced that video output over HDMI 2.0 from the Nikon Z6 and Z7 will be able to be recorded in the Apple ProRes RAW format on the Ninja V Monitor/Recorder.  Currently, when used with the Ninja V, the footage can be captured in high-quality ProRes 4:2:2 10-bit 30p UHD 4K using the Nauticam NA-Ninja V housing with HDMI 2.0 cable PN 25085.

VACUUM CHECK AND LEAK DETECTION SYSTEM

The NA-Z7V features Nauticam's vacuum check and leak detection system electronics preinstalled.  When paired with the M16 Vacuum Valve II, which is pre-installed (25625). the system gives a visual indicator of watertightness with the integrated multicolor LED.

TECHNICAL SPECIFICATIONS

Dimensions: 360mm x 200mm x 160mm (W x H x D)
Depth rating: 100m
Weight: 3.02kg
Port Opening: N120

WHAT'S IN THE BOX:

• Nauticam NA-Z7V Housing
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 90122 Housing O-ring, lubricant and removal tool
• CR2032 Battery (for vacuum system)
• Padded Travel Case
• Allen Wrench Set
