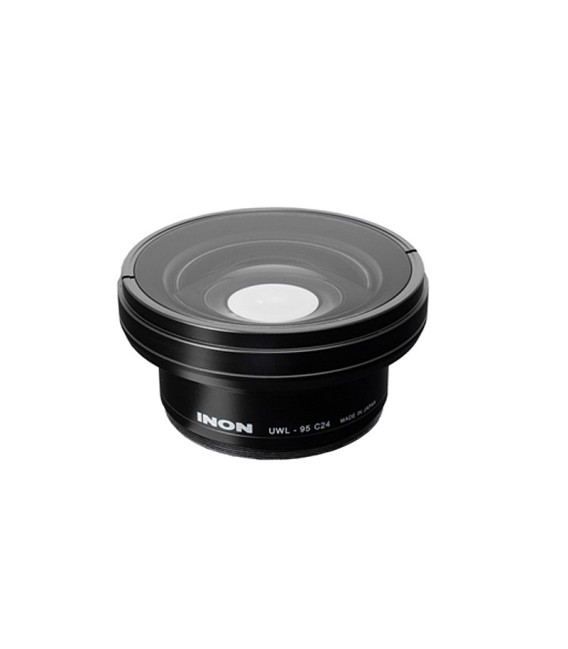

INON UWL-95 C24 M52 Wide Conversion Lens

Brand: INON

456212143969

New product

UWL-95 C24 M52 Wide Conversion Lens of INON

DISCONTINUED

More details

0,00 €

Out of stock. Please, check availability

Add to compare

Monday to Friday • Working hours from 09:00 to 14:00 and 16:00 to 19:00

More info

Maximum view angle is 95° underwater/159° in air (*1).  Combination with optional super wide option Dome Lens Unit IIIA/Dome Lens Unit IIIG further increases view angle underwater up to 141° (*1).

Totally renewed optical design effectively suppresses flare/ghost even in backlit condition to provide sharp and high quality image. The UWL-95 C24 is designed to support a camera of large 1.0 type sensor with bright master lens. Using the UWL-95 C24 can dramatically reduce minimum focusing distance enabling to get subject on the lens in focus both on land and underwater.

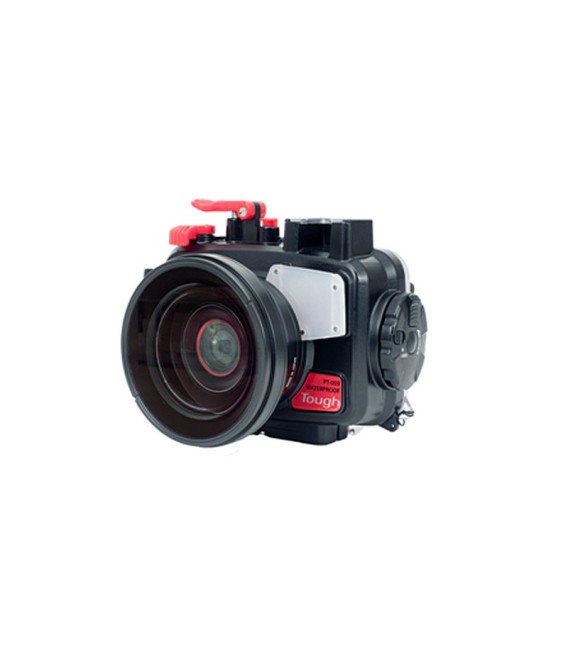

Lens compatible with Olympus TG-6/PT-059, TG-5/PT-058, TG-3,4/PT-056.

The lens mount is versatile M67 or M52 mount. The M67 version has two types either of Type1 or Type2 having different threaded thickness to bring out optimal performance of different combined master lens. Optional M67 Type1 Screw Ring for UWL-95 C24 or M67 Type2 Screw Ring for UWL-95 C24 is available to purchase making it easy to modify from M52 Mount to M67 Mount or convert original M67 type to the other type(*2).

(*1) Actual angle of view differs depending on camera/housing to use.
(*2) Depending on usage, original screw ring could be anchored due to salt build-up.  If you find any difficulties to remove original screw ring, do not proceed self modification and consult your purchasing dealer.

The UWL-95 C24 lens can be made more angular by adapting the INON dome III with versions in optical glass and polycarbonate, achieving coverage of up to 141° underwater. (This accessory is sold separately).

・Outer diameter                                         φ90.0 mm/3.5 in

・Length                                                    48.2 mm/1.9 in

・Weight                                                   [air] 605 g/21.3 oz  [underwater] approx.388 g/13.7 oz

・Mount system                                          INON M52 Mount

・Depth rating                                            60 m/196.9 ft

・Material                                                   Corrosion-resistant aluminum alloy

・Surface finishing                                       Rigid black alumite

・Glass/Coating                                          Optical glass/both side anti-reflection coating

・Lens construction/magnification                  3 groups 4 elements/0.63 (aforcal)

・Max. view angle (*1)                                [underwater] approx. 95°, [air] 159.0°


Data sheet
Mounting type Thread 52mm
Front element material Optical Glass
