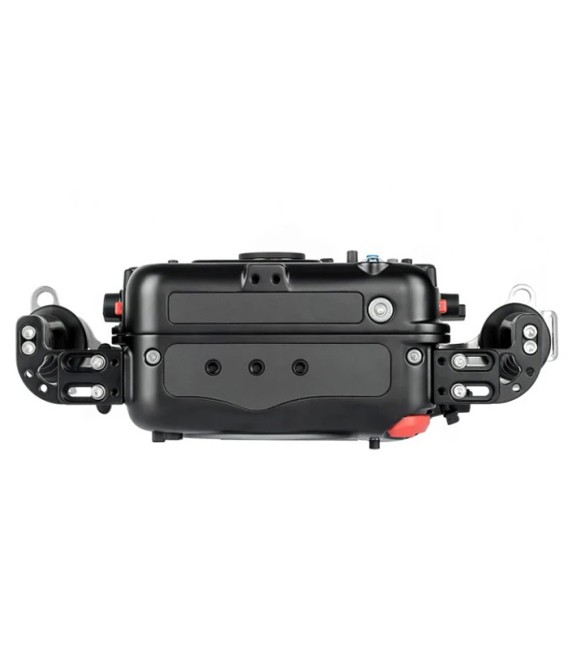

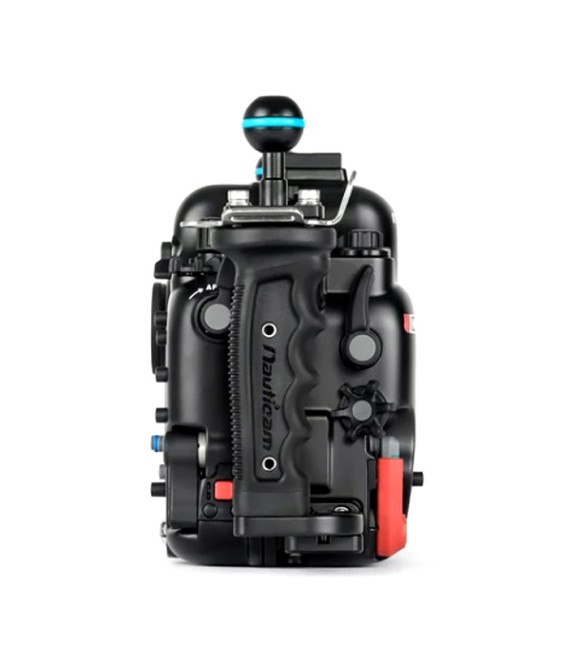

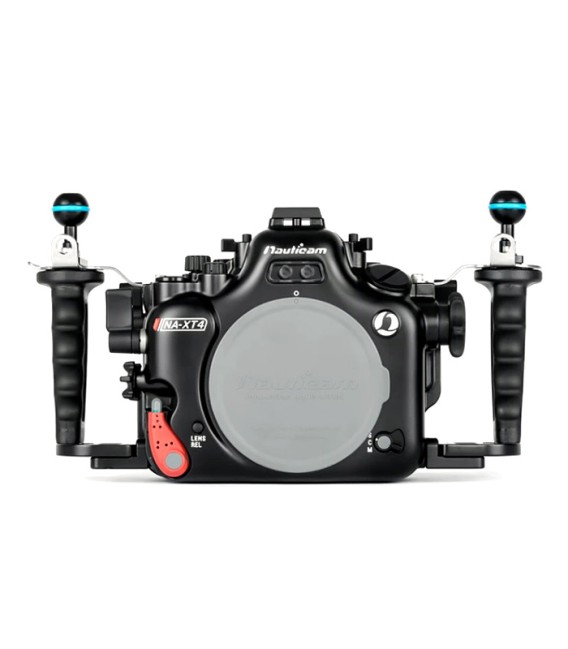

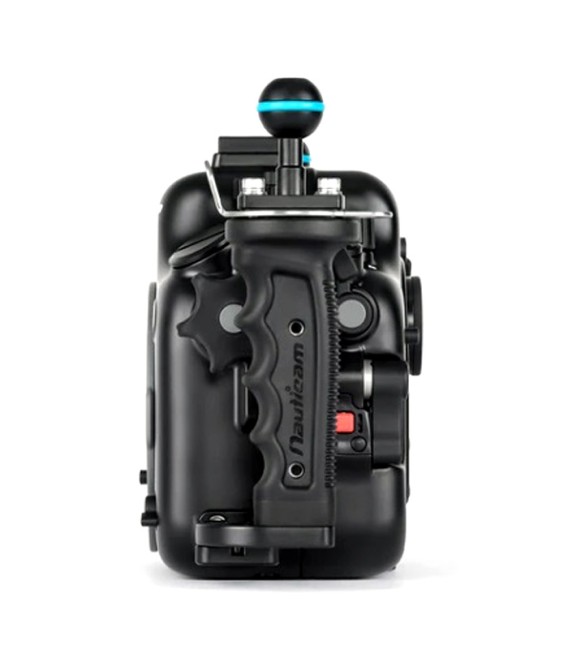

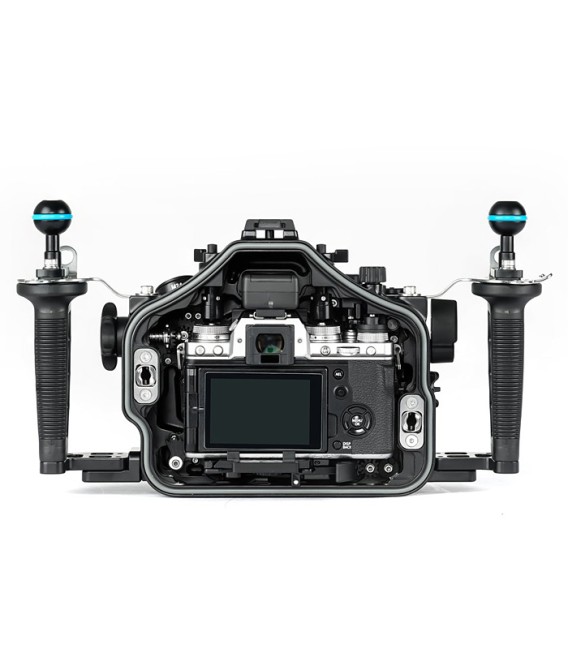

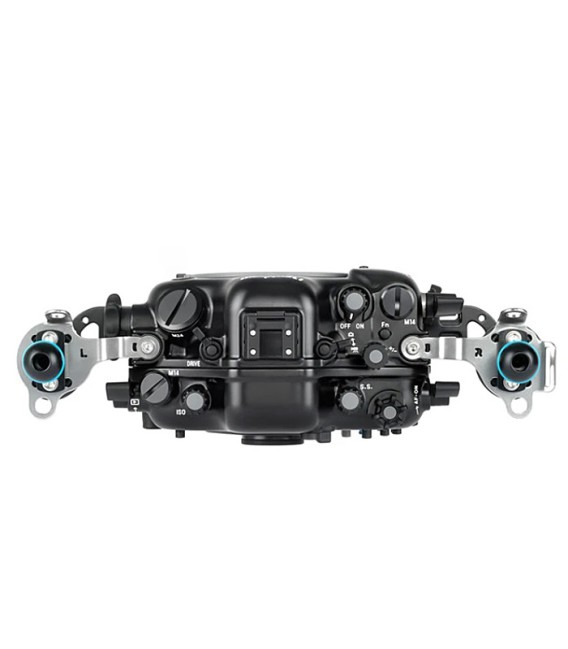

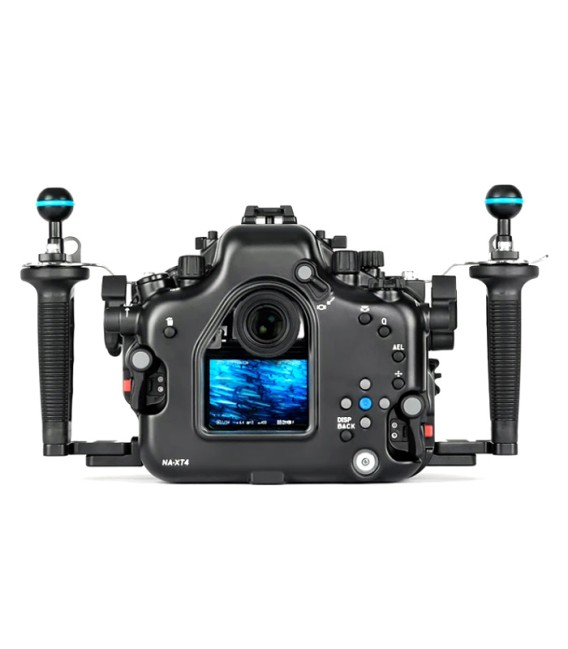

Nauticam NA-XT4 Housing 17157

The NA-XT4 features thumb levers near both handles, with the left thumb lever actuating the playback function and the right thumb lever the AF-ON control. The housing includes two M14 and one M24 bulkhead openings to accommodate a variety of accessories.

The NA-XT4 uses the N100 Port System shared with the Fujifilm XH1 and XT3 system. A selection of port options are available for a variety of lenses.

VIDEO RECORDING FEATURES

The impressive video specs of the X-T4 prompted the addition of some video-centric features to the NA-XT4. The base of the housing can accept Nauticam's Mounting Ball Set for Tripod (PN 25218).

As the X-T4 can output DCI/UHD 4K at 60p with 4:2:2 quality over HDMI, a new M24 bulkhead has been incorporated into the housing to support an HDMI 2.0 connection to the Nauticam Atomos Ninja V housing (HDMI 2.0) for Atomos Ninja V 5” 4Kp60 4:4:2 10-bit Recorder/Monitor/Player (17922).  An M24 Adaptor for HDMI 2.0 Cable (25086) is required when using the Nauticam Ninja V housing.

FLASH TRIGGERING

Reliable automatic flash exposure is available with the NA-XT4 and a variety of optically fired flashes, precisely reproducing the Fujifilm EF-X8 flash at a proportionally greater intensity. This system yields accurate automatic TTL flash performance – even in manual exposure mode – with no electrical sync cables to flood!

The NA-XT4 is also compatible with the Nauticam Mini Flash Trigger for Panasonic/Fujifilm (PN 26305). The Flash Trigger allows for rapid fire manual flash firing via fiber optic, with no camera battery drain.

The NA-XT4 comes fiber optic ready and accepts standard Sea & Sea style bushing connections. Nauticam Universal fiber optic cable system (PN 26216) for Inon, Sea&Sea strobes, provide exceptional light transmission for accurate TTL performance.

INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is pre-installed in the NA-XT4 as standard equipment. Combined with an optional M14 Vacuum Valve II (PN 25624), this monitoring system provides constant updates throughout the dive as to watertight integrity of the housing via a multi-color LED on the rear of the housing.

TECHNICAL SPECIFICATIONS
