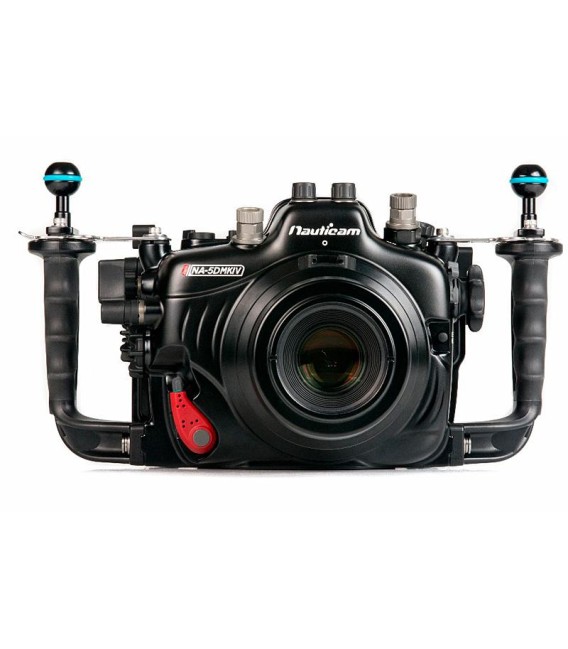

Canon EOS 5D MKIV Nauticam

While extremely similar to the 5D Mark III and 5DS cameras that came before it, small dimensional changes in the Mark IV body forced a new housing design.  The core control layout, proven by generations of existing housings in the field, is retained here. This design consistency results in immediate familiarity with the control layout for people that have used Nauticam housings before, and a thoroughly refined and field tested design for newcomers to the brand.

The new Nauticam NA-5DMIV housing incorporates technology from the Nauticam housings that came before it, but features enhanced ergonomics, more and better control access, and reduced size / weight thanks to cutting edge manufacturing processes.

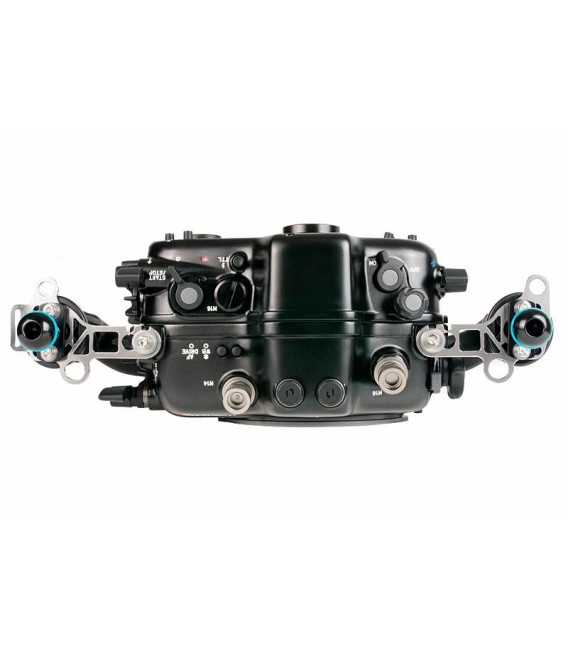

The NA-5DMKIV Housing comes standard with twin Nikonos flash connectors for electrical strobe triggering (pictured below).

The Nauticam TTL Flash Trigger is an ideal accessory for the still photographer.  This hotshoe mounted optical flash trigger provides automatic TTL Flash when used with Inon S-TTL and Sea & Sea DS-TTL Strobes connected by fiber optic cables.  The TTL trigger also offers manual triggering, including rear curtain sync, with any compatible slave strobe.
Accurate automatic TTL flash exposure has been a favorite feature of Nauticam photographers using cameras with pop up flashes, and the TTL Trigger unlocks this feature set in the NA-5DMKIV Housing. Powered by a single Canon NB-13L rechargeable battery, the TTL Trigger provides approximately 150 full power flashes.

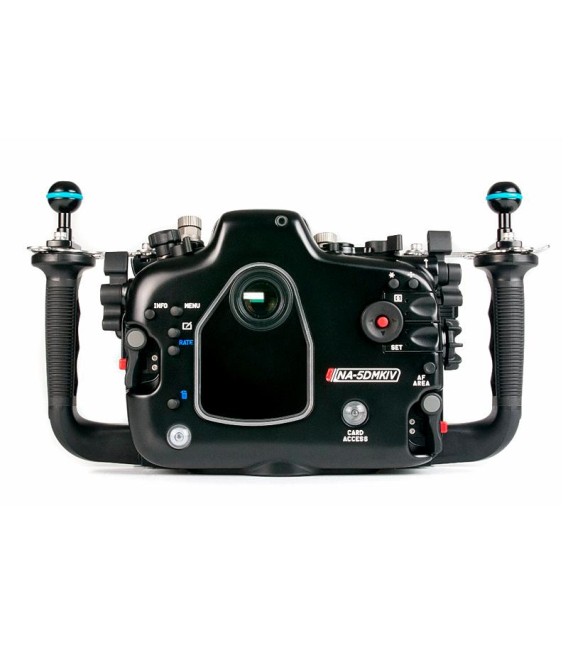

New in NA-5DMKIV, a window allows the flash trigger status LED to be clearly viewed, and the housing features a power button.  This LED provides important status info, and the power button allows the trigger to be activated underwater.

Optical TTL Strobe Compatibility:
Inon S-2000, D-2000, and Z-240
Sea & Sea YS-D1, YS-D2, and YS-01

An optional LED flash trigger is available for rapid fire optical triggering (manual power), and a new TTL Flash Trigger enables automatic flash exposure with compatible strobes.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-5DMIV as standard equipment.  Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing.  A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Ease of Use

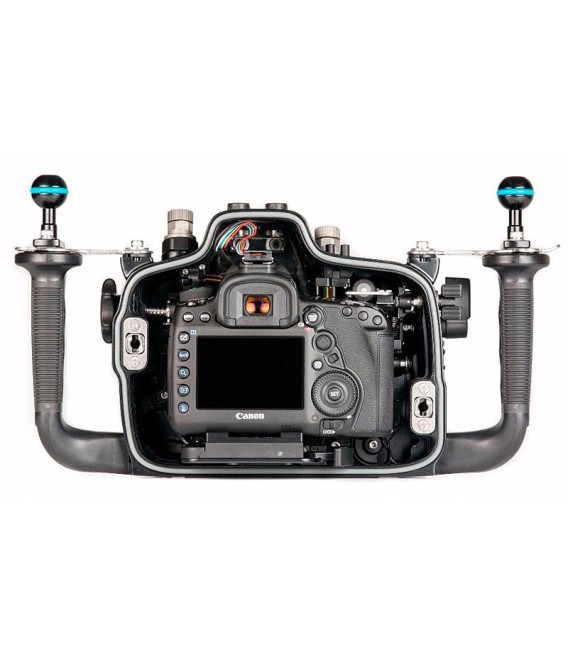

No competing system is easier to assemble or break down.  The camera drops into the housing with a quick release camera tray.  No controls need to be preset, as housing functions for dials and switches align automatically (on/off, af-m, still photo/video).   The large 120mm housing port opening allows even the largest popular pro Canon wide angle lens (11-24mm f/4) to be used, and the camera can even be mounted in the housing with this large lens attached.

Viewfinders
The standard optical glass viewfinder is very good and travel friendly, but many photographers prefer the ease of a magnified viewfinder with adjustable diopter. Nauticam produces a “straight” 180º enlarging viewfinder and a 45º angled enlarging viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high quality optics, and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in less than 30 seconds without using tools. Exceptional composition and focus accuracy have never been more accessible.

TECHNICAL SPECIFICATIONS

Depth Rating: 100m

Weight: 2.91kg

Dimensions: 187mm (W) × 135mm (H) × 358mm (D)

Port Opening: N120
