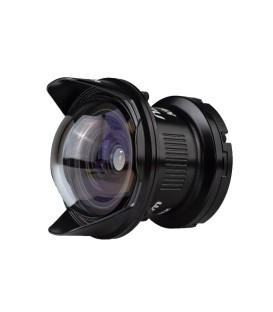

Nauticam MWL-1 lens 86201

The MWL-1 is a wet-mounted ultra wide lens (meaning it can be attached and removed underwater) designed to be used with a 60mm full frame equivalent macro lens that results in an ultra-wide 150º field of view. The MWL-1 can focus from the lens' front element to infinity.  Ultra wide angle and macro perspectives are now available on the same dive - even with full frame DSLR systems.

The MWL-1 can be mounted to supported M67 threaded ports using the Nauticam Bayonet Mounting System or with either a single or dual flip mount.

Technical Specifications

• Outer Diameter x Length: 108 mm x 120 mm
• Weight (air / water): 1.20kg / 0.58kg
• Body construction: Hard-anodized Aluminum Alloy
• Lens construction: 7 elements in 5 groups (one aspherical element)
• Lens coatings: Both side anti-reflective coating
• Focal distance: From front element of lens to infinity
• Field of view (underwater): 150° (FF. 60mm equiv.)
• Mount system: Nauticam Bayonet Mount or M67
• Depth rating: 100m

 Compatibility:

• The MWL-1 achieves optimal results at higher apertures (F16 and higher) on Full Frame Nikon AF-S Micro NIKKOR 60mm f/2.8G ED and APS-C Nikon AF-S Micro NIKKOR 40mm f/2.8G DX lenses. Yo may see more compatible lens in the "Download" tab.

What's In The Box?

• M67 to Bayonet Mount Converter II (83250)
• Hard Lens Cap
• Rear Lens Cap for WWL-1/MWL-1 (83221)
• Bayonet Mounting Ring for MWL-1
• Carrying Bag
• Cleaning Cloth

If you have doubts about compatibility with your lens and housing, don't hesitate to ask us.
