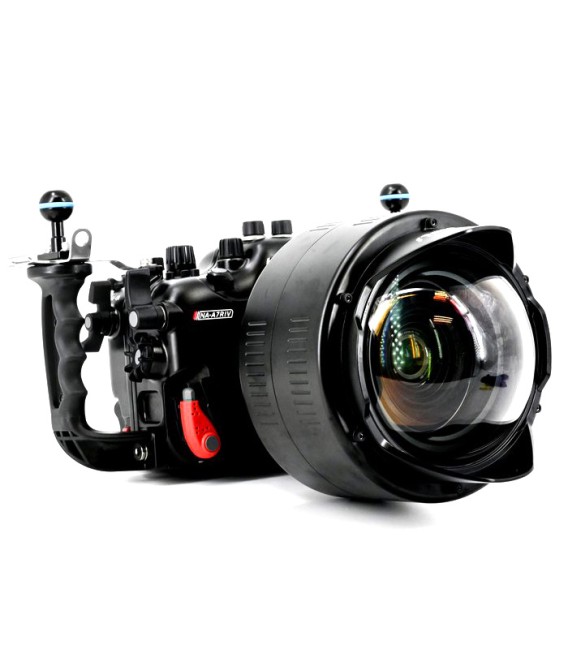

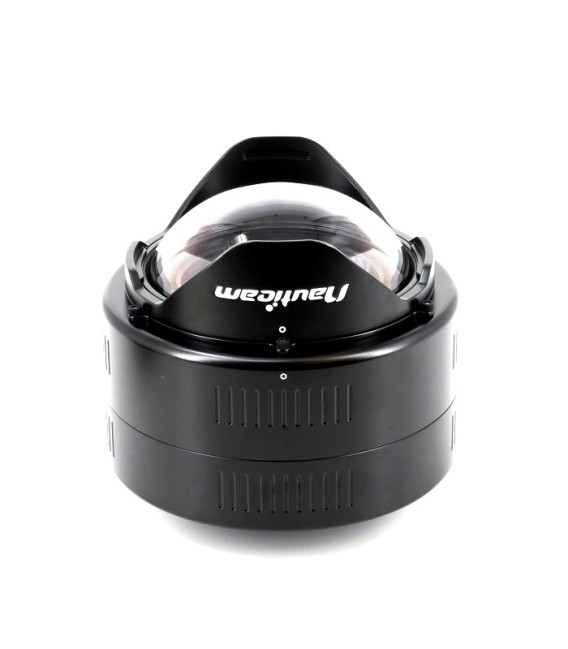

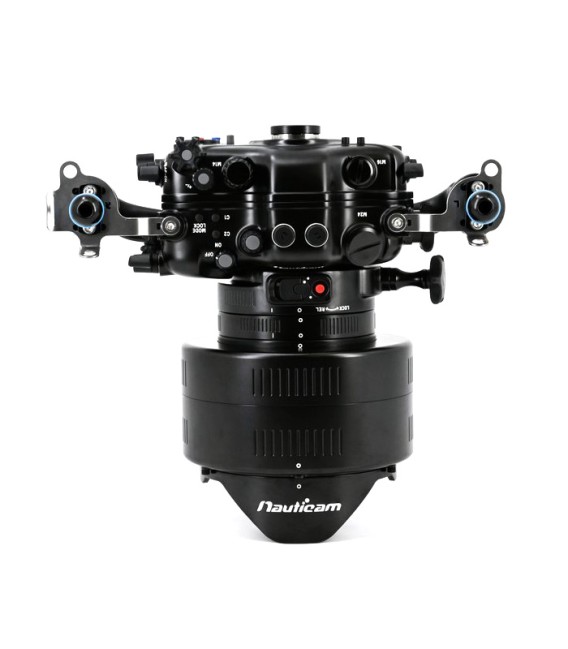

Nauticam WACP 85203

The WACP is a 0.36x Wide Angle Conversion Port.

Unlike traditional ports or wet-mate corrective wide-angle optics, the WACP is a "dry" corrective optic that modifies a 28mm equivalent lens to an extremely sharp 130º.

For full frame 28mm lens. Includes aluminium float collar and N100 extension ring 35.

FOCUS:

The WACP can focus from its front element to infinity allowing for extremely close-focus wide angle shooting. When used with certain zoom lenses, the WACP can provide a variety of field-of-view options.

BUOYANCY COLLAR:

An aluminum float collar is standard and brings the in-water buoyancy 0.32kg negative.

TECHNICAL SPECIFICATIONS:

Depth Rating 100m
Weight (in air) 3.90 kg
Weight (in water) 0.32kg
Body Construction Hard-anodized Aluminum Alloy
Lens Construction 6 Elements in 5 Groups
Lens Coating Anti-reflective on both sides

INCLUDED IN THE BOX:

Hard Lens Cap and rear port cap (N120)
N100 35mm port extension
Carrying Bag
Aluminium Float Collar

COMPATIBLE LENSES:

• Nikon AF-S Nikkor 28mm f/1.8G
• Nikon AF Nikkor 28mm f/2.8D
• Nikon AF Nikkor 28-70mm f/3.5-4.5D
• Canon EF 28mm f/1.8 USM
• Canon EF 28mm f/2.8 IS USM
• Canon EF 28-70mm f/3.5-4.5 II
• Canon EF 28-80mm f/3.5-5.6 II
• Canon EF 28-80mm f/3.5-5.6 V USM


  NOTE: for the Sigma 18-35mm F1.8 DC HSM | A lens, a dedicated optimized version of the WACP is available (85202).  This verison is for N100 Ports, for N120 please see 85201.
