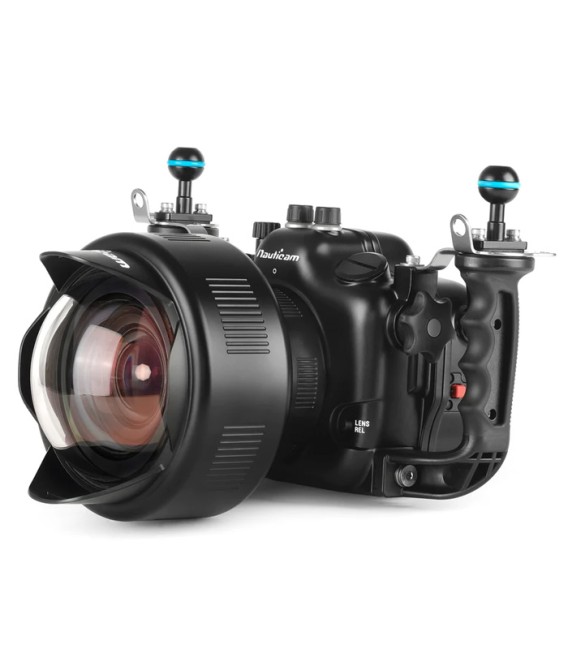

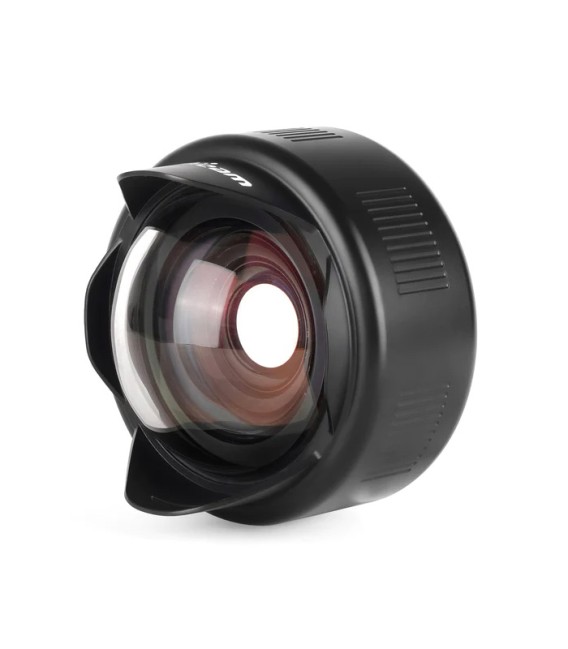

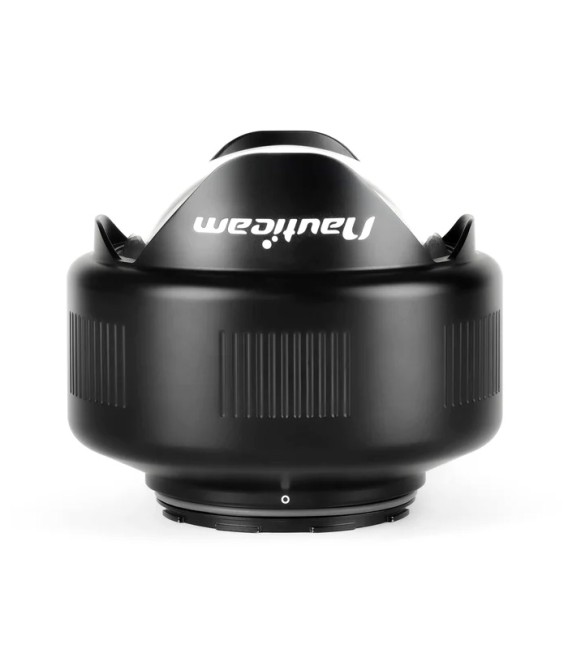

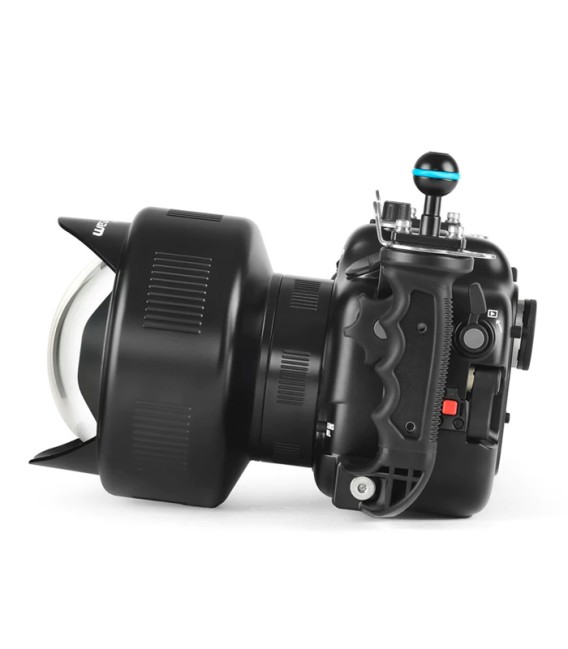

Nauticam WACP-C 85205

Brand: Nauticam

85205

AVAILABLE ON REQUEST
0.36X COMPACT WIDE ANGLE CONVERSION PORT (WACP-C). (INCL. FLOAT COLLAR)

More details

2 371,27 €

Out of stock. Please, check availability

Add to compare

Monday to Friday • Working hours from 09:00 to 14:00 and 16:00 to 19:00

More info

 It is optimized to work with professional camera lenses up to a full-frame equivalent focal length of 28mm and offers an amazing 130° angle of view.  The WACP-C can focus as close as the front element and captures images with minimal distortion.

Similar to WACP-1, the WACP-C greatly improves the overall image sharpness.  The WACP-C will provide approximately 3 f-stops of increased corner sharpness when compared to traditional wide rectilinear lenses with a similar field of view behind a dome port.  This means being able to achieve about the same corner sharpness with WACP-C at f/5.6 that you could achieve with your rectilinear lens behind a dome port a f/16.  As a point of comparison, WACP-1 provides approximately 4 f-stops of increased corner sharpness.

The WACP-C's zoom-through capability means the underwater filmmaker or photographer can capture astonishing wide, medium and close-up shots all with one lens while maintaining optimum optical and close-focus performance. Take for instance the Sony 28-60mm f/4-5.6 lens which receives a field-of-view range of 69º to 130º with the WACP-C. This lens allows for acquisition of more dynamic content on each and every dive without the need for a second camera.

A wide variety of lenses are supported, both primes and zooms for a variety of cameras. Please check the WACP-C PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.

TECHNICAL SPECIFICATIONS

Depth Rating 100m
Outer Diameter x Length DIA 170mm x 145.5mm
Weight (in air) 2.24 kg
Buoyancy (in water) Negative 0.1 kg
Body Construction Hard-anodized Aluminum Alloy
Lens Construction 6 Elements in 5 Groups
Lens Coating Anti-reflective on both sides
Port Mount N100
Depth Rating 100m
Focus Range Front element to infinity

Data sheet
Front element material Optical Glass
