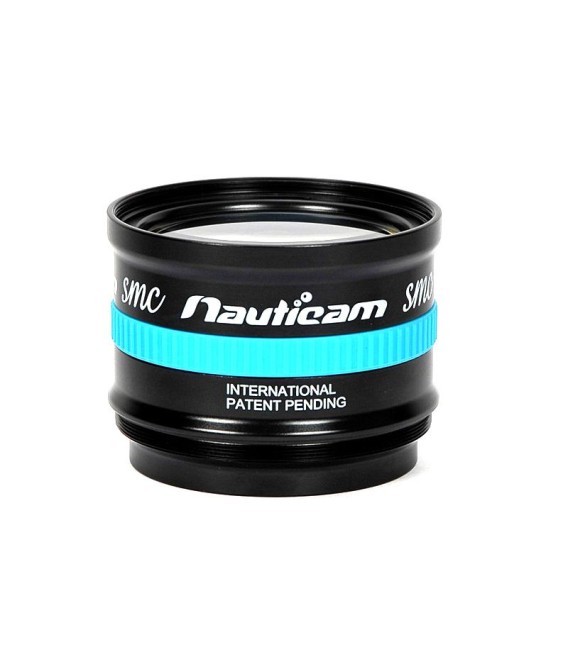

Nauticam SMC 1 81201

Prior to the Super Macro Converter, achieving “super macro” underwater meant using tools that were designed for in air use. These tools simply do not take into account the physics of shooting in water. The SMC takes a radically different approach: treat the system – camera, lens, port, air, and water – as a whole, and account for the air-water interfaces in a conversion lens design to achieve the best image quality possible. The improvement is stunning, measurable and a new standard in underwater macro imaging has been established.

Edward Lai, Managing Director of Nauticam, has utilized a revolutionary approach in developing the SMC.  This is a completely new lens design, developed through hundreds of engineering hours utilizing computer software to model the optical properties of the complete underwater imaging system.  Incorporating these factors into the design yields amazing sharpness, contrast, and clarity that isn’t available from a simple magnifying lens for use in air sealed in a waterproof enclosure.

The Super Macro Converter is constructed from lenses are precision crafted of specially formulated low dispersion optical grade glass, ground to the most demanding standards.  These exceptional measures, enhanced by broadband anti-refective coatings effectively reduce common optical issues such as chromatic aberrations, coma, spherical aberration, and field deformation associated with underwater macro photography using traditional magnifying lenses.  These optics are assembled in a rugged hard anodized aluminum housing, and nitrogen purged during assembly to eliminate fogging.

When combined with a full frame camera and a 100mm or 105mm macro lens, the device converts the optical system to provide a maximum of 2.3X magnification factor.  In other words, a subject area of 15.6mm X 10.4mm will fill the whole frame of a 36mm X 24mm sensor.

As the Super Macro Converter is optimized explicitly for using together with a macro lens underwater, images captured exhibit exceptional sharpness compared with conventional magnification lenses.  Thanks to the broadband multi-layer anti-reflection coating on each surface of the lenses, images also exhibit higher contrast.

High resolution was a primary design goal of the SMC project.  This has been achieved using computer aided optimization and high grade optical glasses with unique refractive and dispersion properties.  Images taken with this new system exhibit very high resolution and quality.   Results have exceeded expectations, and these images rival the quality of the macro lens in air.

Best suitable with:

Canon EF-S 60mm /2.8 Macro USM

Canon EF 100mm /2.8L Macro IS USM

Canon EF 100mm /2.8 USM

AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED

TECHNICAL SPECIFICATIONS

Depth Rating: 100m

Port Opening: M67

Dimensions:Ø 70mm x 54mm
Weight: 469 g. en tierra.
