Vacuum and moisture alarm 25601

Brand: Nauticam

25601

New product

Vacuum detection and moisture alarm PCB Set

More details

163,00 €

Out of stock. Please, check availability

Add to compare

Monday to Friday • Working hours from 09:00 to 14:00 and 16:00 to 19:00

More info

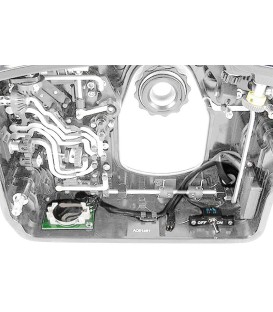

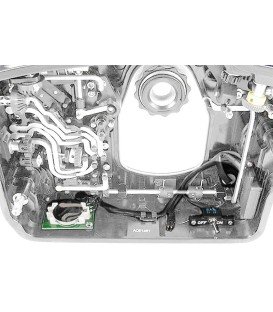

MONITORING CIRCUIT

The electronic monitoring circuit is compactly integrated into the housing’s leak detector, where it constantly measures the vacuum level and reports its status via a multi-color LED easily visible on the rear of the housing. This sophisticated circuit has an advanced temperature compensation capability, so changes in ambient temperature or changes in internal temperature won’t cause a false positive.

Starting with NA-70D for Canon 70D, all new Nauticam DSLR and Mirrorless Interchangeable Lens Camera housing models will ship with the electronic monitoring circuit installed as standard equipment. Vacuum valves are sold as optional equipment, allowing the user to customize the housing accessory configuration as needed. Understanding the LED color codes is very easy. At ambient pressure, the LED slowly blinks blue. When a solid vacuum is achieved, the LED changes to a solid green, indicating system integrity. If the vacuum starts to degrade, the LED begins to flash yellow, and if water intrusion is detected, the LED flashes red, and the audible alarm is sounded.

VACUUM VALVE

The second component of this system is a one way vacuum valve, which is available in several styles to support various housing configurations. These Vacuum Valves contain an integrated vacuum release, and a redundant waterproof cap. No tools are required to open the housing after creating a vacuum, as the vacuum is released with a simple knurled nut.

The basic valve uses a hand pump to create the vacuum, but a more advanced Dual Activation vacuum valve is also available. The Dual Activation Valve accepts a BCD Low Pressure Inflator Hose quick disconnect, and uses tank pressure to create a Venturi effect that pulls the vacuum. This is recommended for housings like Nauticam’s DCES for RED EPIC and SCARLET where the internal volume of the housing makes using a hand pump impractical.

“Offset” Extension Valves are used when a housing has a single accessory hole, but requires both a Vacuum Valve and electrical bulkhead to be installed in the same location. This will enable most housings to be able to utilize this valuable tool.

All vacuum valves also include a hand pump and spanner tool for installing valves.

THE BOTTOM LINE

This new system is the most advanced integrity check system available today, and the only one with integrated leak detection and temperature compensation. With it’s intuitive multi-colored LED status codes, the underwater photographer can now be assured with a simple glance that the watertight integrity of the housing is secure.


Data sheet
Alarm system type Moisture & Vacuum alarm
