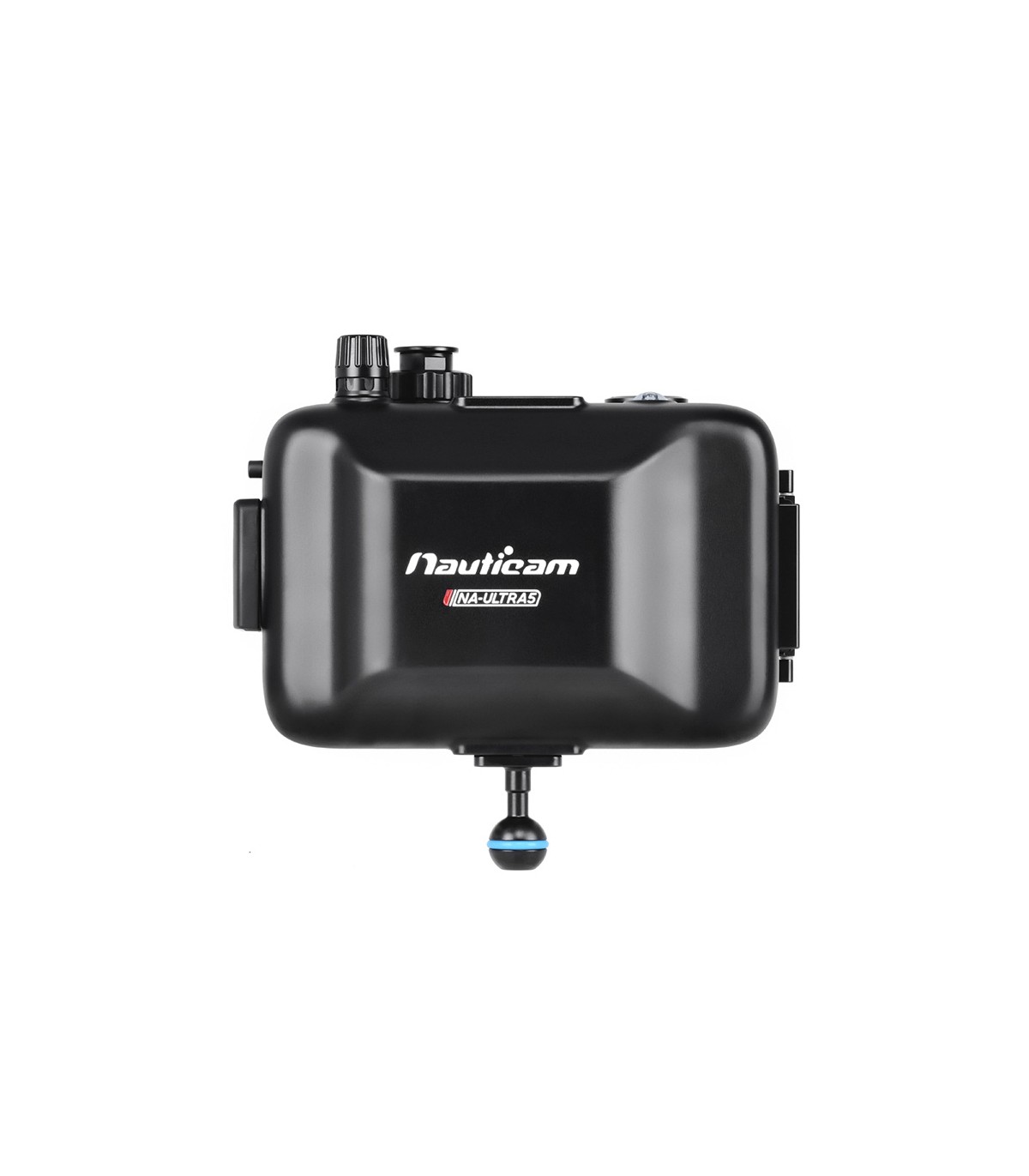

THE NA-ULTRA5 MONITOR UNDERWATER HOUSING

Nauticam has supported a variety of SmallHD monitors with underwater housings including support for both HDMI (1.4 and 2.0), SDI, cross-conversion even surface monitoring.  The NA-Ultra5 builds on this strong platform with the addition of supporting the camera control functions of the Ultra5 through the use of the dedicated control bundles below.

DEDICATED CINEMA CAMERA CONTROL BUNDLES

16265A Camera Control Cable Bundle for NA-Ultra5 (with SDI, Ethernet, Power Cables in one for ARRI mini LF/Alexa 35)

16265R Camera Control Cable Bundle for NA-Ultra5 (with SDI, Ethernet, Power Cables in one for RED Raptor/XL) *a special order is required for Cinema housing with M24 only

16265S Camera Control Cable Bundle for NA-Ultra5 (with SDI, Ethernet, Power Cables in one for Sony Venice II)

The NA-Ultra5 features two M28 accessory bulkheads at the top of the housing as well as one on the bottom to support cross conversion for surface monitoring.  There are dedicated 1/4-20 UNCx4 mounting points on the bottom and top of the housing as as M3 x4 threaded holes for use with Mounting Ball (17958).

The NA-Ultra5 supports the use of the SmallHD Micro Battery Plate for V-Mount when used with the Fxlion NANO ONE 50Wh 14.8V Ultra-Compact V-Mount battery.

The NA-Ultra5 comes with (25625) M16 Vacuum Valve pre-installed as well as Nauticam's Vacuum Check and Leak Detection system.

HDMI 2.0

For HDMI 2.0 monitoring configuration use the following cables along with the M24 Adaptor for HDMI 2.0 Cables (25086) or the M28 HDMI 2.0 Adaptor (25089) depending on the camera housing's port configuration

• 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-R5/R6/XT5 to use with Ninja V housing)
• 25087 M24D2R200-M28A1R170 HDMI 2.0 Cable (for NA-a2020 to use with Ninja V housing)
• 25094 M24A3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7SIII to use with Ninja V housing)
• 25098 M24D3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7C to use with Ninja V housing)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-A1 to use with Ninja V housing)
• 25703 M24A2R225-M28A1R170 HDMI 2.0 Cable (for NA-FX3 to use with Ninja V housing)

HDMI 1.4

For HDMI 1.4 monitoring configuration use the following cables with the (25082) HDMI 1.4 Cable for Ninja V Housing in 0.75m length (for connection from Ultra5 housing to the HDMI Bulkhead) along with the (25033) Standard HDMI bulkhead with M16 thread.

SDI

For SDI monitoring configuration use the 17926S SDI Cable Set for use with NA-Ultra5 (integral design for Cinema housing with M28 to use with Ultra5, right angle at each side.)  Note: For cinema housings with an M24 bulkhead a special order is required.

Recommended accessories for SDI configuration:

• 25058 M16 SDI Bulkhead
• 25080 M28 to M16 Step Down Adapter
• 25060 25060 SDI Cable in 0.4m Length
• 25064 15m SDI Surface Cable
• 25065 45m SDI Surface Cable

MONITOR MOUNTING

Recommended accessories for mounting the monitor housing

• 17951 Nauticam Monitor Housing Mounting System (from SN A158538 onwards.)
• 17952 Nauticam Atomos Shogun housing mounting adaptor for NA-A7RIII/α2020/A7SIII/α1//XT4/Z50.
• 17953 Nauticam Atomos Shogun housing mounting adaptor for NA-GH5SV
• 17954 Universal Tripod Plate for Nauticam Housings

Technical Specifications

• 17957 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-S1R/S1H/BMPCC6K/II/Z7II/1DXII/5DIV/1DXIII//R5/R6
