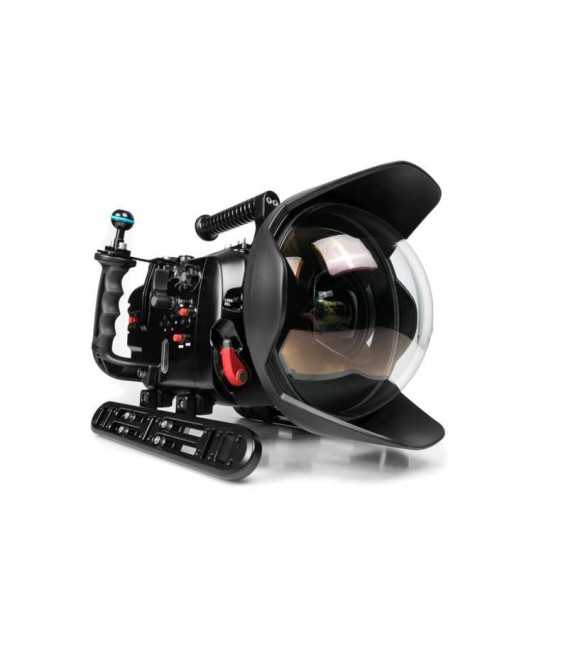

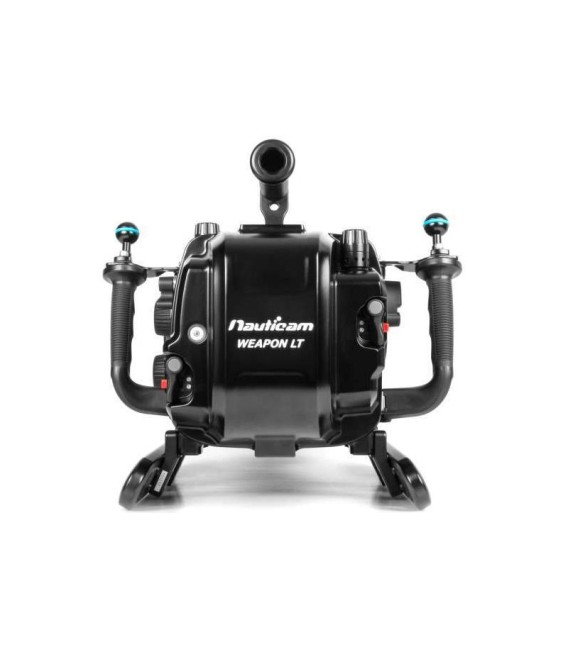

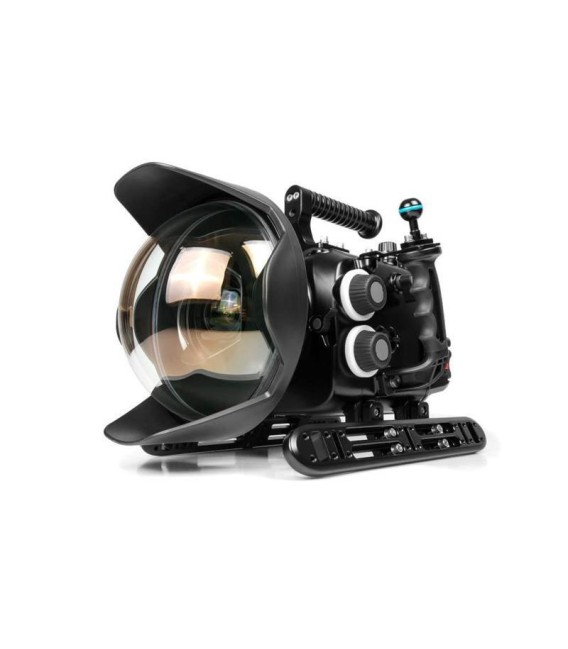

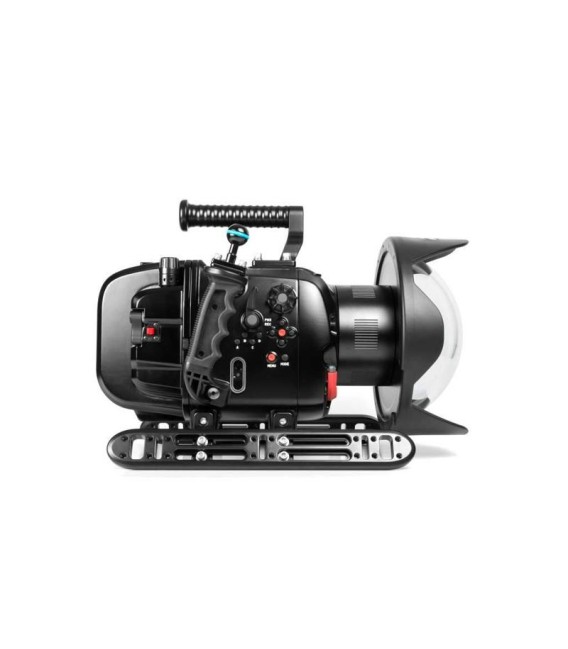

Red Weapon/Scarlet-W/Raven Nauticam

The Nauticam Weapon LT housing is the smallest, lightest, and easiest to operate underwater housing for RED Cameras available.  On location, the usability of this system is unmatched.  Set up and tear down in minutes, easily swap batteries and recording media while the camera is mounted in the housing, and lens changes in seconds.  The small size and light weight dramatically decrease resistance in water, especially when free diving.

This version of the housing uses the N120 port system which allows for the use of even the largest diameter DSLR lenses such as the Canon Ultra-Wide Zoom EF 11-24mm f/4 USM.  When paired with the Monstro VV sensor the Weapon will capture the full 126º05' rectilinear field of view.

EXTERNAL MONITOR SUPPORT

The Weapon LT housing supports the use of optional bulkheads to support a variety of external monitors with either SDI or LEMO connectivity.  With LEMO support the use of the REDTOUCH monitor is possible removing the need for monitor battery changes as was necessary with SDI monitors like the SmallHD.

DOUBLE BATTERY SUPPORT

With its extended rear cover, the Weapon LT allow for a double-stacked battery array when using supported battery systems allowing for additional time between battery changes.

ZOOM AND FOCUS CONTROL KNOBS

The Weapon LT features oversized mechanical zoom and focus knobs with erasable surfaces for focus/zoom position marks.  The internal gearing is moved away quickly via a small external lever to allow removal of the camera without disruption of focus/zoom gear alignment.

INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is shipped with Weapon LT as standard equipment.  Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing.  A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

TECHNICAL SPECIFICATIONS
