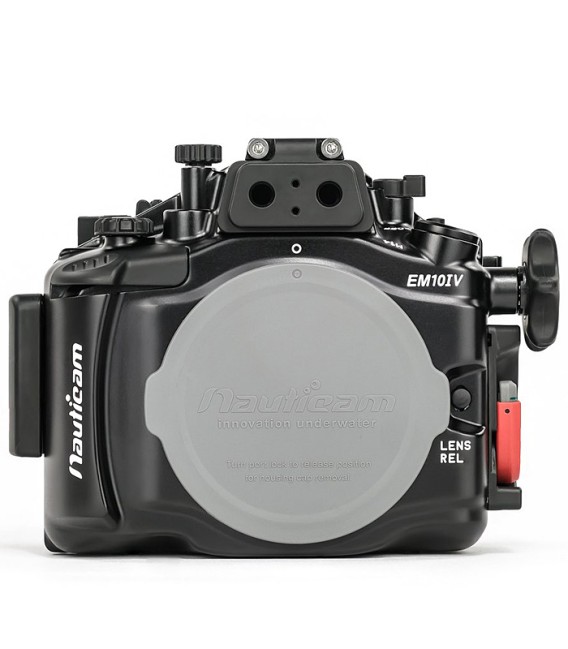

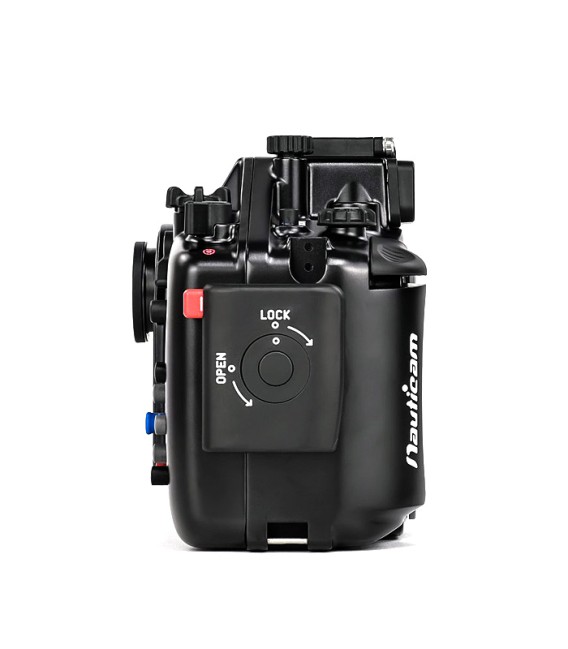

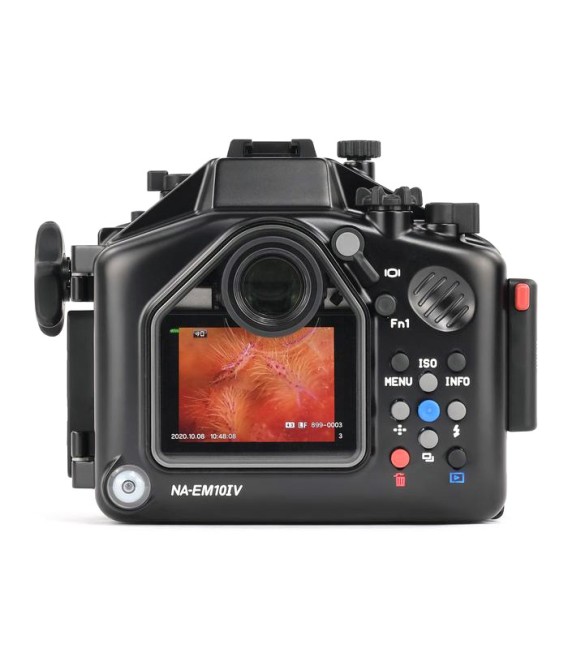

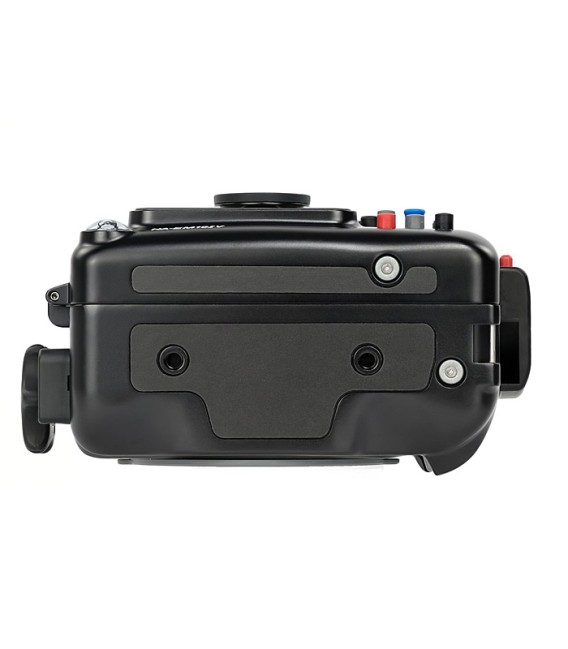

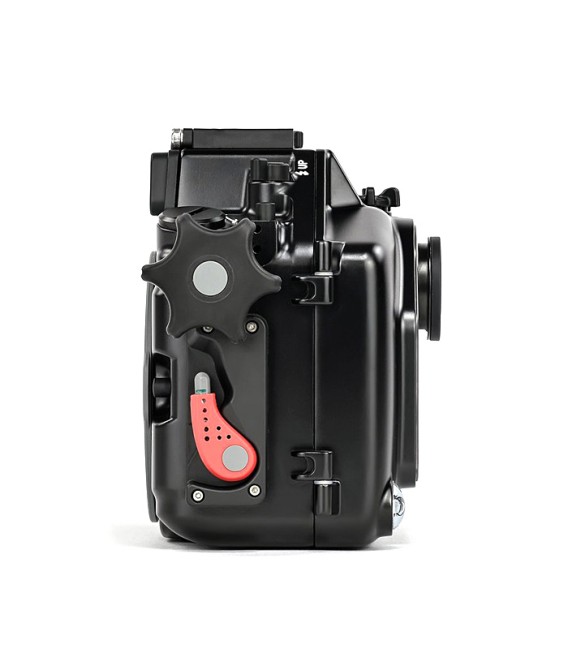

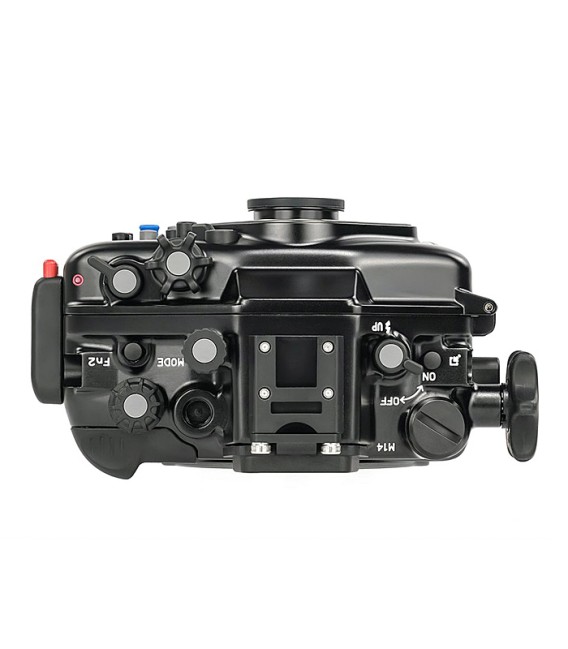

Nauticam NA-EM10IV Housing 17818

The NA-EM10IV is designed with Nauticam's Mission Control philosophy in mind.  Essential camera controls are placed where they are needed most.  The NA-EM10IV's design reflects the ultra-portable nature of the camera itself, making the housing system that's truly travel-friendly.  The housing ships with stainless steel stiffening brackets and shutter release extension that work with the optional Easitray II or Felxitray II handle systems to insure the resulting setup is a stable platform for the attachment of lighting or other accessories even when using large strobes or video lights.  The housing also features an M10 threaded mounting point atop the housing for additional flexibility.

FLASH TRIGGERING

The OM-D E-M10 Mark IV features an integrated pop-up flash capable of providing  either a manual or an automatic flash power control signal (TTL).  The Nauticam NA-EM10IV features built-in fiber optic bulkheads to support the use of the camera's TTL when used with supported strobes and fiber optic cables.  There's no need to pop-up the flash before inserting the camera into the housing as it can be engaged via a dedicated control atop the housing.  An optional electronic bulkhead with hotshoe connection is also available but does not support a TTL signal.

VACUUM CHECK AND LEAK DETECTION SYSTEM

The NA-EM10IV comes with Nauticam's vacuum check and leak detection system installed as standard equipment. With the addition of the optional M14 Vacuum Valve (25624) this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

TECHNICAL SPECIFICATIONS
