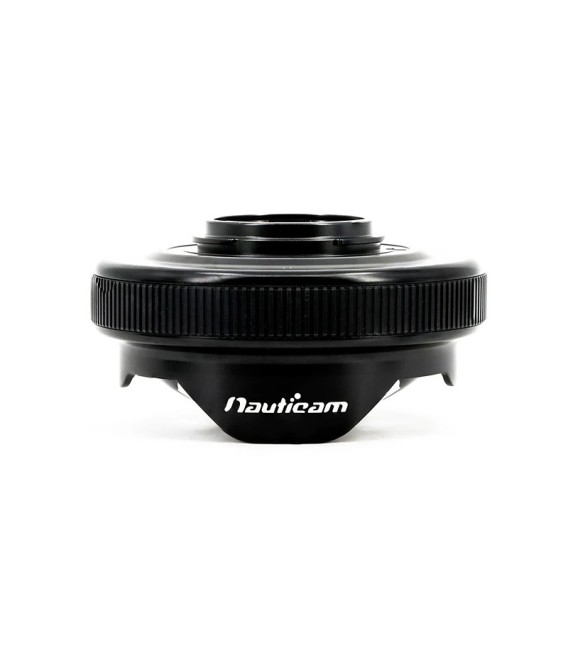

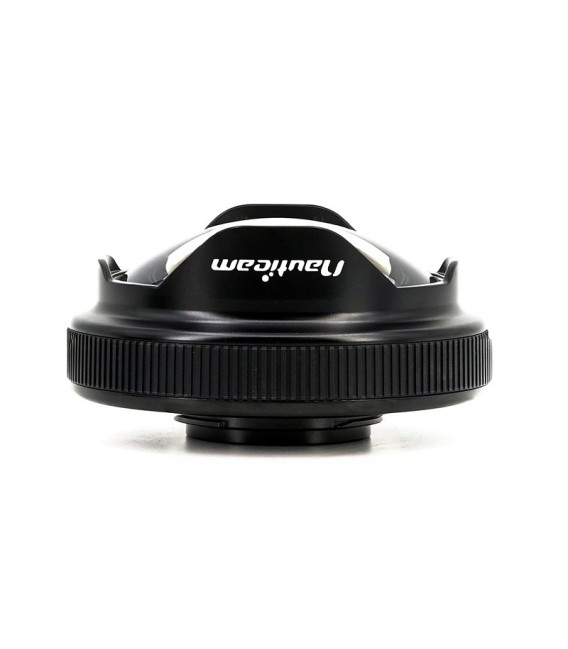

WET WIDE LENS FOR COMPACT CAMERAS (WWL-C). 130º FOV WITH COMPATIBLE 24MM LENSES

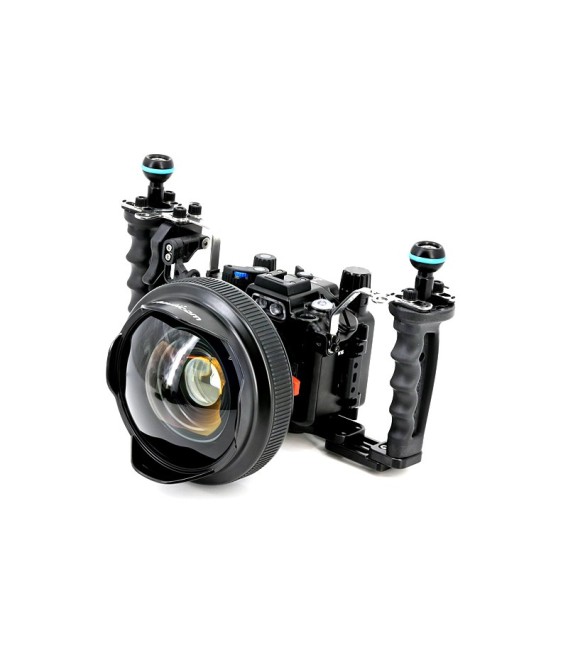

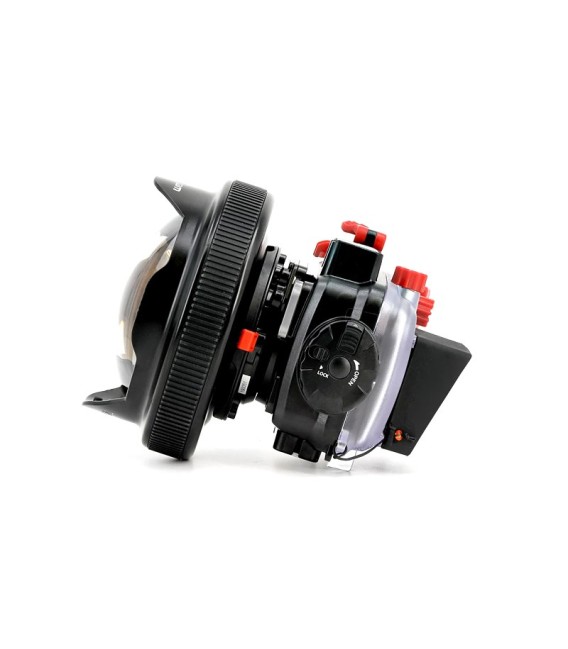

As the versatility and capability of compact cameras increases, Nauticam has developed a smaller and lighter water contact wide angle lens tailored specifically to the compact camera user. Designed from the ground up to match the compact camera's form factor without sacrificing optical quality, the WWL-C is a powerful addition to not only Nauticam compact housings but also, via an optional adapter, to those from other manufacturers such as the Olympus TG-6 and their PT-059 housing.

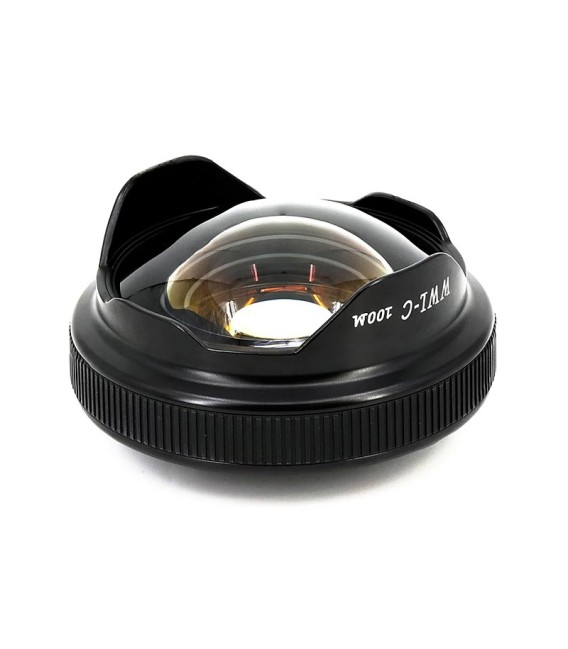

Delivering a stunningly sharp 130º field-of-view with 24mm equivalent lenses, the WWL-C also features zoom-through capable optics.** The WWL-C features a pre-installed metal buoyancy collar and a non-removable metal dome shade.
The WWL-C will also feature an updated quick-release Bayonet Mount. Lenses that feature the new Bayonet Mount II will not be compatible with previous Bayonet Mount adapters but all Bayonet Mount lenses will be able to be used with the new Bayonet Mount II Bayonet Mount Adapters without modification.
TECHNICAL SPECIFICATIONS
| Dimensions | Dia. 146mm x 79mm |
| Weight in Air | 1.05kg |
| Weight in Water | 0.25kg |
| Lens Construction in optical glass | 4 elements |
| Lens Coatings | Anti-reflective on both sides |
| Dome | Multi-layer Broad-band Antireflective Coating |
| Focal Range | Front Element to Infinity |
| Maximum Field of View (underwater) | 130º for 24mm equivalent lens |
| Mounting System | Bayonet Mount |
| Depth Rating | 100m |
Expected Camera Compatibility Table:
| HOUSING | ADAPTER OR PORT | USABLE FOCAL LENGTH |
| NA-RX100VII | 38705 N50 Short Port 19 with bayonet mount | TBD |
| NA-RX100VI | 38704 N50 Short Port 22 with bayonet mount | 24-50mm |
| NA-RX100V | 823250 M67 to Bayonet Mount II Converter | 24-70mm |
| NA-RX100IV |
|
|
| NA-RX100III |
|
|
| NA-G7XIII |
|
24-50mm |
| NA-G7XII/G7X | 38703 N50 Short Port 25 with bayonet mount | 24-50mm |
| NA-LX100II |
|
24-30mm |
| NA-LX100 |
|
24-30mm |
| NA-TG5 | 83255 Bayonet Converter for NA-TG5 to use WWL-1 and WWL-C | 25-100mm |
| Olympus PT-058/59 | 83256 Bayonet Mount Converter for Olympus PT-058/59 to use with WWL-1/WWL-C | 25-100mm |
