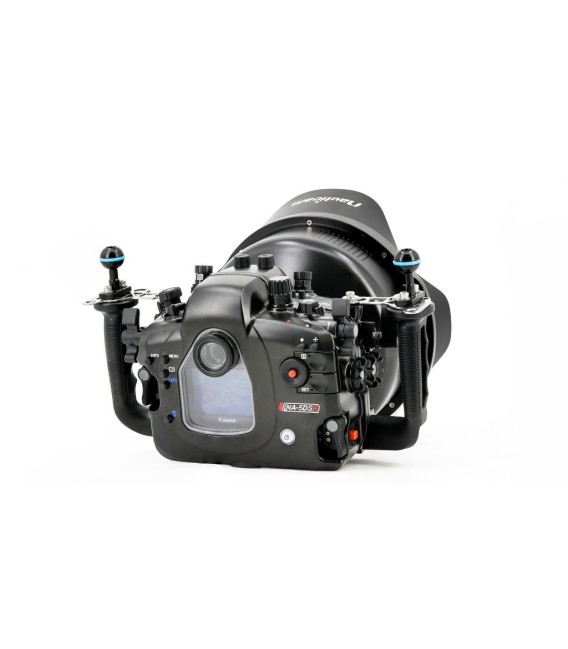

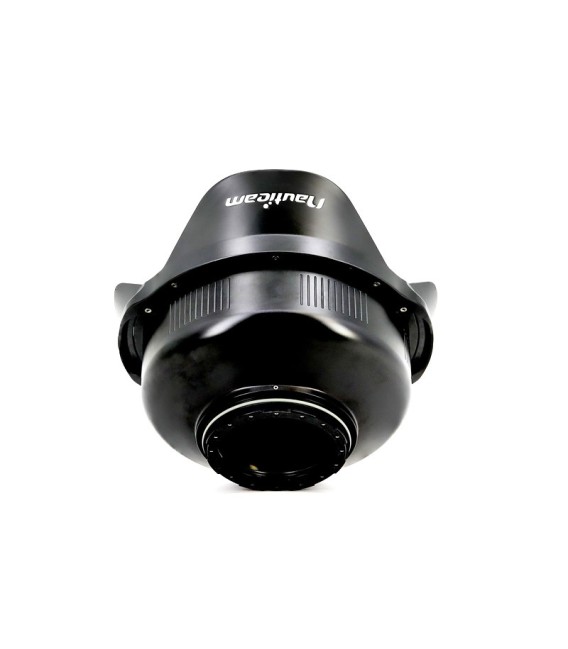

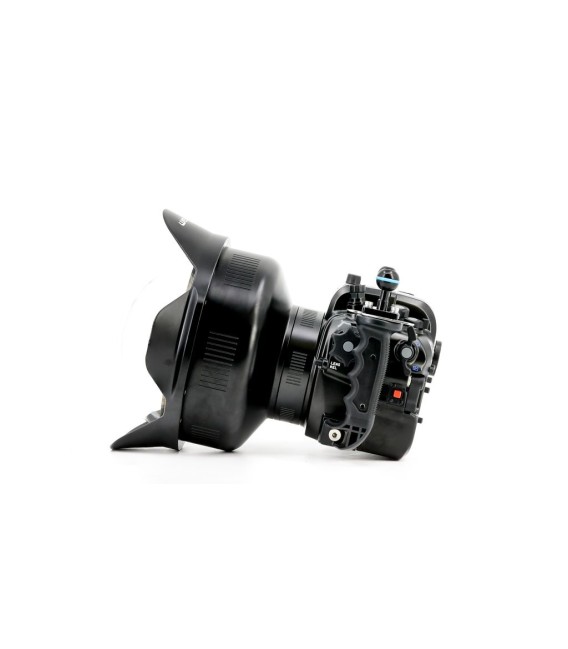

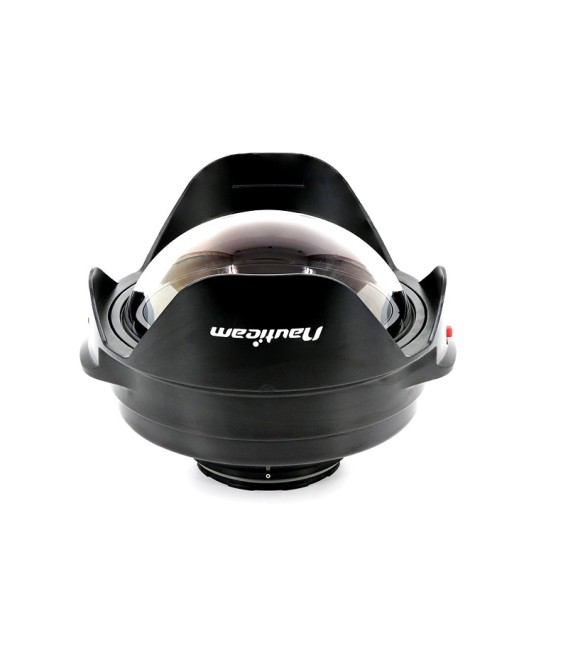

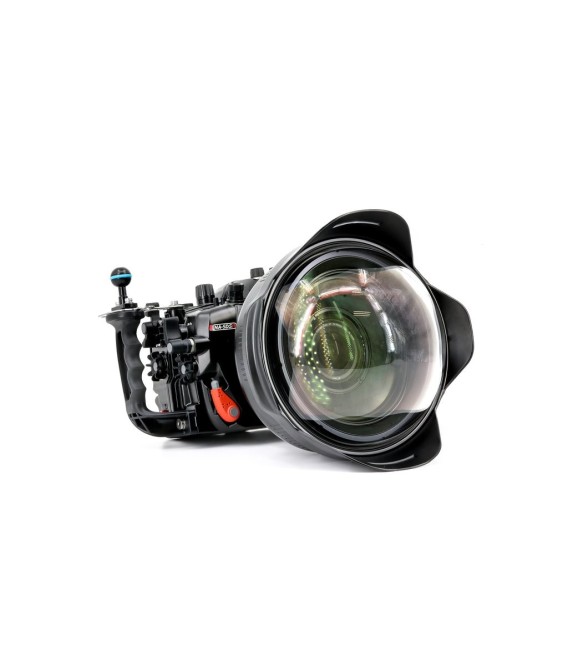

Nauticam WACP-2 85204

Brand: Nauticam

85204

AVAILABLE ON REQUEST
0.8X WIDE ANGLE CONVERSION PORT 2 (WACP-2). 140 DEG. FOV WITH COMPATIBLE 14MM LENSES (INCL. FLOAT COLLAR)

More details

6 705,00 €

Out of stock. Please, check availability

Add to compare

Monday to Friday • Working hours from 09:00 to 14:00 and 16:00 to 19:00

More info

The WACP-1 has set the standard for what is possible when cutting-edge lens design is applied to underwater imaging, delivering an ultra-sharp 130º field-of-view close-focus low-distortion corrective optic.  While the WACP-1 was designed to work primarily with 28mm equivalent lenses, the WACP-2 is optimized to work with 14mm lenses to produce an unparalleled 140º field-of-view while maintaining full zoom-through optical capability.

The WACP-2 is also able to focus in air, making it an even more capable imaging tool adding the ability to capture over-under images and even filming topside in wet environments.  WACP-2 maintains the exceptional close-focus characteristics of the WACP-1.

The WACP-2's zoom-through capabilities means the underwater filmmaker or photographer can capture establishing, medium and close-up shots all with one lens while maintaining optimum optical and close-focus performance.  Take for instance the Nikkor Z 14-30mm F/4 S lens which receives a field-of-view range of 81º to 140º with the WACP-2.  This lens allows for acquisition of more dynamic content on each and every dive without the need for a second camera.

A radical new shade design allows for extending the shade out past the front element at longer focal lengths or during transport to further protect the dome while at wider focal lengths it retracts to prevent vignette.

PRELIMINARY TECHNICAL SPECIFICATIONS

 Outer Diameter x Length 280 x 213mm
Weight (in air) 7.06kg
Weight (in water) 0.85kg
Lens Construction 4 elements in 4 groups
Depth Rating 100m
Port Opening N120

COMPATIBILITY INFORMATION



Full Frame Canon EF Mount   AOV Range
Canon EF 16-35mm f/2.8L III USM

128°-72°
Canon EF 16-35mm f/4L IS USM


128°-72°

Full Frame Canon RF Mount
Canon RF 15-35mm f/2.8L IS USM

133°-72°

Full Frame Nikon F Mount
Nikon AF-S 17-35mm f/2.8 IF ED

123°-72°
Nikon AF-S NIKKOR 16-35mm f/4G ED VR

128°-72°

Full Frame Nikon Z Mount
Nikkor Z 14-30mm f/4 S

140°-81°

Full Frame Sony FE Mount
Sony SEL1635GM FE 16-35mm F2.8 GM

 128°-72°
Sony SEL1635Z Vario-Tessar T* FE 16-35mm F4 ZA OSS
  128°-72°




Data sheet
Front element material Optical Glass
