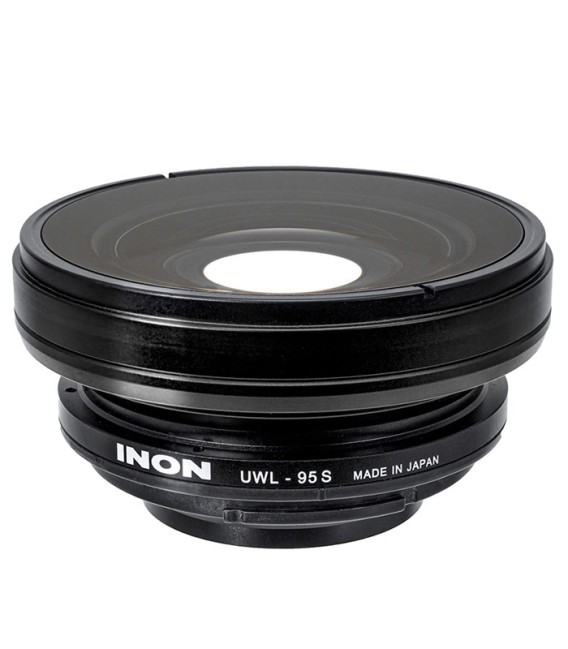

INON UWL-95S XD Wide Conversion Lens

Maximum view angle is 95° underwater/159° in air (*1).  Combination with optional super wide option Dome Lens Unit IIIA/Dome Lens Unit IIIG further increases view angle underwater up to 141° (*1).

Totally renewed optical design effectively suppresses flare/ghost even in backlit condition to provide sharp and high quality image. The UWL-95S is designed to support a camera of large 1.0 type sensor with bright master lens. Using the UWL-95S can dramatically reduce minimum focusing distance enabling to get subject on the lens in focus both on land and underwater.

Lens compatible with Olympus TG-6/PT-059, TG-5/PT-058, TG-3,4/PT-056.

The lens mount is designed for the INON XD Mount System for quick lens attachment and removal underwater.

(*1) Actual angle of view differs depending on camera/housing to use.
(*2) Depending on usage, original screw ring could be anchored due to salt build-up.  If you find any difficulties to remove original screw ring, do not proceed self modification and consult your purchasing dealer.

The UWL-95S lens can be made more angular by adapting the INON dome III with versions in optical glass and polycarbonate, achieving coverage of up to 141° underwater. (This accessory is sold separately).

・Outer diameter                                         φ90.0 mm/3.5 in

・Length                                                    48.2 mm/1.9 in

・Weight                                                   [air] 605 g/21.3 oz  [underwater] approx.388 g/13.7 oz

・Mount system                                          XD Mount

・Depth rating                                            60 m/196.9 ft

・Material                                                   Corrosion-resistant aluminum alloy

・Surface finishing                                       Rigid black alumite

・Glass/Coating                                          Optical glass/both side anti-reflection coating

・Lens construction/magnification                  3 groups 4 elements/0.63 (aforcal)

・Max. view angle (*1)                                [underwater] approx. 95°, [air] 159.0°
