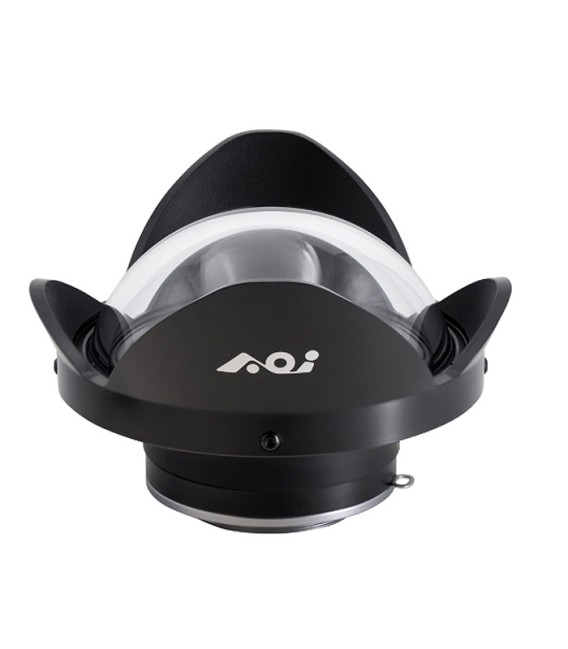

AOI Wide Lens UWL-04A

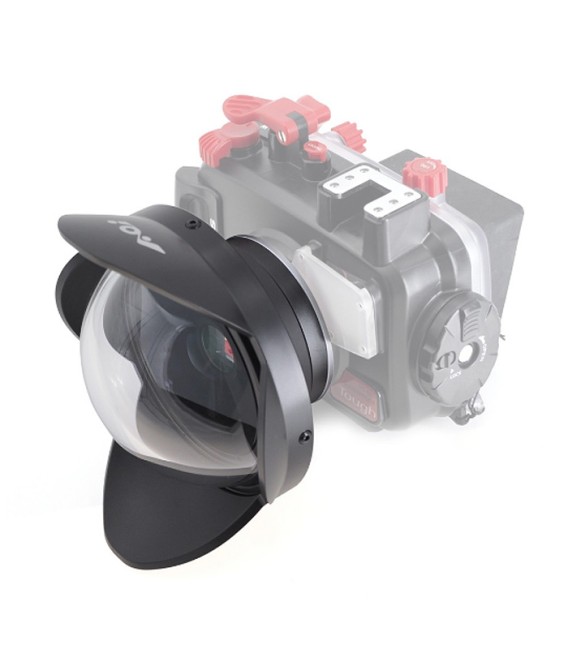

The Fantasea UWL-04A Wide Angle Lens is a Super Sharp Wide Angle conversion lens that attaches to the housing lens port thread and can be installed and removed during the dive.

It was designed for cameras featuring a 28mm lens (35mm equiv.) or any higher focal range.

It is perfect for photographing seascapes, divers, ship wrecks and schools of fish without moving further away from the subject, thereby still taking full advantage of water clarity and artificial lighting.

It also allows focusing on short distances, making it perfect for CFWA (Close Focus Wide Angle) photography.

Compatibility

The UWL-04A is compatible with most all cameras featuring a 28mm lens (or a higher focal range). It can also be used with some cameras featuring a wider lens by zooming in to avoid a vignette.

The UWL-04A features a 52mm thread and can be mounted directly on lens ports with a 52mm thread or on lens ports featuring a different thread, by using a compatible adaptor. The QRS-01-AD3 Bayonet adaptor is included in the box and allows mounting the lens on QRS 01 bayonet system. Lens compatible as well with Fantasea Bayonet System.

Specifications

• 52mm thread mount
• Bezel / Barrel material: Aluminum alloy with black hard anodize, ABS
• Lens construction: 5 groups and 5 elements
• Lens coating: Hard coating on the Polycarbonate dome lens + Multi layer AR coating on all glass lenses
• Depth rated to 60 meters
• Magnification: 0.42X
• Angle of View: Underwater 160°(with 28mm Lens)
• Focus distance: 0mm from the dome
•  Weight (on land): 725g
• Weight (underwater): 210g
• Dimensions (diameter x height): 157mm (D) X92mm (H)
• Included in package: Bayonet adaptor, Neoprene dome cover, rear lens cap, secure line and lens padded carrying case
