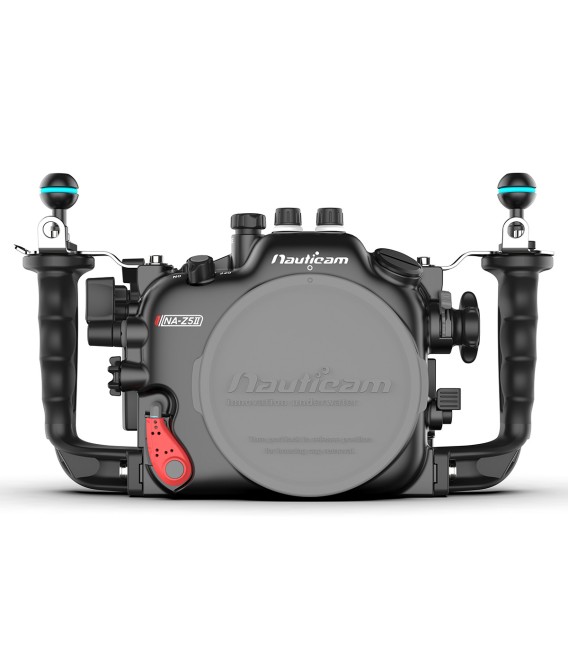

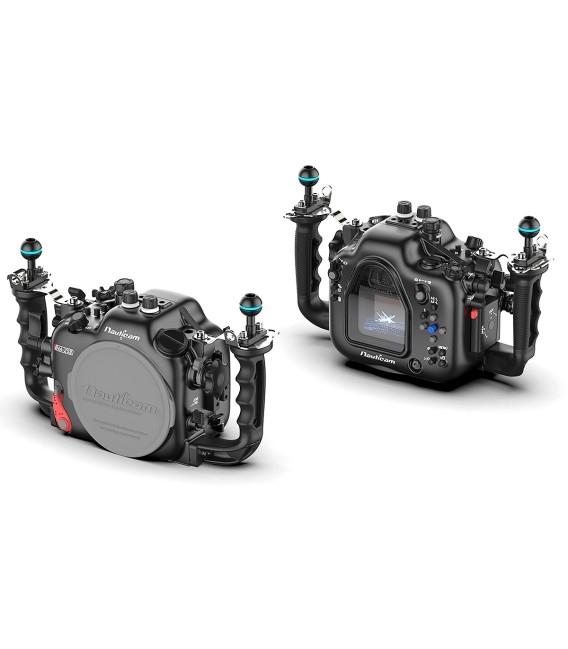

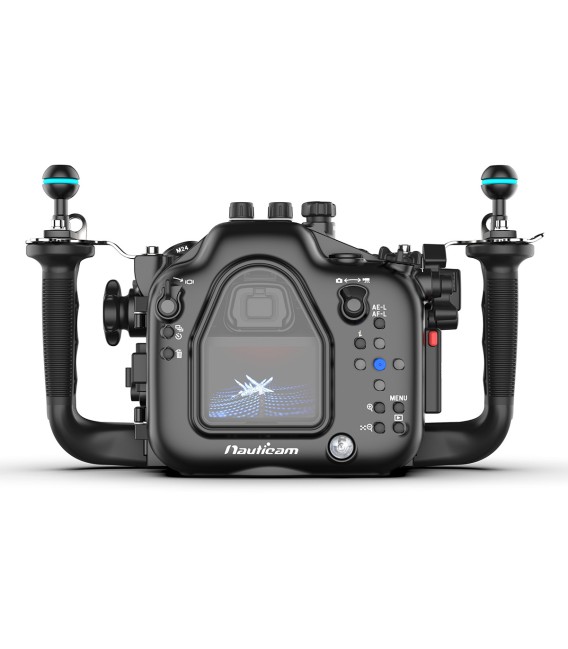

Nikon Z5II NA-Z5II Nauticam

The NA-Z5II underwater housing upholds Nauticam’s dedication to innovation. Essential controls are conveniently accessible via ergonomic handles, facilitating an efficient setup that optimizes time spent in the water and minimizes time spent on rig maintenance. The N120 port system accommodates both Nikon Z Mount and legacy F Mount lenses via the FTZ/FTZ II adapter. Nauticam’s extensive range of ports and in-house corrective optics complement the NA-Z5II’s capabilities. When equipped with an accessory vacuum valve, the integrated vacuum check and leak detection system provides continuous updates on the housing’s watertight integrity. A vacuum system reset switch, located beneath the tray, eliminates the necessity to open the back of the housing during lens or port changes. The optional NA-Z5II LCD window for Full Frame viewfinders enables the utilization of Nauticam Full Frame viewfinders for enhanced viewing. The NA-Z5II is capable of supporting additional mounting with 1/4-20, M10, and M5 holes on the top for monitors and lighting, while the bottom accepts the 25218 Tripod Mounting Ball set. The NA-Z5II is ready for customization to meet your specific shooting requirements.

Nikon F-Mount & Z-Mount Lens Support

The Nauticam NA-Z5II is designed to accomodate both Z-Mount and F-Mount lenses.  With the new compact design of the NA-Z5II housing, there are newly released zoom and focus gears that will drive off the main zoom/focus knob on the housing.  There is also the 22225 N120 FTZ Adapter ER 25 with Knob which will allow you to use previous generation Z-Mount zoom and focus gear along with F-Mount lenses and their corresponding gears.  For complete compatibility details, you can view the NA-Z6III/Z5II Port Chart.

PREMIUM PROFESSIONAL OPTICS

Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.

Mission Control

In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.

Integrated Vacuum Check & Leak Detection Electronics

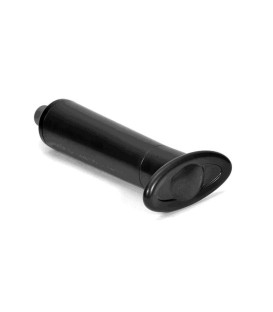

The Nauticam vacuum check and leak detection system is shipped with NA-Z5II as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Flash Triggering

Flash triggering on the Nikon Z5Il in the NA-Z5II is available via either optical or electrical trigging.

Optical Triggering

• 26350 Flash Trigger for Nikon (Compatible with NA-D5/D500/D850)
• 26352 Manual Flash trigger for Nikon II (for Z6III)
• 26601 HSS TTL Converter for Nikon (NA-Z8/Z9/Z6III)

Electrical Triggering

• 25013 M14 Nikonos 5-Pin bulkhead with hotshoe connection and

  26326 M24-M16 Adaptor

Technical Specifications:
